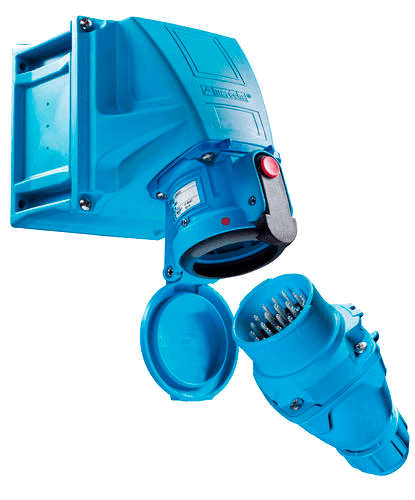

Marechal DSN24C plugs and sockets are compact and watertight and have a rated current of 16A, a maximum voltage of 415V and up to 24 contacts. DSN24C plugs and sockets are automatically IP66/IP67 when connected and the socket outlet itself is also watertight when the lid is closed.

DSN24C connectors form part of the Marechal range of signal and control plugs – multicontact connectors (5 to 37) with waterproof electrical sockets to IP66/IP67 and IK08 IK09 protection for electrical equipment against external mechanical impacts.

Marechal DSN24C Plugs – Technical Specification

Permitted Current Range 4-20mA / 16A
Rated Current Per Contact (Max) 16A
Total Current Carried ≤ 230A
Maximum Voltage 480V
Impulse Withstand Voltage 5kV / Pollution degree 3
Contact Resistance < 2mΩ
IP Protection Lid Closed IP66/IP67
IP Protection Connected Plug IP66/IP67
Salt, Fog Performance 200 hours minimum connected
Resistance To Fluids Motor oils, petrol, fats, detergents
Butt Contacts Female contacts: copper alloy silver plated / Male contacts: silver-nickel tips
Contact Protection Silvering
Load Cycles More than 5000 cycles
Vibration Frequency 5-1000Hz, 1g / (90 minutes on each critical frequency) according to IEC 6068-2-6
Shock Resistance IK08
Ambient Temperature -40ºC to +60ºC
Flexible Wiring (Min-Max) 1mm² – 2.5mm²
Wiring Terminals Crimping
Keying Positions 1

Marechal DSN24C Plugs – 24 Contacts 16A 415V IP66/67 Multi-Contact Connectors

Marechal Connectors – DSN24C

Marechal DN24C Plug Polarity Options

The DSN24C is available in GRP with 24 contacts for use with a maximum of 480V for both female socket outlets and male inlet plugs.

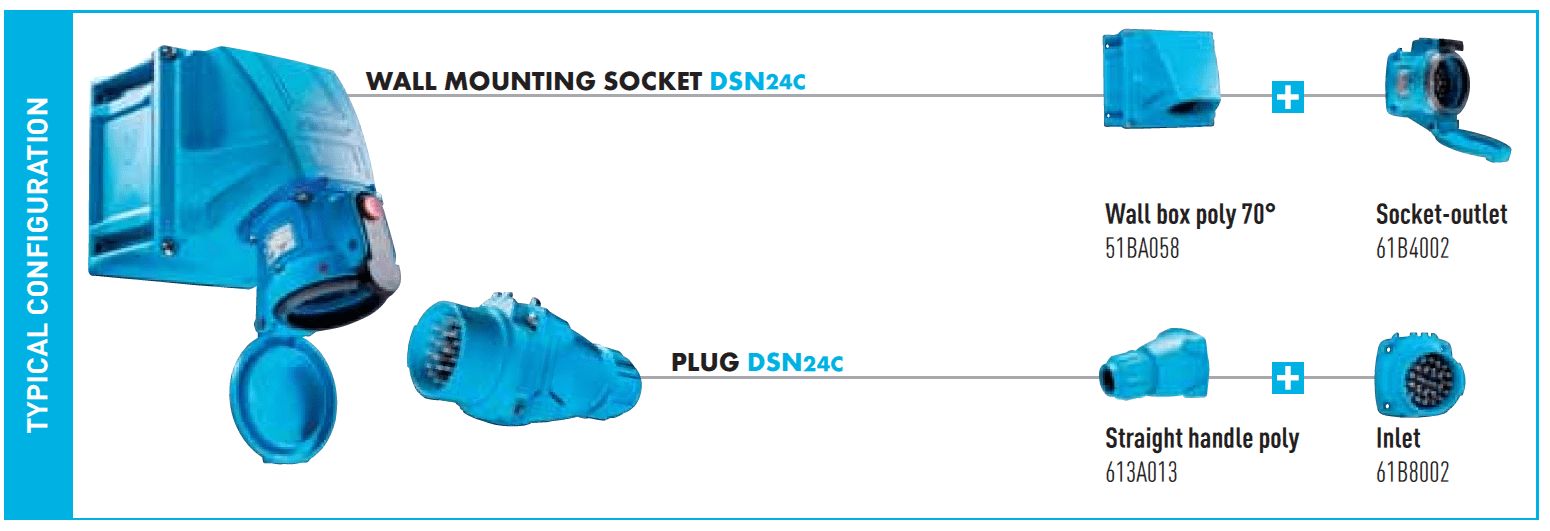

MARECHAL DSN24C CONNECTORS – SOCKET OUTLETS & INLET OPTIONS

Umax Contacts Marechal Socket Outlet (Female) DN24C Marechal Inlet (Male) DN24C
480V 24 contacts 61B4002 61B8002
Marechal DN24C Plugs & Power Distribution Systems

Marechal DN24C decontactors (plug and socket outlets with integral power switch) are supported by an ancillary range of wall mounting sockets, wall boxes, socket outlets, sleeves, inlets and handles.

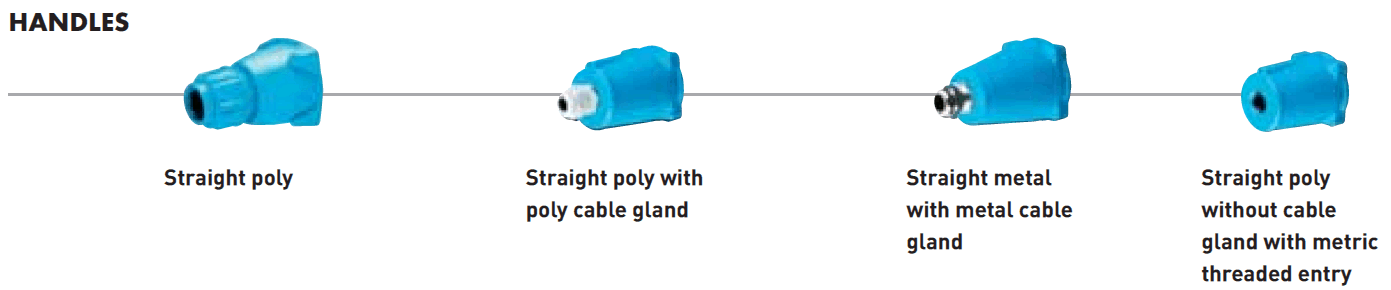

Marechal DN24C Handles

Handles

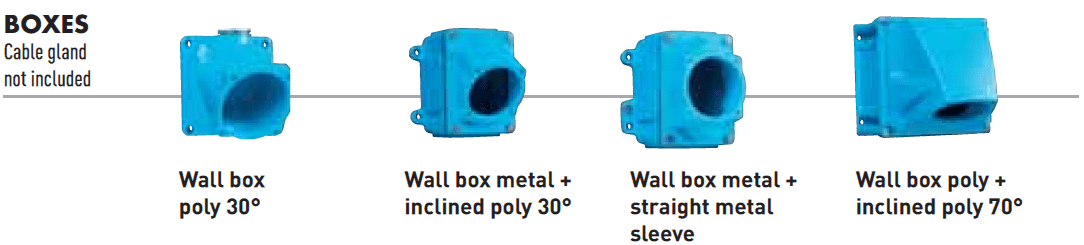

Marechal DN24C Boxes

Boxes

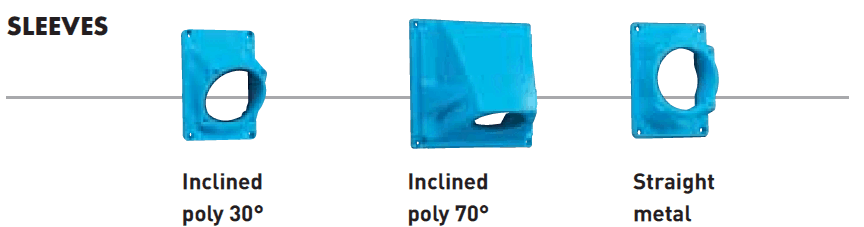

Marechal DN24C Sleeves

Sleeves

Marechal DN24C

Contact T&D To Discuss Technical Specifications For Marechal DN24C Plug-Sockets

Marechal DSN24C Plugs – Install & Operation Guide

Marechal DSN24C Plugs – Install & Operation Guide

Install & Operation Guidelines

  • Install the socket-outlet facing downwards to prevent ingress of foreign bodies and the latch at the top to ease operation. See Figure C1. The latch can also be on the side in case of risk of accumulation of foreign bodies inside the cover.
  • Install the appliance inlet as far as possible with the catch at the top to ease the operation of the connector. Connectors with lids opening at 180º may be used. See Figure C2. When this is not possible, install the inlet with the catch at the bottom. See Figure C3.
  • Remove an adequate length of cable outer sheath according to the accessory used. Ensure that the cable sheathing extends through the cord grip into the handle or box as required to achieve the intended sealing and cord gripping performance.
  • Strip the conductor insulation to the length indicated in Table T1.
  • Fully insert the stripped conductor and its wiring lug (for conductors below 2.5mm²) into the contact hole;
  • Crimp the contact with a KNIPEX crimping tool P/Nº 61CA500 or a GREENLEE crimping tool P/Nº 45505. Use the 4mm² footprint whatever the conductor cross-section. Perform a double crimping with a 90º rotation, in compliance with IEC 60352-2;
  • Conductors can also be soldered: using tin solder and a 50W soldering iron, heat the terminal for approximately 30 seconds while heating, apply the soldering wire into the hole at the bottom of the terminal and let it penetrate by capillarity action. Let it cool down without any mechanical stress;
  • Before wiring, equip each conductor with a heat-shrink sleeve or an insulating sleeve (bag of 13 pieces P/Nº 61CA083). Sleeving pliers (P/Nº 61CA400) are required to slip the insulating sleeve over the conductor:
  • Slide the insulating sleeve up to the shoulder of the contact.
  • Slide the heat-shrink sleeve up to the shoulder of the contact. With a heat gun, apply heat evenly 360º around the sleeve until it shrinks around the terminal and wire.

Figure F1:

A: Insulating sleeve or heat-shrink sleeve
B: Conductor
C: Retaining clip
D: Contact

If necessary, crimp the supplied Earth conductor in the Earth contact.

Contact Assembly / Disassembly – See Figure F2

Once wired, contacts must be inserted through through the rear of the interior moulding (1). Push each contact fully home. Check its proper engagement by a light pull  (2). Contacts can be removed with the supplied tool: push the contact towards the front (3) and insert the tool through the front (4). Push the tool until the stop (5)

Figure F2:

D: Contact
E: Insulator
F: Tool

Self-Ejecting Devices

Tension Cord

The release of the latch is performed by a tension cord. One end of this cord must be attached either to the flexible cable or to a suitable fixed point of the installation. The other end is attached to the latch release mechanism.

Latch Release Mechanism

This mechanism comes in two different types:

  • Ejecting Connector: The retaining latch is directly activated by the tension cord in case of traction (Figure E1)
  • Ejecting Plug: A shark-fin mechanism (Figure E2) is assembled on the plug. It release the retaining latch of the socket-outlet in case of traction on the tension cord.

Eyelet

Handles are equipped with an eyelet. This eyelet allows an optimal pulling angle of the tension cord on the latch release mechanism. See Figure E3.

Assembly

The end of the tension cord that must be attached either to the flexible cable or to a suitable fixed point of the installation is equipped with a loop. A crimping ferrule is supplied to loop the other end of the cord, once it has been passed through the handle eyelet, the latch release mechanism, and cut to the adequate length. See Figure E3.

Cable Tie

A cable tie is supplied, to attach the loop of the tension cord onto the flexible cable.

Keyings

When 2 contacts are not used according to Table T2, nine keyings can be achieved by blanking two contact holes – socket-outlet/connector side – with two caps (supplied).

Sealing Rings

Insert a sealing ring between the device and its rear accessory (handle, angle, etc). The two protrusions of the rings must be positioned on the latch side for the socket-outlet/connector and on the catch side for the plug/appliance inlet. On self-ejecting plugs, the colour-coded ring is replaced by a flat gasket.

Operation

  • The socket-outlet is shielded by a protective lid held in the closed position by a latch. Depress the latch to release the lid. See Figure F3.
  • To connect, align the red marks on the housings. Insert the device and turn clockwise until the stop. The device is in the rest position, circuit open.
  • Push the device fully home until latched.
  • To disconnect, depress the latch. The device returns to its rest position.
  • Turn the device in the opposite direction to remove it. Shut the lid.
