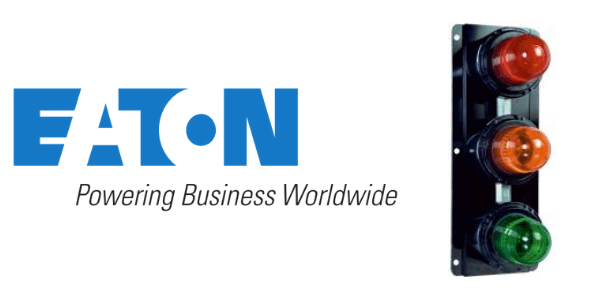

MEDC SL15 | Hazardous Area Status Light | ATEX Status Lights Zone 1 & Zone 2 Weatherproof Ex d

Eaton MEDC SL15 are ATEX status lights have been designed for use in potentially explosive atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous areas. The hazardous area status lights are suitable for use offshore or onshore, where a high degree of corrosion resistance is required.

The housings are manufactured from a UV stable, glass reinforced polyester (GRP) fitted to a stainless steel mounting plate for ease of installation. Stainless steel fixings are also used, ensuring a corrosion free product.

The weatherproof ATEX status light, with explosion protection concept Ex d, can be painted to customers specification and supplied with identification labels. The lights are also close-coupled and pre-wired to customer’s requirements.

Available as xenon and filament ATEX beacons – the SL15 range of hazardous area status lights are manufactured in corrosion free GRP.

The enclosures are suitable for use offshore or onshore where light weight combined with corrosion resistance is required and can be ordered from Thorne & Derrick with MEDC call points for integration into fire detection systems in the explosive atmosphere industries.

ATEX status lights can be supplied as 2, 3 or 4 way in any combination of xenon beacon, LED beacon or filament lamp.

Contact Thorne & Derrick for customer service, competitive quotations and availability from stock for the MEDC range of status lights, including MEDC SL15, for safe use in hazardous areas with explosive atmospheres.

ORDERING DETAILS

MEDC SL15 | EX D STATUS LAMP

The MEDC SL15 hazardous area status lamp is available in a choice of variants with 2, 3, 4 and 5 way options.

• 2 way baseplate, interconnection & paint finish-close coupled
• 3 way baseplate, interconnection & paint finish-close coupled
• 4 way baseplate, interconnection & paint finish-close coupled

---

MEDC

The MEDC range of sounders and beacons from the Crouse Hinds series of Signalling & Alarms – a comprehensive range of Explosion Proof call points are also available with ATEX & IECEx certification and explosion protection to both Ex d (flameproof) and Ex ia (Intrinsically Safe) applications.

ATEX status lights Zone 1 & Zone 2

Features

• Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) Hazardous Areas
• UL listed for USA and Canada
  • – Hazardous locations:
    Class I, Div. 2, Groups A, B, C & D
    Class II, Div. 2, Groups F & G
    Class I, Zone 1, AExd IIC T3/T4/T5/T6
• ATEX Approved
• II 2GD
• IECEx Approved Gb, Db
• IP66 and 67, NEMA 4X & 6
• Certified temperature:
  • -55°C to +70°C*
  • -67°F to +158°F
• Corrosion free GRP
• Filament 60W
• Various flash rates available for LED/xenon units.
• Various lens colours.
• Optional cast or wire lens guard

*Model dependent

Eaton MEDC SL15 – Current Consumption per way (A)

	dc		ac (50Hz*)
Voltage	24	48	110	120	230	240	254
5J Xenon	0.33	0.15	0.12	0.13	0.07	0.07	0.07
10J Xenon	0.65	0.32	0.19	0.21	0.11	0.12	0.12
15J Xenon	0.9	0.43	0.22	0.25	0.14	0.16	0.14
Filament – 60W	2.5	1.25	0.55	0.5	0.26	0.25	–
LED – Steady	0.22	0.12	0.07	0.07	0.04	0.04	0.04
LED – Flashing	0.42	0.22	0.09	0.09	0.05	0.05	0.05

MEDC SL15 Hazardous Area Status Lights

Technical Specification

Should you require any further information to enable the selection or specification of explosion proof status lights, for use in potentially explosive atmospheres, please contact us.

Hazardous Area Certification
ATEX Ex d	Cert. no. Baseefa 04ATEX0009X Certified to: EN60079-0, EN60079-1, EN60079-31, (EN60079-28 LED only) Xenon: Ex II 2GD Ex db IIC T4/T5/T6 Gb, Ex tb IIIC T85°C/T100°C/T135°C Db LED: Ex II 2GD Ex db op is IIC T5/T6 Gb, Ex tb op is IIIC T85°C/T100°C Db Filament: Ex II 2GD Ex db IIC T3/T4 Gb, Ex tb IIIC T135°C/T200°C Db
IECEx Ex d	Cert. no. IECEx BAS 05.0048X Certified to: IEC60079-0, IEC60079-1, IEC60079-31 (IEC60079-28 LED only) Xenon: Ex db IIC T4/T5/T6 Gb. Ex tb IIIC T85°C/T100°C/T135°C Db LED: Ex db op is IIC T4/T5/T6 Gb. Ex tb op is IIIC T85°C/T100°C/T135°C Db Filament: Ex db IIC T3/T4 Gb. Ex tb IIIC T135°C/T200°C Db
Specifications
Material	Body: glass reinforced polyester Lens: glass Back plate & fixings: stainless steel 316 Wire guard (optional): stainless steel wire Cast guard (optional): aluminium LM25M
Finish	Natural black or painted to customer specification
Voltage	24, 48V d.c. – 110, 120, 230, 240, 254V a.c.
Xenon	Tube energy: 5, 10 or 15 joules Tube life: >1×106 flashes Flash rate: 60, 80 or 120 fpm Certified temp: 15J -55°C to +70°C (T4), -55°C to +40°C (T5) 10J: -55°C to +70°C (T4), -55°C to +55°C (T5), -55°C to +40°C (T6) 5J: -55°C to +70°C (T5), -55°C to +55°C (T6)
Filament	Lamp type: 60W GLS filament Lamp holder: E27 as standard Certified temp: 60W -55ºC to +55ºC (T4) -55ºC to +70ºC (T3)
LED	Certified temp: -55ºC to +55ºC (T6) -55ºC to +70ºC (T5) LED life: up to 54,000 hours

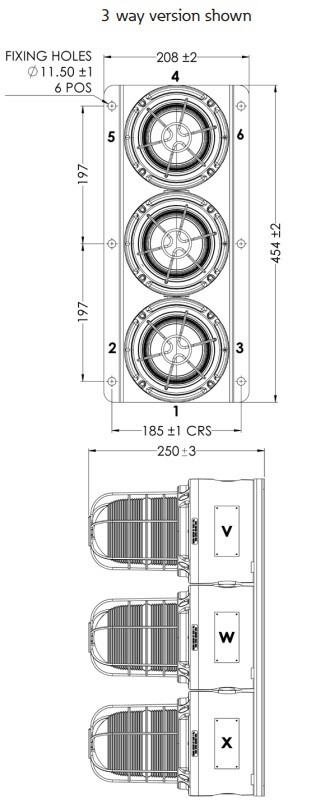

Weight	2-Way: 6.5Kg, 3-Way: 9.8Kg, 4-Way: 13.1Kg
Ingress protection	IP66 & 67
Entries	Available with up to 2 x M20 or 2 x M25 entries in either bottom or top of unit. Entries in both bottom and top of unit by special order only
Terminals	Suitable for up to 2.5sqmm cable max
Labels	Tag/duty label option

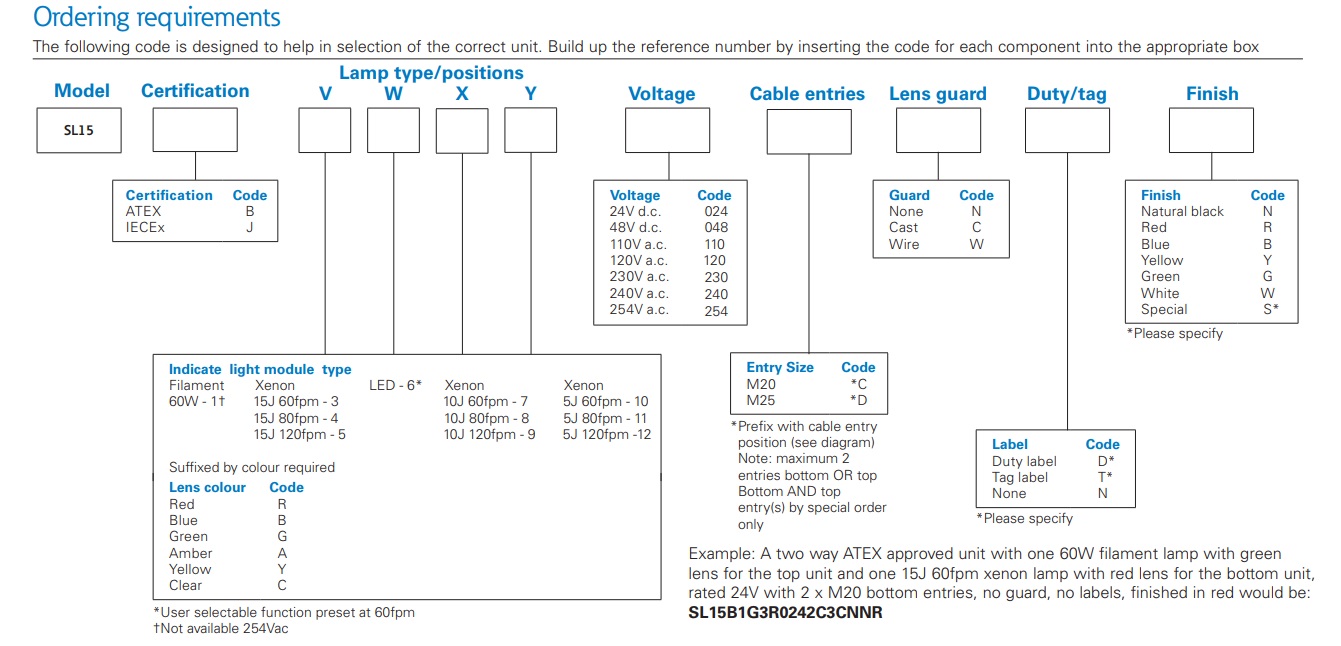

EATON MEDC sl15 – ORDERING REQUIREMENTS
