Non-Hazardous Area Industrial Polycarbonate Enclosures & Junction Boxes

Non-Hazardous Area Industrial Polycarbonate Enclosures & Junction Boxes

Abtech ZP polycarbonate electrical enclosures and junction boxes and are available in 19 sizes manufactured from either ABS plastic or polycarbonate material with an additional option of a clear polycarbonate lid available.

The ZP range is an extremely versatile enclosure with many uses and applications including junction boxes, instrument enclosures and a multitude of OEM applications. The addition of the clear lid makes the ZP range particularly suitable for housing instruments and indicators where a visual indication is required without the need for opening the enclosure.

The Abtech ZP non hazardous area enclosure shares the labyrinth seal arrangement which is common to both the ZAG and BPG ranges and can offer protection up to IP65.

ZP enclosures and junction boxes can be machined, drilled and tapped with various thread forms and can also be silk screen printed and can be moulded in almost any colour.

Industrial Polycarbonate Enclosures & Junction Boxes

Abtech ZP Features

• Wide Operating Temperature (Polycarbonate / ABS -40° Celsius to +120° Celsius / -40º Celsius to +65ºC) (-94°F to + 248°F / -94ºF to +149ºF)
• IP65 Ingress Protection
• Available in Polycarbonate & ABS
• Optional Transparent Lid
• Can Be Moulded To Any Colour (Subject to Minimum Quantities)
• Can Be Easily Machined and Silk Screen Printed
• Ideal for Instrument Housings & Junction Boxes

Electrical Enclosure Junction Box Accessories

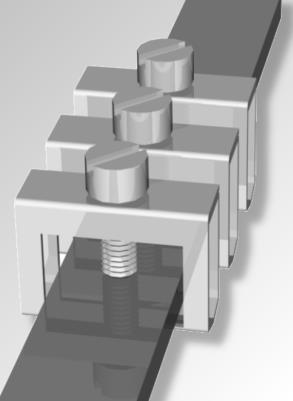

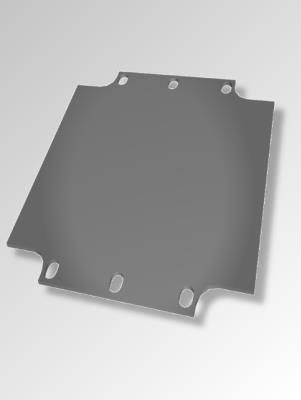

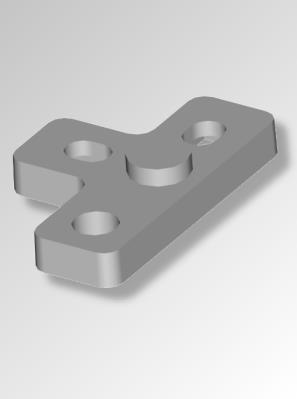

Component Mounting Plate (Tufnol as standard, steel an option)	Internal Earthing Bar (Can be fitted with clamps)	External Mounting Feet (Stainless Steel 316)

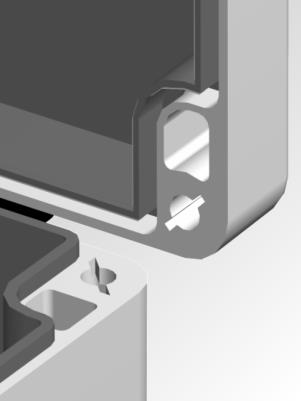

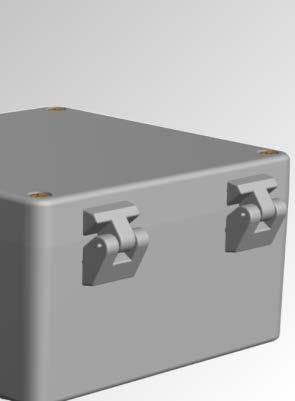

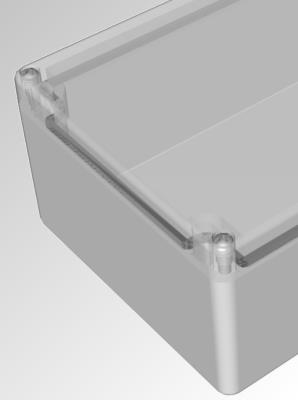

RFI Shielding (Metalised spray coating to interior)	External Hinges	Transparent Lid (Moulded in polycarbonate)

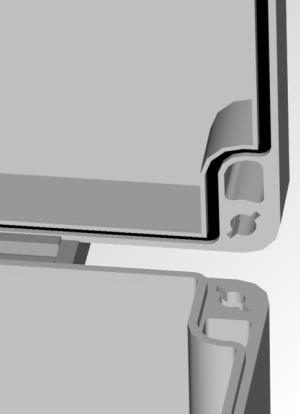

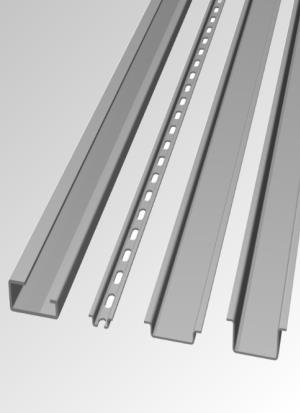

Lid Seal Gasket	1/4 Turn or Threaded Lid Fixing Screws	DIN Standard Mounting Rail (TS 15, TS 32 or TS 35)

Hazardous Area Certification

Hazardous Area Enclosures: Intrinsically Safe Junction Boxes

T&D, The Explosive Atmosphere Experts, provide a single-source capability for the most extensive range of Electrical, Mechanical, Process & Instrumentation Equipment suitable for hazardous area locations.

• Zone 1 Hazardous Area Lighting
• Zone 2 Hazardous Area Lighting
• Enclosures, Motor Starters & Isolators

Hazardous Area Electrical Enclosures & Junction Boxes

Abtech ZP Junction Boxes Selection Table

If in doubt, please contact T&D for specification support and selection advice about junction boxes and enclosures.

Earthing

Abtech ZP enclosures are effectively earthed using an internal/external earth stud fitted as standard which can be connected to the terminal mounting rail or component mounting rail. Earth studs can be fitted to the door and gland plates and rail mounted earth terminals or proprietary earth bars can be installed within the electrical enclosures.

With international hazardous area classifications, including ATEX, Abtech SX stainless steel junction boxes and enclosures are suitable for onshore and offshore installation in both Zone 1 & Zone 2 hazardous area locations. T&D provide pre-assembled terminal enclosures for use as hazardous area lighting, power, heat tracing and instrument junction boxes with increased safety, intrinsically safe and flameproof explosion protection methods – we can custom supply high voltage enclosures for 3.3kV, 6.6kV, 11kV and 33kV networks.

Data Sheets

• Non-Hazardous Area Industrial Polycarbonate Enclosures & Junction Boxes
  Download
