Hazardous Area Push Control Station – ATEX Certified

Technor CP/EFDCN (Aluminium)

ATEX

ATEX Zone 2 Control Stations

  • Control Station Material: Aluminium with low content of copper
  • IP Rating: IP66/IP67
  • Ambient Temperature Range: -50°C to +60°C (ATEX), -60°C to +60°C (IECEx)
  • Approvals: Certified 03ATEX0009
    IECEx BKI 15.0002
    TR CU
  • Surface Treatment: Painted by green colour polyurethane painting cycle RAL6003 (other colour available upon request)
  • Thread: Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125
  • Standard Certificate Label: Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory
  • Accessories Available: Internal anticondensate painting
    Traffolyte/Stainless steel certificate label
    Hot deep galvanized steel or Stainless Steel AISI316 stand / canopy.

ATEX Certification Code

  • II 2 GD
  • Ex d IIC T(*) Gb
  • Ex t IIIC T(*) Db IP66
  • * T6/T85°C, T5/T100°C, T4/T135°C

Hazardous area control station is designed to meet the requirements for use in industrial plants for indoor and outdoor applications and can be equipped with Ex d IIC certified standard and emergency push buttons, rotating switches, signalling lamps and measurement instruments.

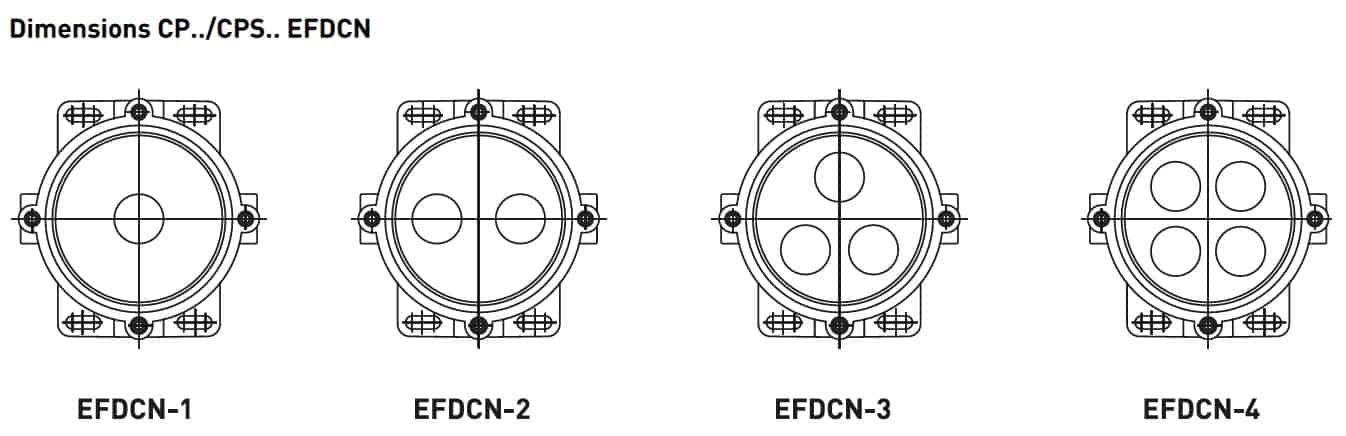

Technor CP/EFDCN Push Button Control Station - Dimensions

Technor CP/EFDCN Push Button Control Station – Dimensions

Technor CP-EFDCN Push Button Control Station - Dimensions

Technor CP-EFDCN Push Button Control Station - Dimensions
