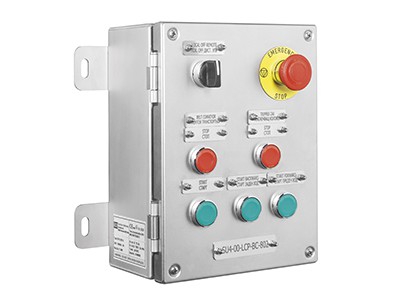

Push Button Control Station (Stainless Steel) Hazardous Area Zone 2 ATEX – Technor EFXE

Push Button Control Station (Stainless Steel) Hazardous Area Zone 2 ATEX - Technor EFXE

Push Button Control Station (Stainless Steel) Hazardous Area Zone 2 ATEX – Technor EFXE

Hazardous Area Push Control Station – ATEX Certified

Technor EFXE (Stainless Steel)

ATEX

ATEX Zone 2 Control Stations

  • Control Station Material: Stainless steel AISI-316L
  • IP Rating: IP66/IP67
  • Ambient Temperature Range: -50°C to +60°C (ATEX), -50°C to +95°C (IECEx)
  • Approvals: IMQ 08 ATEX 028X
    IECEx IMQ 15.0002X
    TR CU
  • Surface Treatment: Acid treatment
  • Standard Certificate Label: Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory
  • Accessories Available: Electropolish treatment
    Side gland plates
    Hinges
    Drain/breather valve
    Traffolyte/Stinless steel certificate label
    Internal mounting plate
    Locking facility
    Passing through earth bolt

ATEX Certification Code

  • ATEX II 2 GD Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
  • ATEX Ex tb IIIC T(**) Db IP66/67
    ** T6/T85°C, T5/T100°C, T4/T135°C

Hazardous area control station is designed to meet the requirements for use on and offshore, in petrochemical and marine applications and can be equipped with Ex de certified standard and emergency push buttons, rotating switches, signalling lamps and measurement instruments.

Push Button Control Station (Stainless Steel) Hazardous Area Zone 2 ATEX - Technor EFXE

Technor EFXE Push Button Control Station – Dimensions

Technor Control Station Part NumberDimensions (mm)Weight (kg)
ABCDE
EFXE-27272702701303251774.5
EFXE-35353503501604052575.6
EFXE-13201372001301924
EFXE-20272002701302551777
EFXE-27352703501303252579.5
EFXE-355035050016040540713
EFXE-505050050016055540714.5
Push Button Control Station (Stainless Steel) Hazardous Area Zone 2 ATEX - Technor EFXE
Technor Control Station Part NumberEFXE-2727EFXE-3535EFXE-1320EFXE-2027EFXE-2735EFXE-3550EFXE-5050
ABABABABABABAB
M20 / 1/2″121224246101012121624363636
M25 / 3/4″1010141448810101414202020
M32 / 1″44121223344612181818
M40 / 1″ 1/444552334455777
M50 / 1″ 1/233441223344666
M63 / 2″33331223333555
M75 / 2″ 1/2333442
M80 / 3″224444
Cover Entries1625612204064
STOP / START CONTROL STATIONS

Hazardous area local control stations and push buttons including emergency stop, start and stop/start configurations are ATEX approved for Zone 1, Zone 2 and Zone 22 – specified to provide machinery control where explosion proof control stations are required for hazardous area industries including oil, gas, petrochem, food and offshore.
