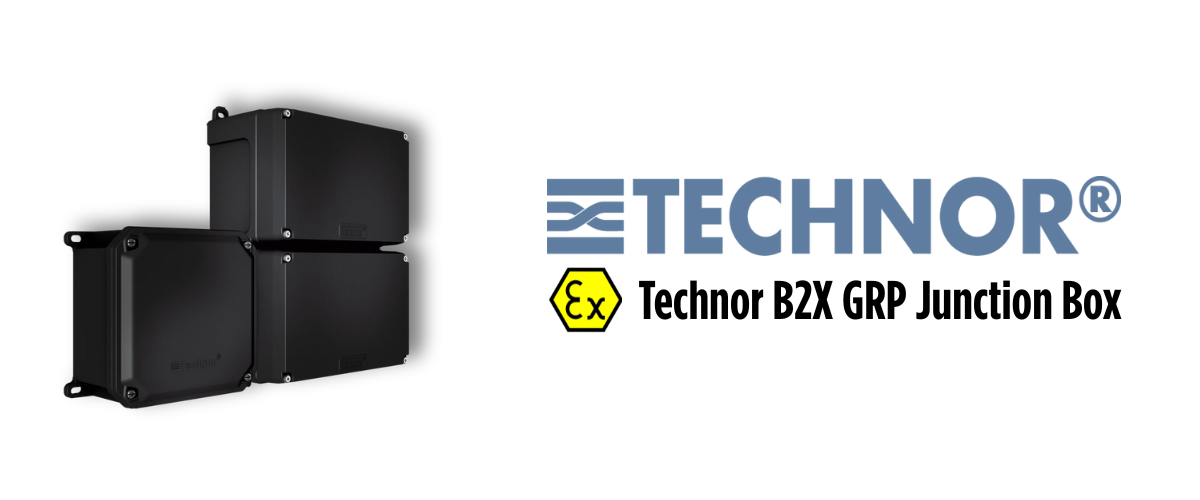

Technor B2X GRP is a hazardous area junction box which offers Ex-e IIC mode of protection and is suitable for use in hazardous areas, offshore applications and extreme site conditions.

Technor B2X GRP are classified to international hazardous area classifications with ATEX & IECex certification, with ingress protection IP66/67 and an operational ambient temperature range of -55°C to +60°C.

B2X GRP junction boxes are designed to host a wide range of terminals, multiple power sockets and disconnectors and have a compact design to allow them to be easily installed within small and hard access spaces.

Technor B2X GRP Junction Box – Technical Features

MaterialAluminium with low content of copper
IP RatingIP66/IP67
Ambient Temperature Range-55°C to +60°C
ApprovalsLCIE 16 ATEX 3057 X
IECEx LCIE 16.0046X
Standard Certificate LabelMade by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
Accessories Available Upon RequestMoulded hinges

Technor B2X Junction Box – GRP

Technor Part NumberDimensionsDrawing
ABCDEF
B2X1J13812691117105.5141A
B2X2J17816691157145.5181B



Increased Safety Hazardous Area Technor B2X GRP Junction Boxes - Dimensions

Increased Safety Hazardous Area Technor B2X GRP Junction Boxes – Dimensions

HAZARDOUS AREA CERTIFICATION & MARKING FOR ENCLOSURES

II 2 GD

  • Ex e / Ex ia or ib / Ex e ia or e ib IIC T(**) Gb
  • Ex tb IIIC T** °C Db IP66/67
  • ** T6/T80°C, T5/T95°C, T4/T105°C

under IEC Ex directive, junction boxes and enclosures are suitable for IIC group of gases/dusts only
