Abtech Nautilus submersible IP68 electrical enclosures and junction boxes are ATEX certified and suitable for Zone 1 and Zone 2 hazardous areas – combining Ex e hazardous area certification with an unparalleled level of ingress protection.

The Abtech Nautilus is primarily designed for submersible applications and is certified IP68 at 100 metres for five days to EN60529.

Manufactured from 316L stainless steel to provide the maximum level of environmental protection under harsh conditions using the same design as the SX enclosures. Additional sizes to the standard versions are available as long as each dimension falls within the range of the smallest to largest size.

Submersible & IP68 rated

Enclosures & Junction Boxes

Product Specification

Abtech Product Type  Submersible Terminal Enclosure
Ingress Protection IP68 to EN60529
100m for 5 days
50m for 14 days
Material 316L Stainless Steel enclosure with lifting eyes, 316 Stainless Steel hinges and fixings
Components Ex e certified terminals
Voltage Rating As per terminal
Cable Entry Variable entry combinations on any of the 4 sides
Mounting Via rear mounting lugs

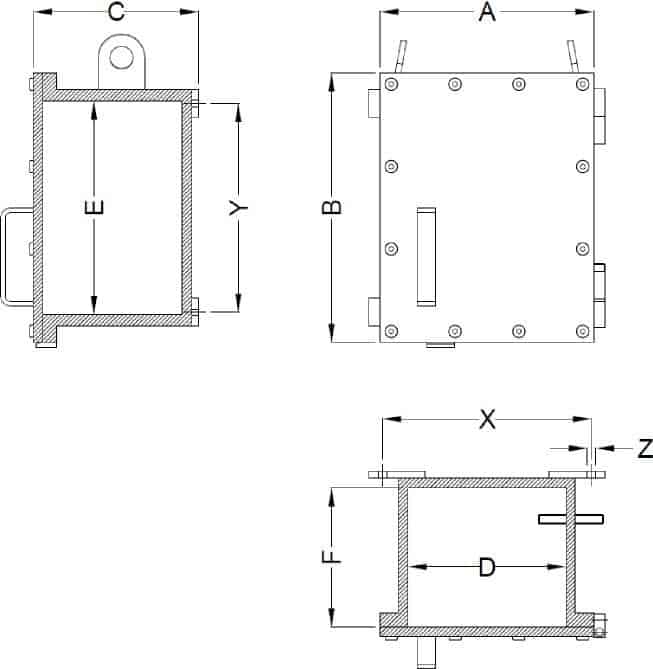

Abtech Nautilus Enclosure Dimensions

Abtech Nautilus Enclosure Dimensions

Abtech Nautilus stainless steel – Range

Abtech Nautilus
Model
EXTERNAL
Dimensions (mm)
INTERNAL
Dimensions (mm)
FIXING Dimensions (mm) Weight
(kg)
Max Power
Dissipation (W)
A B C D E F X Y Z Ga,Gb,Db Da
NAUT1 174 204 109 100 130 80 160 114 11 11 9.3 4.65
NAUT2 244 304 172 170 230 140 230 154 12.5 29 19 9.5
NAUT3 244 414 172 170 340 140 235 264 12.5 38 22 11
NAUT3A 294 414 172 220 340 140 289 264 12.5 44 29 14.5
NAUT4 284 474 222 210 400 190 291 324 12.5 53 32 16
NAUT5 324 424 222 250 350 190 327 274 12.5 54 32 16
NAUT6 390 470 233 310 390 190 393 320 12.5 86 36 18
NAUT7A 350 610 255 270 530 210 353 460 12.5 103 42 21
NAUT7B 450 510 255 370 430 210 453 360 12.5 108 42 21
NAUT8 480 570 255 400 490 210 483 420 12.5 124 44 22
NAUT9 330 710 255 250 630 210 333 560 12.5 113 44 22
NAUT10 420 770 295 340 690 250 423 620 12.5 155 50 25
NAUT11 660 1110 445 570 1020 390 655 960 17 468 68 34

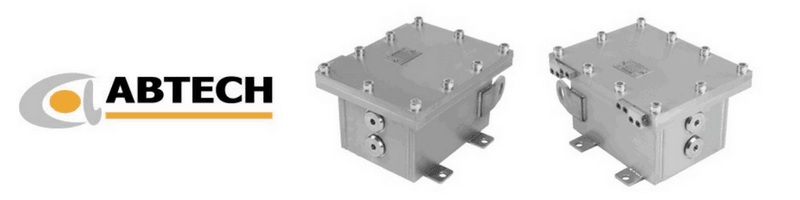

Submersible Enclosures & Junction Boxes IP68 - Abtech Nautilus

Submersible Enclosures & Junction Boxes IP68 – Abtech Nautilus

Hazardous Area Electrical Enclosures & Junction Boxes

Hazardous Area Electrical Enclosures & Junction Boxes

Hazardous Area Zone 1 Zone 2 Enclosure Junction Box

With international hazardous area classifications, including ATEX, Abtech Nautilus submersible & IP68 junction boxes and enclosures are suitable for onshore and offshore installation in both Zone 1 & Zone 2 hazardous area locations. T&D provide pre-assembled terminal enclosures for use as hazardous area lighting, power, heat tracing and instrument junction boxes with increased safety, intrinsically safe and flameproof explosion protection methods – we can custom supply high voltage enclosures for 3.3kV, 6.6kV, 11kV and 33kV networks.
