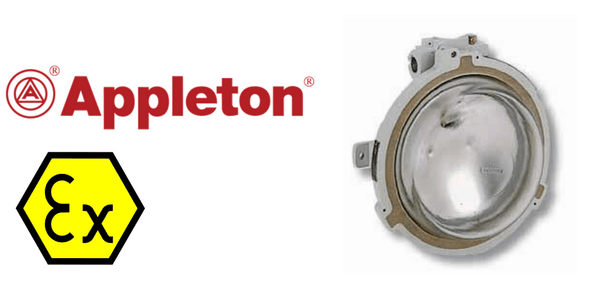

Appleton HBD is part of the Zone 1 and Zone 2 (21/22) hazardous area bullkhead ATEX lighting range are available in a round or oval design and have a flameproof rating.

The ATEX certified bulkhead luminaires are ideal for the illumination of stairways, small areas and emergency exits.

Zone 1 and Zone 2 (21/22) Hazardous Area Bulkhead Lighting ATEX

Features & Benefits

  • HBDR
    — Lamps (not supplied)
    — Incandescent 200 W maximum
    — Compact Fluorescent 23 W maximum
    — Mixed 160 W maximum
    — Threaded flameproof joint.
    — Operates on ceiling and wall.
  • HBRO
    — Incandescent 60 W to 100 W maximum
    — Compact fluorescent 15 W maximum
    — Operates in any position.
    — For incandescent 60 W and 100 W a high temperature cable 106 °C (223 °F) is required.
  • Lamps are not supplied.
  • E27 lampholder.
  • Fixing by two integrated brackets.
  • Connection to lampholder via two terminals 2.5 mm2 (0.004 in2).
  • Internal earth two terminals 2.5 mm2 (0.004 in2).
  • External earth one 4 mm2 (0.006 in2).
  • 3 x M20 threaded entries in “T” formation.
  • Luminaire supplied with two blanking plugs M20.
Appleton HBD

Appleton HBD

Zone 1 and Zone 2 (21/22) Hazardous Area Bulkhead Lighting ATEX

Appleton HBD

Technical Data

LampWeight (kg)Volume dm³Appleton Catalog NumberOld Catalog NumberPack
HBD Round7.523.4HBDR0947541
HBD Oval39HBD00947091



ATEX/IECEx Certifications for hazardous areas

ATEX Bulkhead

ATEX Bulkhead

  • ATEX / IECEx:
    – Zone 1 & 2 – 21 & 22
    EX Logo II 2 GD
    – IP66 – IK08

GOST also available.

Zone 1 Zone 2 (21-22) ATEX Bulkhead Luminaires Flameproof – Appleton HBD

Appleton HBD – Hazardous Area Bulkhead – Dimensions
