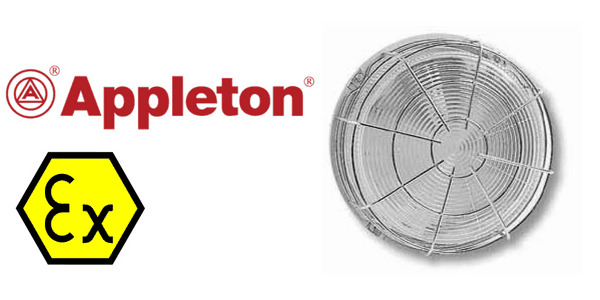

Appleton HBE is part of the Zone 1 Zone 2 (21/22) ATEX bulkhead luminaries lighting range that are rated for Increased Safety specifically designed for use in in Zone 1, 2, 21 and 22 hazardous locations.

The Appleton HBE is compact in design making it ideal for lighting stairways, small areas and emergency exits. The ATEX certified bulkhead luminaire has a grey painted aluminum alloy body with glass diffuser, silicone sealing gasket, zinc plated steel guard and polyamide cable gland and blanking plug.

Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires Increased Safety – Appleton HBE

Features & Benefits

  • For incandescent lamps 60 W to 150 W maximum, mixed lamp 100 W maximum. Lamps not supplied
  • E27 lampholder for hazardous area lighting
  • Screw locking mechanism
  • Luminaire operates in all positions
  • Connection to lampholder via two 2 x 2.5 mm2 (0.003 x 0.004 in2) terminals
  • Internal earth two terminals 2 x 2.5 mm2 (0.003 x 0.004 in2)
  • External earth 1 x 4 mm2 (0.002 x 0.006 in2)
  • Three M20 entries in “T” formation. Supplied with one M20 cable gland [6.5 to 14.5 mm (0.26 to 0.57 in) diameter] and two M20 blanking plugs
Increased Safety Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires - Appleton HBE

Increased Safety Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires – Appleton HBE

Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires Increased Safety

Appleton HBE

Technical Data

Hazardous Area Gas Dust
Certified TypeHBe150
Zones1-221-22
Conforming to ATEX 94/9/CECE 0081 II 2 GCE 0081 II2 D
Symbol of protection ATEXEx e IIEx tD A21
Symbol of protection IEC
T ratingSee table belowN/A
Surface TemperatureN/AT102°C to T137°C
Ambient Temperature-40°C to +50°C
CE Declaration of Conformity50244
ATEX CertificateLCIE 02 ATEX 6228X
IEC CertificateLCIE Ex 02.023X
Other Certifications
Index of protection
solid & liquid)
IP65
Impact resistance (shock)

Increased Safety Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires

Appleton HBE

Temperature Rating (Gas) & Surface Temperature (Dust) Chart

Power and Type DustGasOperating Positions
Surface T° for Ta = +50°C For Ta = +40°C For Ta = +50°C
 T RatingT° at Cable Entry T RatingT° at Cable
Entry
60 W Incandescent102°CT2N/AT2N/AAny Position
T3N/AT3N/APosition 1
T4N/AT4N/APosition 2
75 W Incandescent107°CT2N/AT2N/AAny Position
T3N/AT3N/APosition 1
T4N/AT4N/APosition 2
100 W Incandescent117°CT2N/AT283°CAny Position
T3N/AT383°CPosition 1
T3N/AT3N/APosition 2
100 W Mixed137°CT190°CT1100°CAny Position
T390°CT2100°CPosition 1
T3N/AT3N/APosition 2
150 W Incandescent130°CT282ºCT292ºCAny Position
T382ºCT392ºCPosition 1
T3N/AT3N/APosition 2

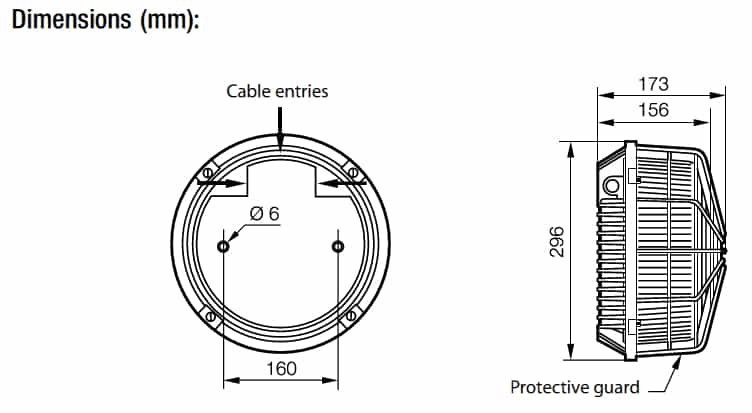

Zone 1 Zone 2 (21-22) ATEX Bulkhead Luminaires Increased Safety – Appleton HBE Dimensions

Zone 1 Zone 2 (21-22) ATEX Bulkhead Luminaires Increased Safety – Appleton HBE Dimensions

ATEX Certifications for hazardous areas

ATEX Bulkhead Luminaires

ATEX Bulkhead Luminaires

  • ATEX / IEC:
    – Zone 1 and 2 – 21 and 22
    Ex Logo II 2 GD
    – IP65
INMETRO

Certificate: BVC 11.0494-X

EURASEC

EURASEC N° TC RU C-FR.ГБ05.B.00912

ATEX

LCIE 02 ATEX 6228X
