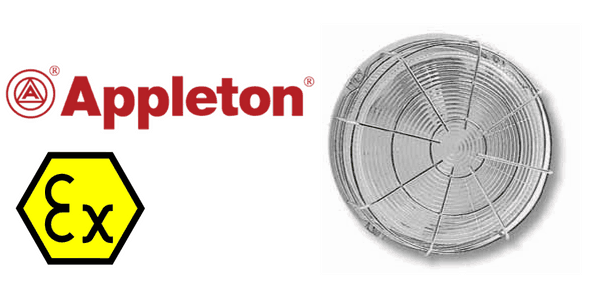

Appleton HBN is part of the Zone 22 Zone 2 ATEX bulkhead luminaries lighting range that have a flameproof rating and  specifically designed for lighting stairways, small areas and emergency exits in Zone 2 and 22 hazardous areas.

The ATEX certified hulkhead luminaire has a grey painted aluminum alloy body with glass diffuser, silicone sealing gasket, zinc plated steel guard and polyamide cable gland and blanking plug

Zone 2 Zone 22 ATEX Bulkhead Luminaires Flameproof – Appleton HBN

Features & Benefits

  • For incandescent lamps 60 W to 150 W maximum, mixed lamp 100 W maximum, mercury 80 W maximum (remote mercury ballast not supplied). Lamps not supplied
  • E27 lampholder
  • Screw locking mechanism
  • Luminaire operates in all positions
  • Connection to lampholder via two 2 x 2.5 mm2 (0.003 x 0.004 in2) terminals
  • Internal earth two terminals 2 x 2.5 mm2 (0.003 x 0.004 in2)
  • External earth 1 x 4 mm2 (0.002 x 0.006 in2)
  • Three M20 entries in “T” formation. Hazardous area lighting supplied with one M20 cable gland [6.5 to 14.5 mm (0.26 to 0.57 in) diameter] and two M20 blanking plugs
Flameproof Zone 2 Zone 22 ATEX Bulkhead Luminaires – Appleton HBN

Flameproof Zone 2 Zone 22 ATEX Bulkhead Luminaires – Appleton HBN

ZONE 2 ZONE 22 ATEX BULKHEAD LUMINAIRES FLAMEPROOF

Appleton HBN

Technical Data

Hazardous Area Gas Dust
Certified TypeHBn150
Zones222
Conforming to ATEX 94/9/CECE II 3 GCE II 3 D
Symbol of protection ATEXEx nR IIEx tD A22
Symbol of protection IEC
T ratingSee table belowN/A
Surface TemperatureN/AT102°C to T137°C
Ambient Temperature-20°C Ta +50°C
-20°C Ta +40°C (80 W mercury)
CE Declaration of Conformity50220
ATEX CertificateLCIE 03 ATEX 6167X
IEC CertificateLCIE Ex 03.026X
Other Certifications
Index of protection
solid & liquid)
IP65
Impact resistance (shock)

Flameproof ZONE 2 ZONE 22 ATEX BULKHEAD LUMINAIRES

Appleton HBN

Temperature Rating (Gas) & Surface Temperature (Dust) Chart

Power and Type DustGasT° at
Cable Input
Surface T° for Ta = +50°C For Ta = +40°C For Ta = +50°C
60 W
Incandescent
101°CT5T4
70 W Incandescent104°CT5T4
80 W
Mercury
131°C for Ta = +40°C)T3
100 W
Incandescent
114°CT4T483°C
100 W
Mixed
125°CT4T4100°C
150 W
Incandescent
120°CT4T492°C
Zone 2 Zone 22 ATEX Bulkhead Luminaires Flameproof – Appleton HBN Dimensions

Zone 2 Zone 22 ATEX Bulkhead Luminaires Flameproof – Appleton HBN Dimensions

ATEX Certifications for hazardous areas

ATEX Bulkhead Luminaires

ATEX Bulkhead Luminaires

  • ATEX / IEC:
    Ex Logo II 3 GD
    – IP65
    Zone 2 and 22
INMETRO

Certificate: BVC 11.0462-X

EURASEC

EURASEC N° TC RU C-FR.ГБ05.B.00912

ATEX

LCIE 03 ATEX 6167X
