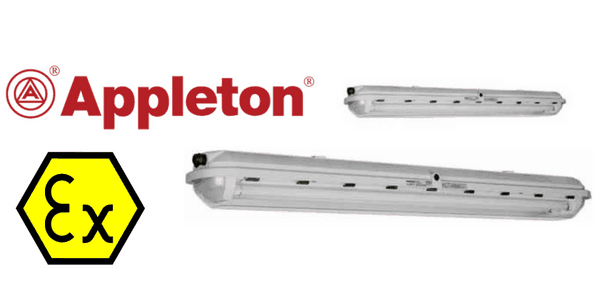

Appleton FE is part of the Zone 1 and Zone 2 (21/22) hazardous area fluorescent luminaire ATEX lighting range and have a nonmetallic construction which provides corrosion resistance and are suitable for use in areas subject to dirt, water and moisture – providing hazardous area lighting with savings on installation, maintenance and energy costs due to the compact and efficient design.

Typical applications of the ATEX certified fluorescent luminaire include oil refineries, petrochemical facilities, pulp and paper mills, food processing plants, oil refineries, warehouses, underground tunnels and general manufacturing facilities.

Zone 1 and Zone 2 (21/22) Hazardous Area Fluorescent Luminaire Lighting ATEX

Features & Benefits

  • Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens
  • High impact resistance housing (20 Joules – IK10) from -40 °C to +55 °C (-40 °F to +131 °F) ambient temperature and wind profile for use in extreme offshore and onshore environments
  • Latch assembly and elastomer gasket seals against water and dust ingress, IP66/67
  • Easily accessed for lighting maintenance using Allen key or straight blade screwdriver
  • Central opening with unique patented release system to prevent damage to the hazardous area lighting
  • Can be horizontally or vertically mounted
  • Hinged parabolic reflector for high lumen output efficiency
  • Vibration resistant spring loaded lampholders for bi-pin (G13) or mono-pin (Fa6) versions
  • Positive safety switch disconnects power to lamps and ballast to allow maintenance in hazardous locations
  • Electronic multi-tap ballast 110 to 254 Vac/Vdc +/- 10% 50/60 Hz, for global applications. High power factor electronic ballast (>0.95). EOL (End Of Life) protection in accordance to the latest EN/IEC 60079-7 standard
  • Two channel ballast prevents dark areas by allowing one lamp to remain lit if one fails
  • Ballast plug-in with Ex e connector for quick and error-free maintenance
  • Available in 3 hour or 90 minute emergency versions, including multi-tap ballast with built-in monthly self test. Test results through multi-colored LED
  • Ex e battery with plug-in connector
Zone 1 Zone 2 (21/22) Lighting - Hazardous Area Fluorescent Luminaires ATEX – Appleton FE

Appleton FE for use in hazardous locations defined by ATEX/IECEx

Zone 1 and Zone 2 (21/22) Hazardous Area FLuorescent Luminaire Lighting ATEX

Appleton FE

Technical Data

Surface / Suspension Mounting and Standard Wiring Version
Connection via 1 x 6 terminals
Capacity (Flexible / Solid): 4mm² / 6mm² (0.0062 in² / 0.0093 in²) – 10/8 AWG
Unarmoured Version – Bi-pin (G13)
Three M25 threaded entries, two at one end and one at opposite end, supplied with one M25 polyamide cable gland – 8 to 18.5mm (0.31 to 0.73″) – and two M25 polyamide plugs
Number of Lamps Power (W) Lamp Type Voltage (V) Weight kg (lbs) Volume dm³ (In³) Appleton Catalog Number
ATEX / IECEx NBR IEC
1 18 G13 110/254 5.5 (12.13) 32.3 (1971.07) FEB118BUSN NFEB118BUSN
2 18 G13 110/254 5.5 (12.13) 32.3 (1971.07) FEB218BUSN NFEB218BUSN
1 36 G13 110/254 7.9 (17.42) 54.2 (3307.49) FEB136BUSN NFEB136BUSN
2 36 G13 110/254 7.9 (17.42) 54.2 (3307.49) FEB236BUSN NFEB236BUSN
3 36 G13 110/254 9.9 (21.83) 54.2 (3307.49) FEB336BUSN NFEB336BUSN
1 58 G13 110/254 9.0 (19.84) 65.0 (3966.54) FEB158BUSN NFEB158BUSN
2 58 G13 110/254 9.0 (19.84) 65.0 (3966.54) FEB258BUSN NFEB258BUSN
3 58 G13 110/254 11.0 (24.30) 65.0 (3966.54) FEB358BUSN NFEB358BUSN
Armoured Version – Bi-pin (G13)
Two M20 threaded entries with brass earth continuity plate at one end and one M20 plugged clearance entry, supplied with two M20 polyamide plugs
Number of Lamps Power (W) Lamp Type Voltage (V) Weight kg (lbs) Volume dm³ (In³) Appleton Catalog Number
ATEX / IECEx NBR IEC
1 18 G13 110/254 5.5 (12.13) 32.3 (1971.07) FEB118BUSA NFEB118BUSA
2 18 G13 110/254 5.5 (12.13) 32.3 (1971.07) FEB218BUSA NFEB218BUSA
1 36 G13 110/254 7.9 (17.42) 54.2 (3307.49) FEB136BUSA NFEB136BUSA
2 36 G13 110/254 7.9 (17.42) 54.2 (3307.49) FEB236BUSA NFEB236BUSA
3 36 G13 110/254 9.9 (21.83) 54.2 (3307.49) FEB336BUSA NFEB336BUSA
1 58 G13 110/254 9.0 (19.84) 65.0 (3966.54) FEB158BUSA NFEB158BUSA
2 58 G13 110/254 9.0 (19.84) 65.0 (3966.54) FEB258BUSA NFEB258BUSA
3 58 G13 110/254 11.0 (24.30) 65.0 (3966.54) FEB358BUSA NFEB358BUSA

See specification sheet for full spec and other options.

Appleton FE

Appleton FE

ATEX/IECEx Certifications for hazardous areas

ATEX LED Luminaires

ATEX Fluorescent Luminaires

  • ATEX/IECEx:
    — Zone 1 and 2 – 21 and 22
    — Ex II 2 GD
    — IP66/67 – IK10

NBR IEC Brazilian Certifications and Compliances

  • Certification Type: FLe
    Gas: Zones 1 and 2:
    – IEC Marking: Ex de IIC/demb IIC Gb
    — Dust: Zone 21 and 22:
    – IEC Marking: Ex tb IIIC Db
Appleton FEHazardous Area Fluorescent Luminaires - Dimensions

Appleton FE – Hazardous Area Fluorescent Luminaires – Dimensions
