Zone 2 Hazardous Area Submersible BulkheadÂ
ATEX Classification – Ex nC II 3GD T6 or T3
Petrel 457 submersible bulkhead is a heavy duty cast iron luminaire suitable for Zone 2 hazardous area lighting available with lamp options up to 150W.
The Zone 2 bulkhead is extremely robust and with a high IP rating is suitable for very wet conditions – optional wire guard option will provide even greater protection for the glass where required.
Zone 2 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations
Zone 2 Submersible Bulkhead
hazardous area CERTIFICATION & APPROVAL
Hazardous Area Zone 2 Lighting Stockists & Suppliers Shipping Worldwide
- Certification and Hazardous Area Approval Certification Code: Ex nC II 3GD T6 or T3
- Certification Number: 03 ATEX TF457/01
- Certification Standard: EN 60079-0, 15
- Bulkhead Protection: IP68 to 15 metres subject to appropriate cable glanding
ZONE 2 Â BULKHEAD –Â BENEFITS & OPTIONS
- Extremely robust cast iron construction
- Low projection and rounded profile
- High IP rating
(IP68 when used with correct cable gland) - 2 pack epoxy paint finish
- Plastic coated wire guard available for Zone 2 bulkhead
âž¡ See also Hazardous Area Enclosures & Junction Boxes.

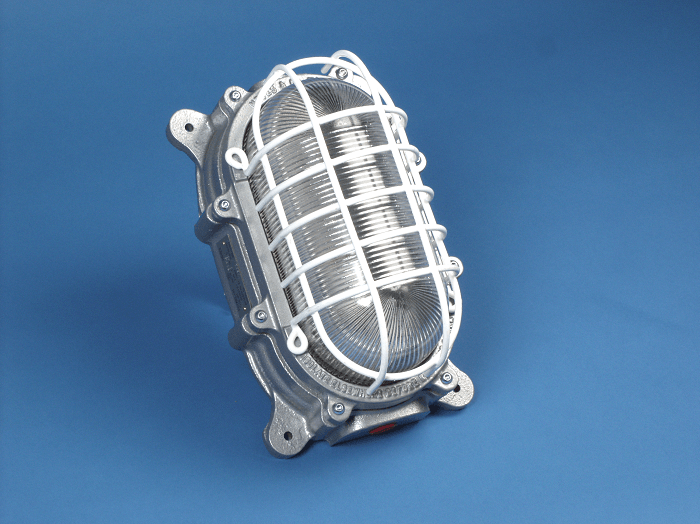

Zone 2 Hazardous Area ATEX Certified Ex nR Bulkhead Luminaire – Petrel 457 Submersible
Zone 2 Hazardous Area ATEX Certified Bulkhead
Petrel 457 Technical Data
| Supply Voltage | 230v 50Hz standard | |
| Operating Temperature Requirements | -20°C to +40°C standard supply subject to ambient temperature requirements | |
| Bulkhead Control Gear | For use with GLS lamp or 25w compact fluorescent. No control gear required | |
| Lamp Options | 150w GLS or 25w compact fluorescent, (Lamps not supplied) | |
| Cable Entries | 1 x M20 Threaded entry. Available both ends as option | |
| Terminals | 2 wire and earth. Cable size 4mm2 max | |
| Mounting Facility | 4 cast in fixing lugs to take M8 screws | |
| Access | Quick release stainless steel clips to free diffuser and spring clips release gear tray | |
| Finish | 2 Pack epoxy paint on primed surface. Standard bulkhead colour – Aqua and white plastic coated guard. Additional costs for non standard colours | |
| Material | Cast iron bulkhead body and bezel, glass lens and coated wire guard | |
| Weight | 9.0Kgs | |

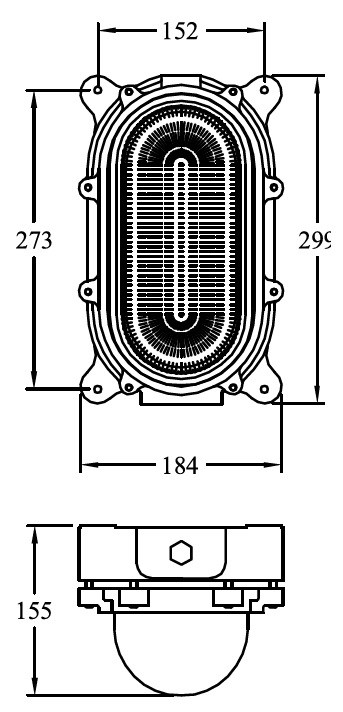

Zone 2 Hazardous Area ATEX Certified Ex nR Bulkead – Petrel 457 Submersible – Dimensions

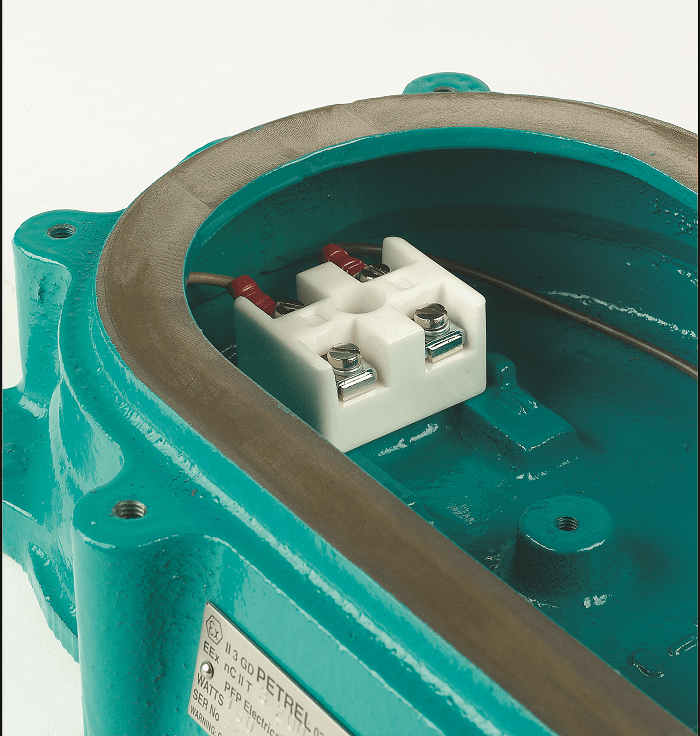

Zone 2 Bulkhead – Terminal Block Access

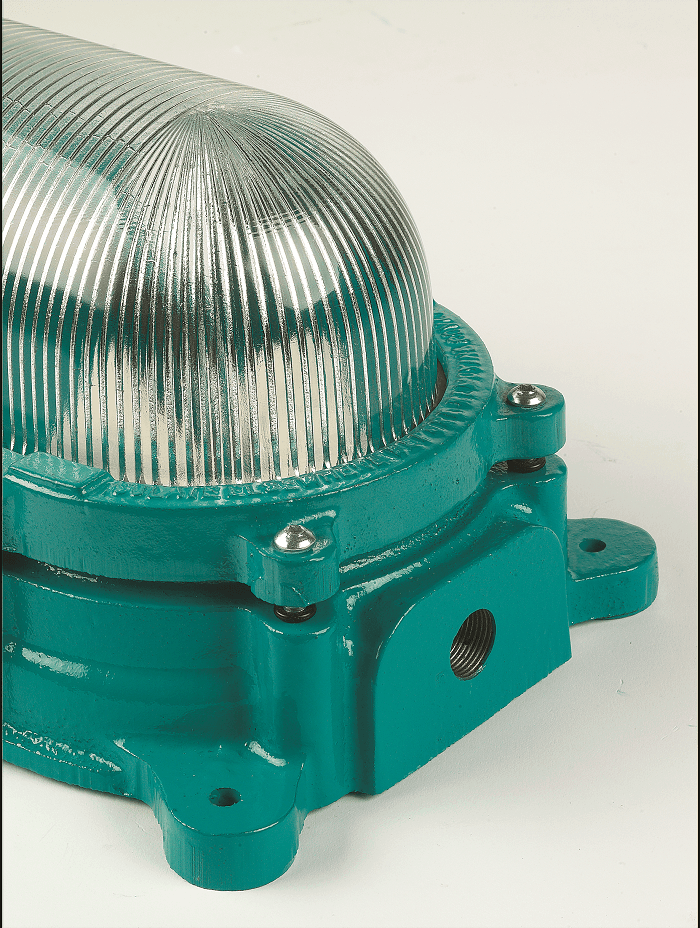

Zone 2 Bulkhead – Terminal Block Access – Cable Entry

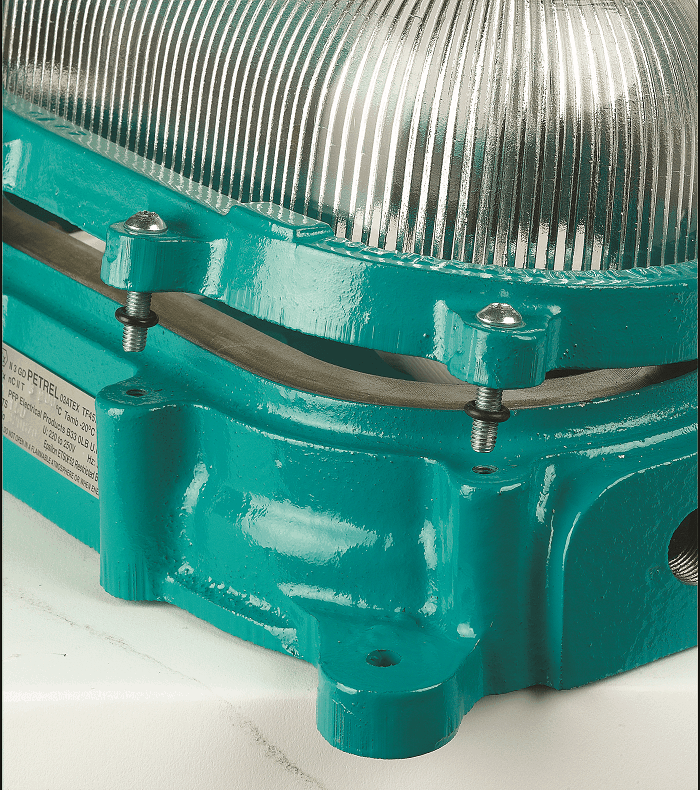

Zone 2 Bulkhead – Terminal Block Access – Lamp Access
Zone 2: Petrel LED Luminaire, Fluorescent Luminaire, Floodlights & Bulkheads – all ATEX Certified for hazardous area Zone 2 lighting.
Electrical, Mechanical, Process & Instrumentation – Your Explosive Atmosphere Experts
Contact T&D for Hazardous Area Junction Boxes for Zone 1 & Zone 2 – electrical enclosures Ex rated with ATEX & IECEx certification. Zone 2 junction boxes are available in GRP, stainless steel and aluminium.
Zone 2 Hazardous Area ATEX Certified Ex nR Bulkead – Petrel 457 Submersible – Data Sheet
