ATEX Combination Units

Eaton’s range of audible and visual ATEX combination units are designed for the purpose of alerting audio and visual awareness to an emergency situation.

The Eaton MEDC range of combination units are built for use in harsh environmental conditions and potentially explosive atmospheres found offshore and onshore in the oil, gas and petrochemical industries in ATEX & IECEx Zone 1 and Zone 2 hazardous areas. Hazardous area combination units can be built to order from various ATEX sounders and ATEX beacons.

MEDC combination units are designed for the purpose of alerting audio and visual awareness to an emergency situation, and can be ordered from Thorne & Derrick to suit client requirements.

Hazardous area combination units come with pre-wired options and customers can choose from a range of materials, including stainless steel and corrosion-free GRP – with a selection of light sources including filament and LED.

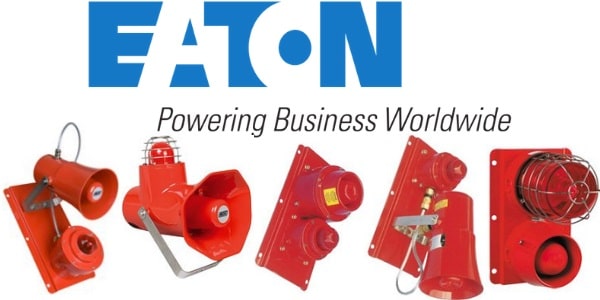

Zone 1 & Zone 2 combination units

The Eaton hazardous area combination units are offered with global ATEX & IECEx approvals.

  • MEDC CU1 – ex de, heavy duty industrial & marine, weatherproof
  • MEDC DB3/XB11 – ex d(e), heavy duty industrial & marine, weatherproof
  • MEDC DB1/SM87HXB – ex d(e), heavy duty industrial & marine, weatherproof
  • MEDC DB3/SM87HXB – ex d(e), heavy duty industrial & marine, weatherproof



Eaton MEDC CU1 ATEX combination Units

MEDC CU1 combination Unit

Heavy Duty Industrial & Marine Ex De

10 watts (sounder) & 10 joules (beacon)

The CU1 range of combination units are manufactured from a UV stable glass reinforced polyester. Stainless steel screws and mounting stirrup are incorporated to ensure a corrosion-free product.


Eaton MEDC DB3 XB11 ATEX combination Units

MEDC DB3/XB11 combination Unit

Heavy Duty Industrial & Marine Ex D(e)

The  DB3/XB11 range of combination units are pre-wired as standard such that a single input operates both the sounder and beacon simultaneously.


Eaton MEDC DB1 SM87HXB ATEX combination Units

MEDC DB1/SM87HXB combination Unit

Heavy Duty Industrial & Marine Ex De

Mounted on a sturdy, drilled, painted, stainless steel plate, the hazardous area  DB1/SM87HXB combination units are pre-wired as standard such that a single input operates both the sounder and beacon simultaneously.






Eaton MEDC DB3 SM87HXB ATEX combination Units

MEDC DB3/SM87HXB combination Unit

Heavy Duty Industrial & Marine Ex D(e)

The DB3 / SM87HXB range of combination units are available for use in potentially explosive atmospheres and dedicated units are now available for use in industrial and marine environments.






ATEX

ATEX

ATEX Certified & Approved

What Is the ATEX Directive?

ATEX is the harmonised EU legislation for controlling explosive atmospheres – the Directive describes the electrical and mechanical equipment allowed in a potentially explosive atmosphere according to the potential risk of explosion determined by the frequency of the occurrence and duration of an explosive atmosphere.

Explosive atmospheres in the workplace can be caused by flammable atmospheric gases, mists, vapours or by combustible dusts that can ignite under certain operating conditions. Equipment and protective systems intended for use in potentially explosive atmospheres cover a range of products, including ATEX phones, ATEX status lights and ATEX call points used on fixed offshore platforms, petrochemical plants, mines, and flour mills with Zone 1 & 2 or Zone 21 & 22 locations.

Should you require technical support to select the most efficient ATEX call point in Zone 1 & 2 or Zone 21 & 22 hazardous areas please do not hesitate to contact us.
