ATEX Compliant Zone 2 LED Bulkhead Design For Heavy Industrial Applications
Published 24 Sep 2019

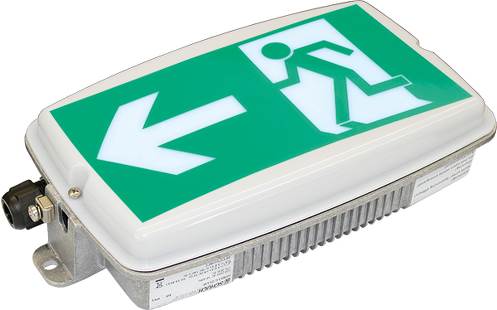

Zone 2 LED Bulkhead
Heavy Industrial Applications
The Abtech Zone 2 LED Bulkhead exit sign is compact and lightweight and therefore ideal for heavy industrial applications including building, walkway and stairwell escape route signage.
Providing 100% light output instantaneously in emergency mode thanks to the integral battery back up the aluminium bulkhead can also run in maintained or non-maintained mode with functions such as fault indication and automatic battery monitoring.
Designed specifically for use in heavy industrial and marine environments to clearly identify escape routes.
Available with self-adhesive running man decals, the nD8611 is compliant with ISO 7010 and ASR A1.3 (Viewing distance = 22m).
A EN 60598 2-22 compliant version of the nD8611 is also available for use with central battery systems.
T&D are main distributors for Abtech – they design and manufacture range of zone 2 hazardous area lighting products. The Ex-rated lighting range includes hazardous area floodlights and LED luminaires suitable for both Zone 2 and 22 hazardous locations.

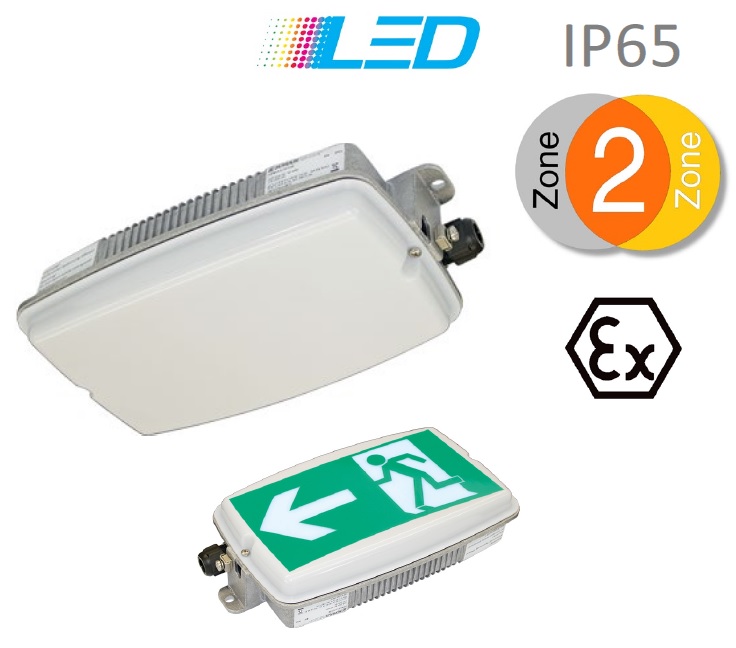

nD8611 LED Bulkhead
ATEXÂ Zone 2 LED Bulkhead
Key Features:
- Compact and lightweight, ideal for building, walkway and stairwells
- Maintained or Non-Maintained operation
- Instant 100% light output in emergency mode
- Automatic battery monitoring and fault indication
- Exit signage to ISO 7010 and ASR A1.3 (Viewing distance = 22m)
| Luminaire Type | LED bulkhead luminaire |
| Ingress Protection | IP65 to EN60529 |
| Material | Diecast Aluminium housing, polycarbonate opaque cover and silicone gaskets |
| Lamp Types | Light Emitting Diode, Pure White (5700K) |
| Colour Rendering Index | > 70 |
| LED life | 50,000 hours L70 @ 40°C |
| Cable Entry | 1 x M20 entry (front side). Supplied with 1 x M20 plastic gland |
| Terminals | 3 or 4 poles for up to 2.5mm2 conductors |
| Control Gear | HF electronic driver with electronic deep discharge protection to EN 61347-2-7 |
| Orientation | Universal |
| Mounting | Via 6.5mm slotted holes in body |
| Supply | 220 to 240V 50/60Hz ac |
| Battery | 6V 4.5Ah Ni-Cd |
| Emergency Operation | Maintained or non-maintained |
| Emergency Duration | 180 minutes (3 hours) at 100% output |
Abtech – Zone 2 Hazardous Area Lighting
HAZARDOUS AREA CERTIFICATION
Abtech Zone 2 LED Bulkheads are certified according to leading hazardous area classifications including:
- Area Classification Zone 2 & 22, Gas & Dust
- Apparatus Coding Standard: Ex II 3 G Ex nR* IIC T4 Gc Gc, Ex II 3 D Ex tc IIIC T80°C Dc
- Certificate Number: SH 14.8611
Zone 2 LED Bulkhead
Standard Specification
| Abtech Product Reference | Colour Temperature (K) | Lumen Output | Power (W) | Ambient Temperature | Weight (kg) |
| LX2ND8611201 | 6,500 | 100 | 4W | -20°C to 40°C | 0.9 |
| LX2ND86112013 | 6,500 | 100* | 4W | -20°C to 40°C | 1.3 |

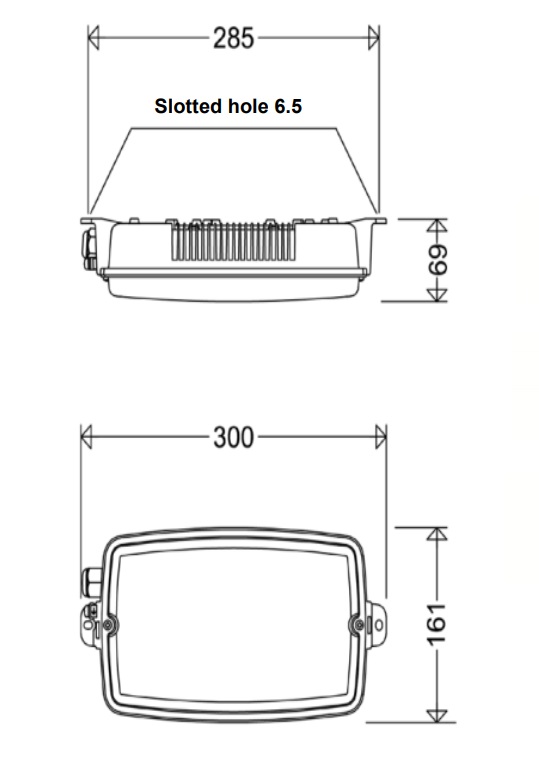

nD8611 Zone 2 LED Bulkhead Dimensions
