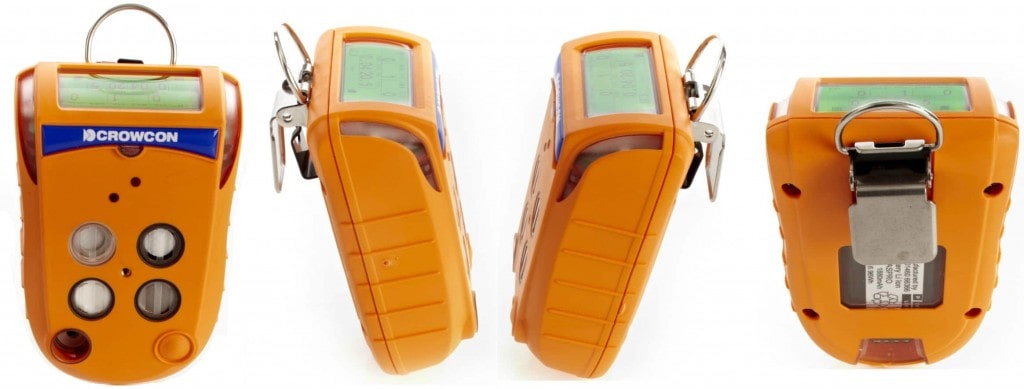

Crowcon Gas-Pro Gas Detector – Confined Spaces Multigas Detector
Crowcon Gas-Pro portable gas detector is designed for confined space entry monitoring and can detect up to 5 gases. The Crowcon Gas-Pro offers a compact and rugged solution for works and fleet managers entering confined spaces.
Crowcon Gas-Pro can be worn in pumped or diffusion modes thanks to an optional internal pump. C-Test bump solution with configuration update keeps the Crowcon detectors correctly configured to ensure the product is consistently up-to-date without the need for a service or technician team.
The Crowcon Gas-Pro portable gas detector has single button operation, an easy to read top mounted screen making the gas detector very user friendly and suitable for use in hazardous areas and confined spaces.
The portable gas monitor is extremely efficient working within a wide temperature range and is effective in many harsh environments. This gas detector offers multiple uses in one compact device and can monitor 5 gases from many different options.
C-Test bump solution with configuration update keeps the Crowcon detectors correctly configured to ensure the product is consistently up-to-date without the need for a service or technician team.
The Crowcon Gas-Pro gas detector is also water and dust resistant to IP65 and IP67.
Crowcon Gas-Pro Portable Gas Detector
- Simple Operation – The Crowcon Gas-Pro is operated by a single button for all functions (can be used whilst wearing gloves) and a top mounted display makes it easier to read at a glance
- Reliability – The lithium-ion battery provides continuous use for 14 hours from one charge and provides a clear warning when calibration is due
- Flexible Options – The Gas-Pro can monitor 5 gases from a range of options and has both pumped and diffusion solutions. The device has multiple languages, has an automatic fail safe flow plate recognition and has a specific and unique Pre-Entry Check mode making pre-entry testing a lot easier
Crowcon Gas-Pro User Videos
How to switch Gas-Pro Detector on:
How the Gas-Pro alarm display works:
How gas levels are detected and displayed via the home screen:
How to switch Gas-Pro Detector off:
How to use the Crowcon Gas-Pro cradle charger and lead:
How to activate the backlight on the Gas-Pro detector:
Crowcon Gas-Pro Bump Testing And Calibration
Routine bump testing is recommended for the range of Crowcon portable gas detectors prior to each use. Bump testing is a brief application of a gas to the sensor to invoke a prescribed reaction, ensuring the gas detector reacts as expected.
Bump testing provides a quick, easy and direct method of verifying gas detectors are performing as required and takes a lot less time than ‘zeroing’ the device.
The bump test is widely accepted as a suitable method of testing gas detection equipment.
Crowcon offer bump test solutions with I-Test and Q-test.
Crowcon Gas-Pro Portable Gas Detector
|Size||43 x 130 x 84mm (1.7 x 5.1 x 3.3ins)|
|Weight||309g 4 gas (10.8oz)/ 340g pumped (11.9oz) 333g 5 gas (11.7oz)/ 362g pumped (12.7oz)|
|Alarms||Audible >95dB @ 30cm (98dB @30cm in loud mode) Visual – all angle dual red/blue LEDs Vibrating alert|
|Display||Top mount for ease of view with dual colour backlight (green/red)|
|Data logging||125hrs at 10 second intervals (45,000 logs)|
|Event log||Alarm, over range, calibration, bump, on/off, TWA, 1000 events|
|Ingress Protection||IP65 and IP67|
|Humidity||10 to 95% RH+|
|Sampling||Internal pump as option|
|Operating temperature||-20o C to +55o C (-4o F to +131o F)|
|Storage||-25o C to +65o C (-13o F to +149o F)|
|Approvals||IECEx: Ex d ia IIC T4 Gb Tamb -20o C to +55o C ATEX: II 2 G Ex d ia IIC T4 Gb Tamb -20o C to +55o C UL: Gas detector use in hazardous locations Class 1, Division 1, Groups A, B, C, and D only as to intrinsic safety INMETRO|
|Compliance||FCC and CE Complies with EMC Directive 2004/108/EC EN50270 and ICES-003|
|Interface||Data connection for gas test solutions and direct to PC|
|Charging||Direct connect to multiregion power supply Vehicle charger adaptor Desk top cradle USB power and communications lead|
Crowcon Gas-Pro – Portable Gas Detector
Gases Detected & Ranges
|Gas Detection||Range||Typical Alarms||Resolution|
|Carbon Dioxide CO₂||0-5% vol||0.5% vol.||0.01% vol.|
|Carbon Monoxide CO||0-2000ppm||30ppm||1ppm|
|Carbon Monoxide CO||0-500ppm||30ppm||1ppm|
|CO (Hydrogen Filtered)||0-2000ppm||30ppm||1ppm|
|Carbon Monoxide Hydrogen Sulfide CO-H₂S||H2 S 0-100ppmCO 0-500ppm||5ppm30ppm||1ppm1ppm|
|Flammable||0-100% LEL||20% LEL||1% LEL|
|Hydrogen Sulfide H₂S||0-100ppm||5ppm||1ppm|
|Nitrogen Dioxide NO₂||0-20ppm||1ppm||0.5ppm|
|Oxygen O₂||0-25% vol||19%/ 23% vol.||0.1% vol.|
|Sulphur Dioxide SO₂||0-20ppm||1ppm||0.1ppm|
|Chlorine Dioxide ClO₂||0-1ppm||0.1ppm||0.1ppm|
|Nitric Oxide NO||0-100ppm||25ppm||1ppm|
Hazardous Area ATEX Certified Gas Detector
Hazardous Area Classification :
ATEX II 2 G Ex d ia IIC T4 Gb Tamb -20°C to +55°C
IECEx Ex d ia IIC T4 Gb Tamb -20°C to +55°C
UL: Gas detector use in hazardous locations Class 1, Division 1, Groups A, B, C, and D only as to intrinsic safety INMETRO
T&D provide competitive prices and delivery for all Crowcon Gas Detectors, including the Crowcon Gas-Pro.
