SX EX Electromagnetic Lock

Access Control Security Solution For Zones 1, 2, Zones 21 & 22

SecurEx SX EX Electromagnetic Lock (Maglock) also referred to as an ATEX Maglock is an unique SX security product that has been designed as the first truly ‘Ex Certified’ door locking product.

Manufactured by the sister company of SecurEx, The Wath Group, specifically designed for use in hazardous area (Ex environments) Zones 1,2, 21 & 22 – providing an unrivalled security solution for access control.ATEX

The ATEX Magnetic Lock is designed with both ‘form and function‘ in mind and is available in two different versions, 12 or 24DC. The magnetic lock itself is manufactured from a single solid mono-block of 316L stainless steel and when purchased is supplied with 5 metre multi-core user cable as standard.

The magnetic lock device works with both the SecurEx door controller and access products as well as other third party ACU systems providing a highly effective security solution with the ability to withstand loads of up to 500 kgf.

The Maglock is suitable for an extensive range of door compositions including left or right handed and in or outward opening doors that can be achieved by using the correct accessories – approved I, L & Z brackets that can be purchased separately.

The unit is flexible in terms of the cabling as it can either leave the right or left of the lock. The ATEX Maglock is IP67 rated and suitable for on and offshore applications.

For standard security applications the lock is often supplied with door status monitoring and is provided with a special door armature (Keeper unit), which includes a door status magnet. Grade 2 (SEOL) and Grade 3 (TEOL) options are available for applications that require higher security – a door status with anti tamper and product fault monitoring.

SX EX Electromagnetic Lock can be combined and used as part of an integrated access control solution thanks to the flexible configurations on offer – increasing the safety and security for personnel.

ATEX Maglocks

ATEX Maglocks

➡ The SecurEx SX Magnetic Door Lock is provided as standard with a documentation pack including Operation, Installation & Maintenance Guide (OIMG), mounting templates & copies of all appropriate certifications.

ATEX Maglocks

ATEX Maglocks

Maglocks Specifications

The SecurEx SX-LSP7XXXXA series of Maglocks can be installed and used just like a conventional electromagnetic lock by fitted onto the frame and acting on the armature plate (keeper unit) which is usually mounted to the top of the door. The below tables show the 12V and 24V DC versions of the SX EX Electromagnetic Lock.

SX EX Electromagnetic Lock – Wiring Connectivity & Fusing Table By Model Number for 12V DC Product

Switching System Voltage & TemperatureNo Contact/ TamperSPCOSEOL Grade 2TEOL Grade 3
12V DC T6 -30ºC…+40ºCSX-LS-P71101ASX-LS-P71111ASX-LS-P71121ASX-LS-P71131A
12V DC T5 -30ºC…+55ºCSX-LS-P72101ASX-LS-P72111ASX-LS-P72121ASX-LS-P72131A
Cable Type3 CoreLine Fuse7 CoreLine Fuse5 CoreLine Fuse5 CoreLine Fuse
Core Number 1 +VE1A SLO BLO+VE1A SLO BLO+VE1A SLO BLO+VE1A SLO BLO
Core Number 20 VDCNA0 VDCNA0 VDCNA0 VDCNA
Core Number 3NANANONASEOL80mA SLO BLOTEOL80mA SLO BLO
Core Number 4NANANCNARETURNNARETURNNA
Core Number 5NANACOMMON0.5A SLO BLONANANANA
Core Number 6NANACOMMON0.5A SLO BLONANANANA
Earth CoreGNDNAGNDNAGNDNAGNDNA
Switching System Voltage & TemperatureAlarm ContactAlarm +Tamper LoopTamper Loop Only
12V DC T6 -30ºC…+40ºCSX-LS-P71141ASX-LS-P71151ASX-LS-P71161A
12V DC T5 -30ºC…+55ºCSX-LS-P72141ASX-LS-P72151ASX-LS-P72161A
 Cable Type 5 CoreLine Fuse7 CoreLine Fuse5 CoreLine Fuse
 Core Number 1 +VE1A SLO BLO +VE1A SLO BLO +VE1A SLO BLO
 Core Number 2 0 VDCNA 0 VDCNA 0 VDCNA
 Core Number 3 CONTACTNA CONTACTNA NANA
 Core Number 4 COMMON1A SLO BLO COMMON1A SLO BLO NANA
 Core Number 5 NANA TAMPER LOOPNA TAMPER LOOPNA
 Core Number 6 NANA TAMPER LOOP1A SLO BLO TAMPER LOOP1A SLO BLO
Earth CoreGNDNAGNDNAGNDNA

SX EX Electromagnetic Lock – Wiring Connectivity & Fusing Table By Model Number for 24V DC Product

Switching System Voltage & TemperatureNo Contact/ TamperSPCOSEOL Grade 2TEOL Grade 3
24V DC T6 -30ºC…+40ºCSX-LS-P71201ASX-LS-P71211ASX-LS-P71221ASX-LS-P71231A
24V DC T5 -30ºC…+55ºCSX-LS-P72201ASX-LS-P72211ASX-LS-P72221ASX-LS-P72231A
Cable Type3 CoreLine Fuse7 CoreLine Fuse5 CoreLine Fuse5 CoreLine Fuse
Core Number 1 +VE0.5A SLO BLO+VE0.5A SLO BLO+VE0.5A SLO BLO+VE0.5A SLO BLO
Core Number 20 VDCNA0 VDCNA0 VDCNA0 VDCNA
Core Number 3NANANONASEOL80mA SLO BLOTEOL80mA SLO BLO
Core Number 4NANANCNARETURNNARETURNNA
Core Number 5NANACOMMON0.5A SLO BLONANANANA
Core Number 6NANACOMMON0.5A SLO BLONANANANA
Earth CoreGNDNAGNDNAGNDNAGNDNA
Switching System Voltage & TemperatureAlarm ContactAlarm +Tamper LoopTamper Loop Only
24V DC T6 -30ºC…+40ºCSX-LS-P71241ASX-LS-P71251ASX-LS-P71261A
24V DC T5 -30ºC…+55ºCSX-LS-P72241ASX-LS-P72251ASX-LS-P72261A
 Cable Type 5 CoreLine Fuse7 CoreLine Fuse5 CoreLine Fuse
 Core Number 1 +VE0.5A SLO BLO +VE0.5A SLO BLO +VE0.5A SLO BLO
 Core Number 2 0 VDCNA 0 VDCNA 0 VDCNA
 Core Number 3 CONTACTNA CONTACTNA NANA
 Core Number 4 COMMON1A SLO BLO COMMON1A SLO BLO NANA
 Core Number 5 NANA TAMPER LOOPNA TAMPER LOOPNA
 Core Number 6 NANA TAMPER LOOP1A SLO BLO TAMPER LOOP1A SLO BLO
Earth CoreGNDNAGNDNAGNDNA

The electromagnetic lock is factory fitted as standard with a grey, multi-core ‘wire braided’ cable. The signal cores MUST be appropriately terminated via a suitable terminated via a suitble certified Ex e gland into a local Ex e junction box.

Mounting Options

The SX EX Electromagnetic lock has been designed for use on a wide range of door configurations including use of both inward and outward opening doors. Each lock is provided as standard as a two part set comprising the Electromagnetic Lock and The Armature Plate (Keeper).

The exceptions to this are the Grade 2 SEOL and Grade 3 TEOL units are additionally complete with a separate ‘I’ security plate. The security ‘I’ plate is designed to be independently mounted behind the lock and incorporates anti-tamper measures by virtue of a hidden magnetic feature which triggers the tamper relay in the lock if the lock is subsequently removed.

Common mounting arrangements for both outward and inward opening doors are shown below along with the part numbers for the associated part numbers.

Outward Opening Doors

Outward Opening Doors

A common mounting arrangement for outward opening doors is for the magnetic lock to be fitted neatly beneath the door frame with the Armature Plate being fitted directly to the door which then closes directly onto the lock. This requires an optional custom L bracket as shown above.

The above image also shows Grade 3 units ‘I’ security plate positioned between the lock and the L bracket.

Please Note: Due to common mounting points the L brackets can be used to mount the armature (keeper) plate in an alternate mounting arrangement if required.

Inward Opening Doors

Inward Opening Doors

A typical mounting arrangement for inward opening doors is for the magnetic lock to be fitted directly to the outside face door frame with Armature Plate being stepped off of and up from the door to close directly onto the lock. This arrangement requires our optional custom Z bracket and is shown above. Again the image also shows the Grade 3 units ‘I’ security plate positioned behind the lock.

Please Note: Due to common mounting points the  Z bracket can also be used to mount the lock in an alternate mounting arrangement if required.

Mounting Kits for ATEX Certified Magnetic Locks

The following kits are available at an extra cost:

  • L – Bracket Kit – P/N SX-LS-M70101A – comprising of an L Bracjet which is designed to allow the lock to be neatly mounted under the door frame whilst the receiver plate is directly mounted to the door.  Due to common mounting points the L brackets can be used to mount the armature (keeper) plate in an alternate mounting arrangement if required
  • Z Bracket – P/N SX-LS-M70201A – comprising a 2 part adjustable Z bracket, this kit allows either the armature (keeper) plate of the lcok itself to be set off of the door or frame. The bracket provides an adjustable offset clearance of up to 75mm
  • I Bracket Kit P/N SX-LS-M70301A – comprises an extended I bracket and is compatible with anti tamper features in variants for use with TEOL configurations.
  • S Bracket Kit P/N SX-LS-M7040XA – the S bracket option allows us to create special custom brackets designed to meet specific clients unique requirements
Electromagnetic Lock GA

Electromagnetic Lock GA

Armature (Keeper) GA

Armature (Keeper) GA

ATEX Maglocks

SecurEx SX-LS-P7XXXXA Specification

Size & WeightElectromagnetic Lock 40x62x270 (HxWxD) Weight Approx. 5Kg
Magnet Armature 18x62x270 (HxWxD) Weight Approx. 2Kg
Enclosure Material316L Stainless Steel
Mounting Detail4 x M6 DIN 7991 Mounting Holes – Electromagnet
4 x M6 DIN 7991 Mounting Hole – Armature
Approved Mounting Systems• SX-LS-M7010XA – L BRACKET
• SX-LS-M7020XA – Z BRACKET
• SX-LS-M7030XA – I BRACKET
• SX-LS-M7040XA – S BRACKET*
*S bracket is a custom mounting system on special request.
Ambient Temp Range• (1) –30 °C … +40 °C (T6)
• (2) –30 °C … +55 °C (T5)
Temperature range specified on order
IP ProtectionIP 67 (1m for 30 Minutes)
Ex Marking / CertificationII 2G Ex mb IIC T6/5 Gb
II 2D Ex mb IIIC T85/100°C Db
IECEx Ex mb IIC T6/5 Gb
IECEx Ex mb IIIC T85/100°C Db
ApprovalsExVeritas 17ATEX0289X
IECEx EXV 17.0018X
Ideal Maximum Holding ForceApprox. 500 kgf (5000N)
Magnet holding force is reduced by increasing AC-ripple in DC
supply (0…max. 25 %).
Utilization CategoryDC-13/DC-14
Electromagnet Power Requirements• (1) 12VDC (13.2 Vmax 1A Fused)
• (2) 24VDC (26.4 Vmax 0.5A Fused)
Supply specified on order
Switching SystemsSwitching Systems
• (0) No Contact Fitted*
• (1) SPCO
• (2) Grade 2
• (3) Grade 3
• (4) NO/NC*
• (5) NO/NC + Tamper Loop*
• (6) Tamper Loop only*
System specified on order
*available on special request
Switching Electrical Characteristics• max. 1A Switching Current
• max. 50 W Switching Capacity
Values dependent on selected switching system.
Operation Life Cycles• >1 million operations (Mechanical)
• 106 operations (Electrical)
ConnectionsExternal Earth Point with M4 bolt, M4 external serrated
lock washer.
Cabling• (1) 5m Factory
• (2) Customer Specified (10m Minimum)
Cable supplied Conductor size 0.5mm. Depend of Variant
Core count 2-6 Cores + Internal Earth

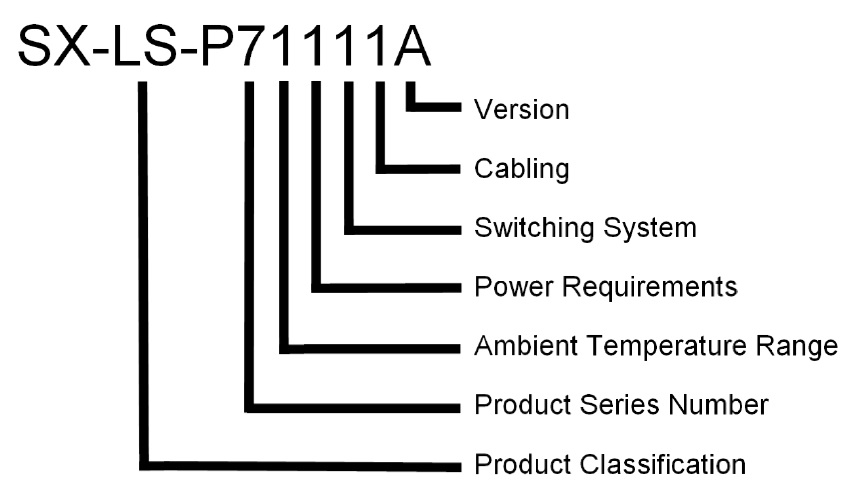

Product KeyProduct Key

Mechanical Installation of Maglocks

The SecurEx SX-LS-P7XXXXA series can be installed and functions in the same way as a standard electromagnetic lock by being fitted onto the frame and acting on the armature plate (keeper unit) which is usually mounted to the top of the door.

Basic installation requires 4 x M6 mounting bolts for the lock and a further 4 x M6 mounting bolts for the Armature Plate (Keeper). The lock is provided as standard fully assembled with 5m user cable factory fitted.
