6.6kV Terminal – HV High Voltage Cable Terminal Zone 1 Hazardous Area ATEX

High Voltage Junction Box 6.6kV-8.3kV - Zone 1 Zone 2 Hazardous Area ATEX

HV Enclosures & Junction Boxes Up to 4.4kV to 6.6kV

Abtech MV Terminal is a component suitable for use with high voltage hazardous area electrical enclosures and junction boxes provide safe power distribution for 4.4kV to 6.6kV systems up to 240sqmm cables – ATEX certified for Zone 1 of MV cables in hazardous area locations.

Abtech MV Terminal (6.6kV) is available in three, four and six way configurations: the terminals are both ATEX and IECEx approved and is rated for a maximum current of 250A.

Abtech MV Terminals can be specified to be linked in pairs or multiples and are suitable for high ambient temperature applications and are compatible for use with Abtech SX stainless steel enclosures.

High Voltage HV Junction Box

Zone 1 Hazardous Area

ATEX Certified

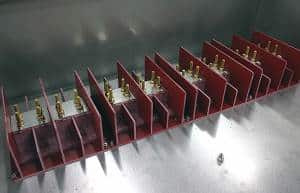

Abtech MV Terminal (6.6kV)

Abtech MV Terminal - High Voltage Hazardous Area Electrical Enclosures

Abtech Medium Voltage Terminal is a
component certified device that simplifies the
connection of 4.4 to 6.6kV electrical supplies

Abtech MV Terminal (6.6kV)

Abtech MV Terminal (6.6kV) suitable for use any ATEX or IECEx Zone 1 certified enclosure.

6.6kV Terminal – HV High Voltage Cable Terminal Zone 1 Hazardous Area ATEX

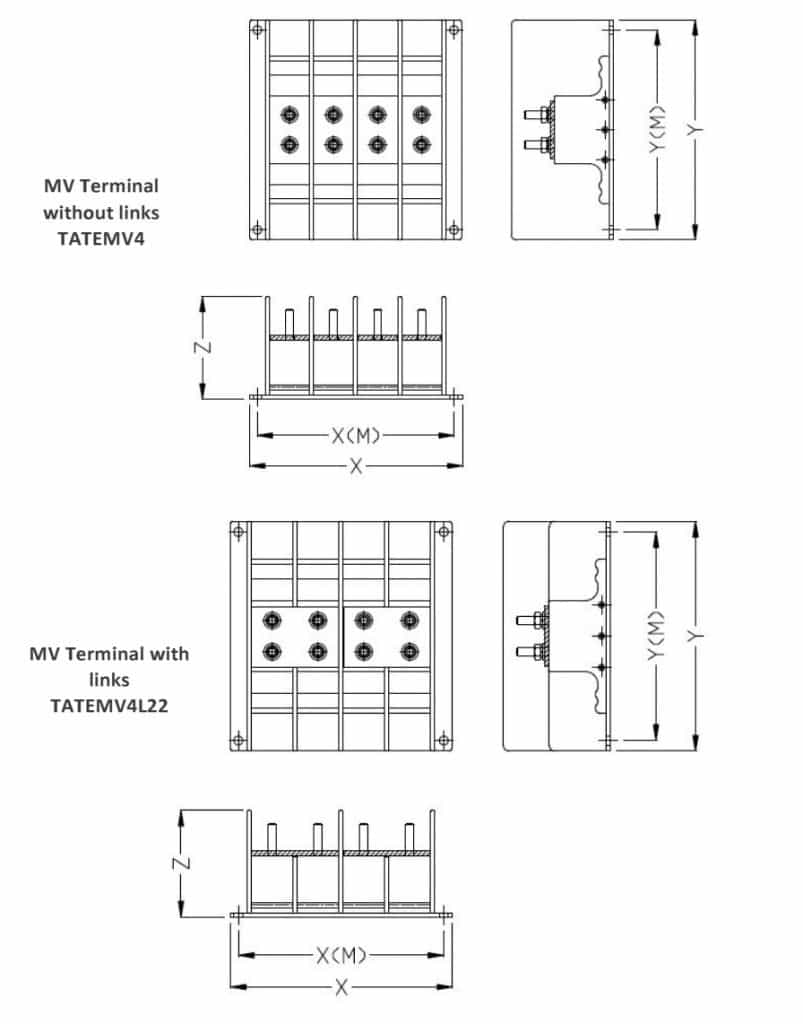

Abtech MV Terminal General Arrangement HV Enclosure Drawing – cable termination, enclosure and junction box suitable for jointing, connecting and terminating HV cables 6.6kV-8.3kV.

Abtech Part Ref Width (mm) Dimension  Height (mm) Dimension Y Depth (mm) Dimension Z Maximum Voltage (kV) * Maximum Current (A) Maximum Conductor Size (mm²) Maximum Ways Weight (kg) Hazardous Area Enclosure
X X(M) Y Y(M)
TATEMV3 168 153 220 200 102 4.4kV 250 240sqmm 3 1.8  Zone 1
TATEMV4 212 197 220 200 102 4.4kV 250 240sqmm 4 2.4  Zone 1
TATEMV6 300 285 220 200 102 4.4kV 250 240sqmm 6 3.7  Zone 1
TATEMV3T 168 153 220 200 114 6.6kV 250 240sqmm 3 1.8  Zone 1
TATEMV4T 212 197 220 200 114  6.6kV 250  240sqmm 4 2.4  Zone 1
TATEMV6T 300 285 220 200 114 6.6kV 250  240sqmm 6 3.7  Zone 1
High Voltage Enclosures & Junction Boxes (HV) - Hazardous Area

High Voltage Enclosures & Junction Boxes (HV) – Hazardous Are

Operating Temperature Rating

  • Standard: -40°C to +130°C

High Voltage HV ENCLOSURE Specification

  • Product Type: Medium Voltage Terminal
  • Material Plastic: UTR Laminate GP03 grade 1494
  • Operating Temp Rating: -40°C to +130°C
  • Crimp Lugs: M8 single hole, sizes 6mm2 up to 240mm2
  • Mounting: 4 x M8 clearance holes
  • Certification Area: Classification Zone 1 & 21, Gas and Dust
  • Type of Protection: Ex e (Increased Safety)
  • Apparatus Coding: Ex e IIC Gb
  • Certificate Number: ATEX: CML 15ATEX3096U / IECEx: CML 15.0051U

ENCLOSURE OPTIONS

  • Abtech Lxx Linking: 1st x = link type (pairs, triple) 2nd x = Quantity of links required

Add the required suffix to the product reference. Example: TATEMV6TL23 – 6 way 6.6kV max terminal block linked in pairs, three links.

MV HV electrical Enclosures & Junction Boxes
3.3kV 6.6kV 11kV 33kV HIGH VOLTAGES

T&D produce customised HV Junction Boxes & Electrical Enclosures suitable for safe installation and distribution of MV-HV electrical power in hazardous area locations – enclosures and junction boxes can be specified and supplied for 3.3kV, 6.6kV, 11kV and 33kV high voltage power networks where Ex-certified HV electrical equipment is required in accordance with ATEX and IECEx hazardous area certification.

HV High Voltage Electrical Enclosures Junction Boxes

HV High Voltage Specialists – Zone 1 & Zone 2 Hazardous Area Certified By ATEX

➡ View complete range: HV Junction Boxes & Electrical Enclosures

HV Enclosures Junction Boxes

MV-HV Junction Boxes & Electrical Enclosures For 3.3kV, 11kV and 33kV Medium-High Voltage Networks – Industrial & Hazardous Area
