ATEX Induction Base Drum Heater – Faratherm FTH
ATEX Induction Base Drum Heater – Faratherm FTH

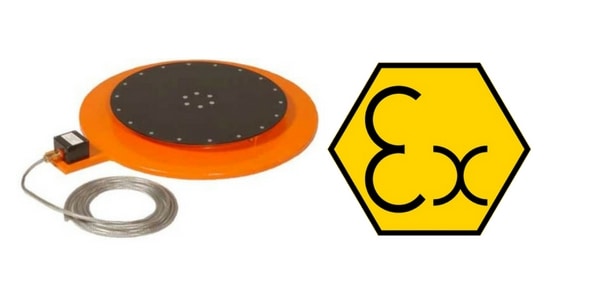

The Faratherm FTH ATEX induction base drum heater is ideal for drum heating applications within Zone 1 & Zone 2 hazardous area applications for steel and plastic drums up to 205 litre.
The Faratherm FTH uses induction heating technology with an induction heater coil encapsulated within glass reinforced with a heating plate on top. Heat is generated by alternating magnetic fields.
The ATEX induction base drum heater can be used within harsh environments or those that require regular cleaning and has an Ingress Protection rating to IP66 and no moving parts.
The ATEX induction drum heater ensures safe operating conditions are maintained even in the presence of potentially explosive gases and no transformers are required as the Faratherm FTH operates using standard AC supply voltages up to 240V.

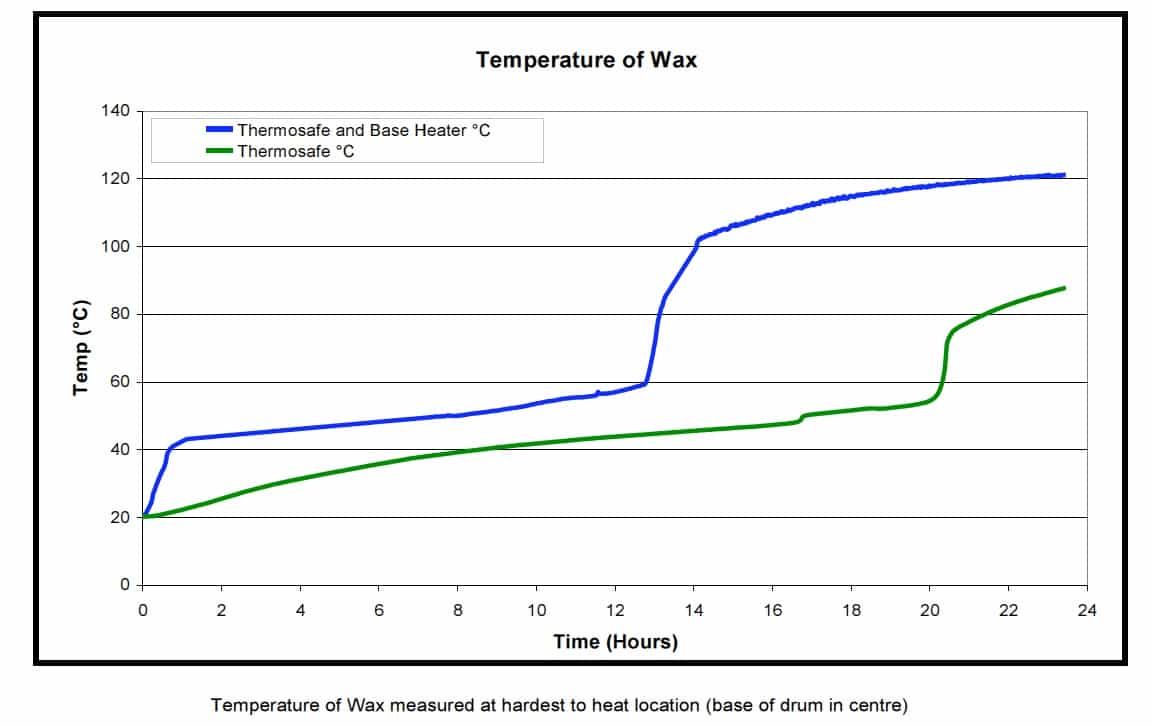

The Faratherm base drum heater can be used by itself or can be used alongside the Thermosafe induction drum heater or a hazardous area certified drum heating jacket to improve heat up times and heat containers to higher temperatures.
Faratherm FTH HAZARDOUS AREA ATEX Induction BASE Drum Heater CERTIFICATION
Hazardous Area Induction Base Drum Heater For Zone 1 Zone 2 Hazardous Areas
Certification: ATEX Certified II 2GD Exe II T3 Ex e tD A21 IP66 T200ºC Zone 1 & Zone 2
Class II appliance
EN 60079-0:2004, EN 60079-7:2003, EN61241-0, EN61241-1
Sira 07ATEX3034X
IECEx Certified SIR 07.0017X
Faratherm FTH HAZARDOUS AREA ATEX Induction DRUM HEATer – Technical Specification
| Voltage | Single Phase up to 240V, 50/60Hz AC |
| Current / Power Consumption | 7A, 500W (Note Inductive Power Factor) |
| Heating Plate Diameter | 550mm |
| Overall Width | 887mm |
| Heating Plate Height | 59mm |
| Weight | 45kg |
| Ingress Protection | IP66 |
Drum Heaters – Non Hazardous & Hazardous Area Certified. Ask T&D About ATEX Certified IBC Container Heaters For Hazardous Areas.
ATEX Induction Base Drum Heater – Faratherm FTH – Spec Sheet
Download
