ATEX 120V Induction Drum Heater – Thermosafe Type B

ATEX Induction Drum Heater – Thermosafe Type B

ATEX Induction Drum Heater – Thermosafe Type B

The Thermosafe Type B ATEX induction drum heater is ideal for drum heating applications within Zone 1 & Zone 2 hazardous area applications for 205 litre steel drums where height is restricted or to heat smaller containers.

The Thermosafe Type B uses induction heating technology to heat up the drum container directly and uniformly in the drum wall by alternating magnetic fields. Unlike conventional heating methods of radiation or convection there are no hot elements so the Thermosafe Type A heater remains much cooler than the drum being heated ensuring a high level of safety.

The induction drum heater coil is wholly encapsulated within a glass reinforced resin cylinder which is designed specifically to be suitable for use within chemical plants.

Typical heat up times of an organic liquid can be around 15ºC per hour without hot spots along the drum wall which could result in product degradation. The Thermosafe Type B is ideal for clean environments and has an Ingress Protection rating to IP66 with simple, smooth surfaces and no moving parts allowing it to be hosed down even during use if required.

The ATEX induction drum heater ensures safe operating conditions are maintained even in the presence of potentially explosive gases and no transformers are required as the Thermosafe Type A operates using standard AC supply voltages up to 120V.

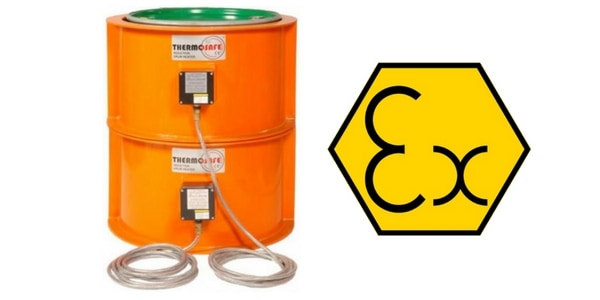

The Thermosafe Type B can heat the lower half of a 200L steel drum to around 110ºC and 2 heaters can be stacked to cover the full height of the drum.

Thermosafe Type B HAZARDOUS AREA ATEX Induction Drum Heater CERTIFICATION

Hazardous Area Drum Heating For Zone 1 Zone 2 Hazardous Areas

Hazardous Area Induction Drum Heater For Zone 1 Zone 2 Hazardous Areas

Certification: ATEX Certified II 2GD Exe II T3 Ex tD II A21 T T200ºC Zone 1 & Zone 2
Class II appliance
EN 60079-0:2004, EN 60079-7:2003, EN31241-0:2006, EN61241-1:2004
Sira 08ATEX3101X
IECEx Certified SIR 08.0037X

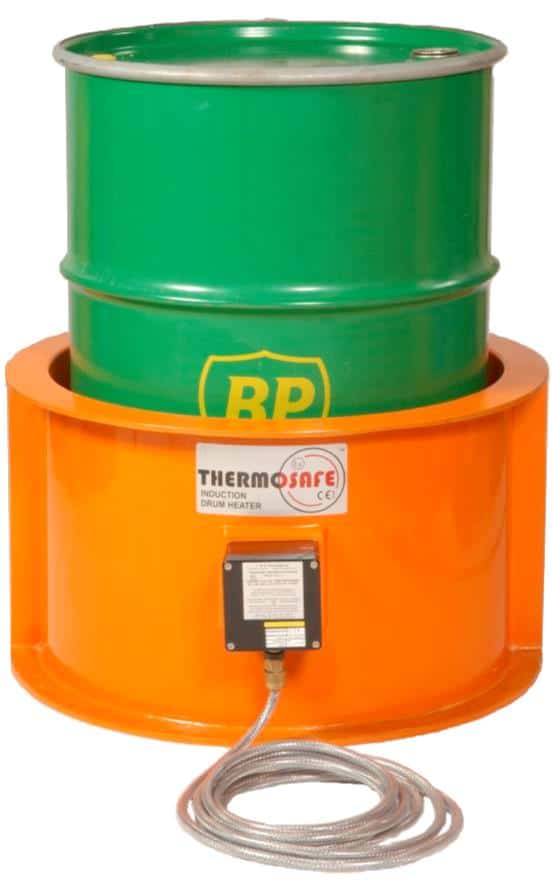

ATEX Induction Drum Heater – Thermosafe Type B - 1

Thermosafe Type B HAZARDOUS AREA ATEX Induction DRUM HEATer – Technical Specification

Voltage Single Phase up to 120V, 50/60Hz AC
Current / Power Consumption Switch On – 23A, 1500W
Overall Diameter 743mm
Internal Diameter 610mm
Overall Height 425mm
Weight 30kg
Ingress Protection IP66
