Thermocoax Isopad FIDR-SRX ATEX drum heater enclosures are designed to provide medium flow and process temperature to 200 litre steel drums in Zone 1 and Zone 2 hazardous areas.

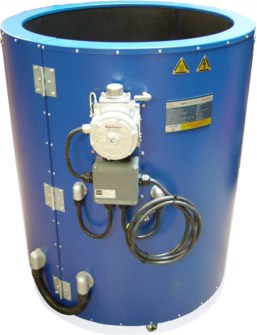

The FIDR-SRX ATEX drum heater is constructed from heavy gauge sheet steel with a double skin construction housing the electric heating elements which cover the entire inner surface ensuring the drum is heated consistently. These heating elements are insulated to prevent heat loss through the outer wall and the inner walls are also painted with a thermally conductive paint to give maximum heat transfer. The clam shell design and castors allow the drum heater enclosures to be wheeled up to and closed around the drum, eliminated overhead lifting.

ATEX Drum Heater Enclosures For Zone 1 & Zone 2 Hazardous Area Applications

ATEX Drum Heater Enclosures For Zone 1 & Zone 2 Hazardous Area Applications

Thermocoax Isopad FIDR-SRX drum heater enclosures are ATEX and IECEx approved for use within Zone 1 and Zone 2 hazardous area applications and are equipped with a -4ºC to +163ºC mechanical thermostat as standard.

Insulated lids are available to prevent heat loss through the top of the enclosure and drum to increase the heater efficiency. The range of Isopad FIBDR base drum heaters can be used alongside the FIDR-SRX ATEX drum heater enclosure to further improve the heater capabilities.

T&D also offer a full range of IBC & Drum heating jackets and heaters.

ATEX Drum Heater Enclosure (T2) - Isopad FIDR-SRX

ATEX Drum Heater Enclosure (T2) - Isopad FIDR-SRX

ATEX Drum Heater Enclosure – Isopad FIDR-SRX – Illustration

ATEX & IECEX  Drum Heater Enclosure (T2) – ISOPAD FIDR-SRX – Technical Specification

Area Classification Hazardous Area
Hazardous Area Zone Gas – Zone 1 & 2
Dust – Zone 21 & 22
Temperature Class T2
Ingress Protection IP6X (IP65)
Electrical Protection Class Class I
Ambient Temperature Range -40ºC to +50ºC
Approvals System Approval by Baseefa
Number of Certificate Baseefa08ATEX0280X / IECEx BAS 08.0088X
Marking Ex II 2 GD Ex de IIC T2 … T6 Ex tD A21 IP6X T240ºC … T80ºC
Norms EN, IEC Standard
Height 990mm including castors
Inner Diameter 650mm
Outer Diameter 770mm
Heater Type Self Regulating Heating Cable
Carrier Sheet Steel
Material of Thermal Insulation Glass Fibre
Thickness 50mm
Outer Protection Sheet Steel
Paint Matt Black Heat Resistant & Structured Blue Paint
Fixation & Closure Type Quick-Snap Fastener
Junction Box (Type) STAHL Series 8118
Ingress Protection IP66
Maximum Ambient Temperature -50ºC to +55ºC
Maximum Connecting Cross Section 4mm²
Terminals 8
Glands 4 x M25
Housing Material Polyester Glass Fibre Reinforced
Connection Lead Length 2m
Lead Cross Section 4mm²
Maximum Operating Temperature 180ºC
Connection Lead Insulation Material Silicone
Thermostat (Type) RAYSTAT-EX-02
Sensor Type Capillary Type
Controller Range -4ºC to +163ºC
Ingress Protection IP65
Maximum Ambient Temperature -40ºC to +60ºC
Housing Material Aluminium
Frequency 50-60Hz
Maximum Operating Voltage 277 Vac (~1ph)
Nominal Operating Voltage Depending on design
Nominal Power Depending on design
Maximum Operating Temperature 65ºC to 120ºC (depends on heating cable type and temperature class)
Options Design with other housing materials (e.g stainless steel). Additional insulated lid for reduction of heat loss.
Alternative junction box type JBU-100-L-E with signal lamp for operating status (ON/OFF)



ATEX & IECEX  Drum Heater Enclosure (T2) – ISOPAD FIDR-SRX – Product Specification

Part Number For Standard Sizes (ltr) Height Inner Diameter (ID) (mm) Outer Diameter (OD) (mm) Nominal Power (W) Nominal Voltage (Vac) Weight (kg)
FIDR-SRX 200 990 650 770 3930 230 60
