Marechal DS HT Plugs & Sockets High Temperature Decontactors 400°C

plugs & sockets 400ºC

marechal ds ht

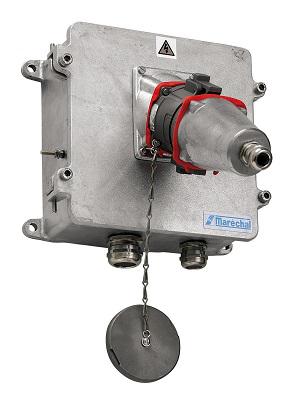

Marechal DS HT high temperature plugs & sockets are suitable for environments where the operating temperature can reach 400°C, for example tunnels, heavy industry and the extractive industry.

The DS HT electrical power connectors ensure excellent connection quality, are very robust and they are also able to withstand corrosion.

This range features high temperature connectors, silver contacts with metal braid and an ingress protection rating of IP66 meaning the enclosure is “dust tight” and protected against heavy seas or powerful jets of water. The DS HT also features a shock resistance rating of IK09 which means the decontactors are protected against 10 joules of impact or the equivalent to the impact of a 5 kg mass dropped from 200 mm above the impacted surface.

➡ Suitable for continuous use at 240 °C or 400 °C according to EN 12101-3.

high temperature decontactors

technical Specification

Proximity power supply of smoke accelerators or in high temperature environment	up to 240 °C
Max. operating temperature steady	240 °C/400 °C (2h)
Rated current In	125A
Ingress Protection Rating	IP66 (NF EN 60529)
Shock Resistance	IK09 according to NF EN 50102
Umax	690V
Maximum no. of contacts	3P+E
Breaking capacity	AC-22 (NF EN 60947-3)
Service terminals	3 terminals usually mounted on a steel base
Fire resistance	Electrical continuity of the main cable guaranteed to 400°C for 2 hours as the test program 5 of NF EN 12101-3 standard
Crimp cable wiring	6 mm² to 35 mm²
Terminal Wiring on socket side	10 mm² to 95 mm²
Internal and external Earth point	Inside and outside the enclosure
