Marechal DS1 Plugs & Sockets 30A 690V Decontactors (AC22 AC23)

Marechal DS1 Plugs & Sockets

Marechal DS1 Plugs & Sockets

plugs & sockets 30A

marechal ds1

Marechal DS1 plugs and sockets have a rated current of 30A and a maximum voltage of 690V. DS1 plugs and sockets are IP54 when the plug is connected and IP55 protected when the lid is closed.

Marechal DS plugs & sockets have an incorporated breaking capacity of AC-22 / AC-23 and have an impact resistant GRP casing. The DS1 also features a safety shutter (socket IP4X/IPXXD), silver-nickel butt contacts and metallic braid to comply with international standards.

Marechal DS1

Technical Specification

Rated Current (with wiring according to standard) 30A
Maximum Voltage 690V
IP Protection Lid Closed IP55
IP Protection Connected Plug IP54
Shock Resistance IK08
Ambient Temperature -40ºC to +60ºC
Flexible Wiring (Min-Max) 2.5 mm² – 6 mm²
Stranded Wiring (Min-Max) 2.5 mm² – 10 mm²
Other Wiring On Request
Keying Positions 24

Load Break Capability Of Decontactor

  • Comply with IEC EN 60309-1  – 30 A / 690 V
  • Load-break capability according to IEC EN 60947-3 / AC-22A – (30 A / 500 V) or (16 A / 690 V)
  • Load-break capability according to IEC EN 60947-3 / AC-23A – 30 A / 400 V
  • Short-circuit current Icc – 10 kA



Marechal DS1 Plugs 30A 690V Decontactors (AC22 AC23 IEC60309)

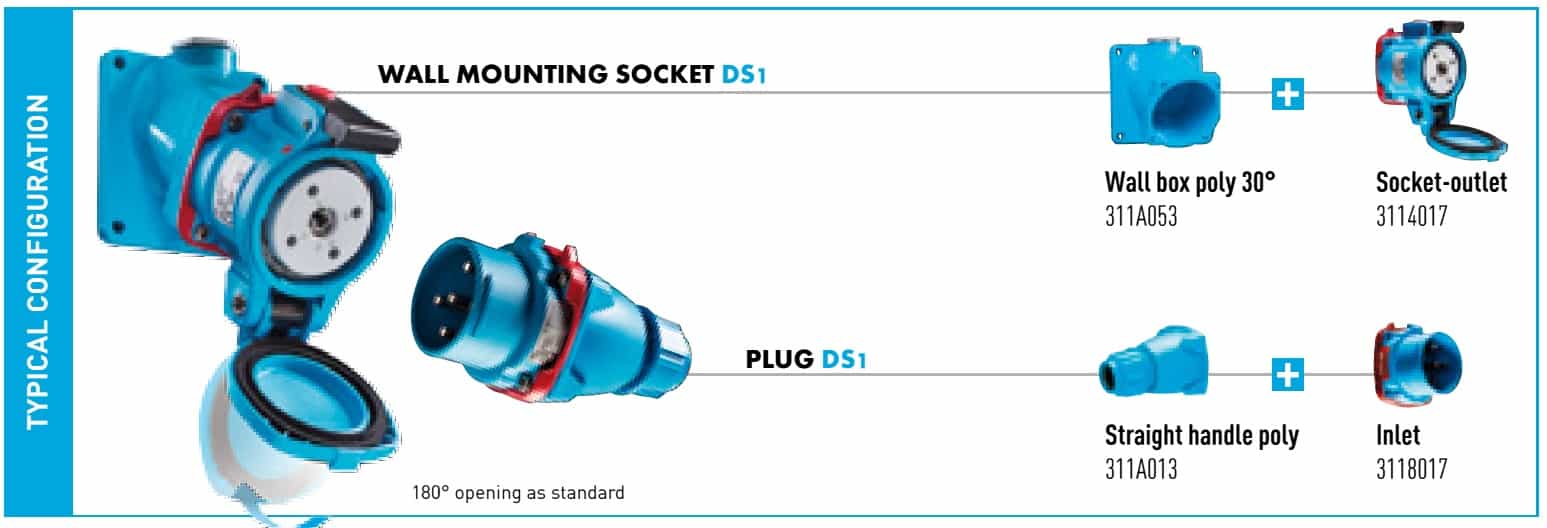

Marechal DS1 Plug Assembly manufactured from GRP with IP55 protection and 30amp current supply is configured using associated wall mounting socket, plug, wall box, outlet, inlet and handles.

Marechal DS1 – Socket Outlets & Inlets

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal’s DS range of plugs and sockets are suitable for rated currents from 30A up to 400A and maximum voltages from 690V up to 1000V.

Voltage 50Hz Polarity Marechal Socket Outlet (Female) DS1 30A Marechal Inlet (Male) DS1 30A
20-24V AC 2P 311408A 311808A
190-230V AC 3P+E 3114033 3118033
220-250V AC 1P+N+E 3114015 3118015
380-440V AC 3P+E 3114013 3118013
220-250V AC/ 380-440V AC* 3P+N+E 3114017 3118017
660-690V AC 3P+E 3114193 3118193
380-440V AC/  660-690V AC* 3P+N+E 3114197 3118197
*Dual-voltage socket outlet
