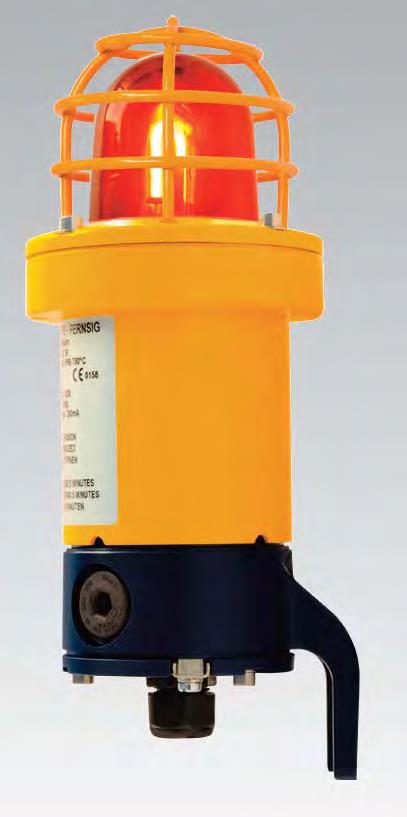

Eaton FHF dSLB20 Xenon Strobe Light
dSLB20 Xenon Strobe Light
Product: dSLB20 Xenon
Certification, temperature classification and hazardous area suitability depend on the selected product configuration.
The Eaton FHF dSLB20 is a xenon strobe light designed to provide a clear visual warning signal in potentially explosive areas.
The range is available with 5-joule and 15-joule flash-energy options and a flash frequency of approximately 60 flashes per minute. Different operating voltages and lens colours are available to support project-specific alarm and signalling requirements.
Certified variants are available for Zones 1, 2, 21 and 22. Product selection should be based on the required flash energy, voltage, lens colour, ambient temperature and complete hazardous area certification.
Explore the wider range of ATEX beacons for Zone 1 and Zone 2 hazardous areas
for LED, xenon, steady and rotating alternatives.

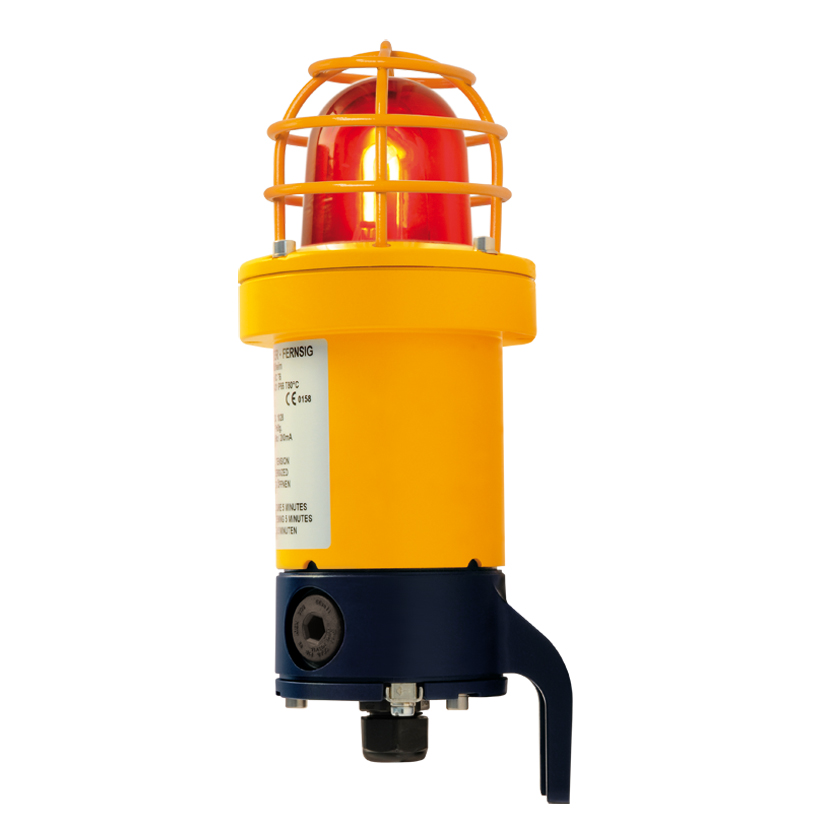

Eaton FHF dSLB20 Xenon Strobe Light
The dSLB20 xenon strobe provides a high-intensity visual warning for alarm, notification and process-signalling applications in hazardous areas.
Its xenon flash tube produces approximately 60 flashes per minute at a frequency of 1Hz. The product is available with 5J and 15J flash-energy configurations.
The unit is designed for continuous operation and is activated when the electrical supply is applied. Different DC and AC voltage options allow it to be integrated into a range of alarm and control systems.
The unit incorporates a flameproof aluminium housing, hardened borosilicate glass dome and an increased-safety terminal compartment. IP66/IP67 ingress protection makes the enclosure suitable for indoor and outdoor installation.
A stainless-steel mounting plate with an integrated junction box is available for creating a combined signalling assembly.
This product may also appear in legacy specifications as the MEDC dSLB20 xenon beacon.
There’s also a Eaton FHF dSLB20 LED Signal Light version.
dSLB20 5J & 15J Flash-Energy Options
The dSLB20 is available in two flash-energy levels. The required output should be selected against the viewing distance, ambient lighting, lens colour, alarm design and project specification.
dSLB20 5 Joule
The 5J version is available for 12V DC, 24V DC, 80V DC, 115V AC and 230V AC supplies.
It provides the same approximate 1Hz flash frequency with lower current consumption than the equivalent 15J configuration.
dSLB20 15 Joule
The higher-output 15J version is available for 24V DC, 80V DC, 115V AC and 230V AC supplies.
It is intended for applications requiring increased flash energy or stronger visual warning performance.
| Flash Energy | Flash Frequency | Average Flash-Tube Life |
|---|---|---|
| 5J | Approximately 60 flashes/minute at 1Hz | Approximately 5 million flashes |
| 15J | Approximately 60 flashes/minute at 1Hz | Approximately 5 million flashes |
Hazardous Area Certification
Certified dSLB20 variants are available for explosive gas and combustible-dust atmospheres. The final marking and permitted temperature range must be confirmed against the selected product code.
Read more about ATEX and IECEx certification of hazardous area equipment.
See the H&P guide to hazardous area zones and explosive atmosphere classification.
Housing and Construction
The xenon flash electronics are contained within a compact flameproof aluminium housing. The enclosure can be surface-varnished or powder-coated and is normally supplied in a yellow and blue finish.
A hardened borosilicate glass dome protects the xenon light source. A stainless-steel protection cage helps guard the glass against accidental impact.
The terminal compartment uses increased-safety protection, creating a combined Ex d e product construction.
The dSLB20 can be installed indoors or outdoors and can operate in any mounting orientation.
Available Voltages
Different DC and AC configurations are available for the 5J and 15J versions. The electrical supply, voltage tolerance and current consumption must be confirmed when ordering.
| Flash Energy | Nominal Voltage | Voltage Range | Current | Article Number |
|---|---|---|---|---|
| 15J | 24V DC | 21–53V DC | 1A | FHF 224 963 (–) |
| 80V DC | 72–132V DC | 250mA | FHF 224 965 (–) | |
| 115V AC | 103–127V AC | 200mA | FHF 224 966 (–) | |
| 230V AC | 207–253V AC | 200mA | FHF 224 997 (–) | |
| 5J | 12V DC | 10–14V DC | 600mA | FHF 224 912 (–) |
| 24V DC | 21–53V DC | 280mA | FHF 224 913 (–) | |
| 80V DC | 72–132V DC | 90mA | FHF 224 915 (–) | |
| 115V AC | 103–127V AC | 135mA | FHF 224 906 (–) | |
| 230V AC | 207–253V AC | 130mA | FHF 224 907 (–) |
Lens Colours
Available glass-dome colours include transparent, red, amber, green and blue. The required colour should be selected according to the alarm philosophy or project specification.
| Lens Colour | Colour Code |
|---|---|
| Transparent | 01 |
| Red | 02 |
| Amber | 03 |
| Green | 04 |
| Blue | 05 |
Eaton FHF dSLB20 Xenon Technical Specifications
Eaton FHF dSLB20 Ordering Information
The full ATEX or IECEx product reference is completed by appending the required two-digit lens-colour code to the selected article number.
Example: FHF 224 963 01 identifies a transparent 24V DC, 15J dSLB20 strobe.
Provide the following information when requesting a quotation:
- 5J or 15J flash energy
- Required nominal voltage
- Lens colour
- Hazardous area zone and gas or dust group
- Required temperature class
- Minimum and maximum ambient temperature
- Mounting and cable-entry requirements
- Mounting-plate or junction-box requirement
- Required certification and destination market
dSLB20 Xenon Product Selection Support
Send Thorne & Derrick the required flash energy, voltage, lens colour, hazardous area classification and installation conditions.
Eaton FHF dSLB20 Xenon FAQs
What is the difference between the 5J and 15J dSLB20?
The difference is the flash energy produced by the xenon tube. The 15J version provides higher flash energy but generally consumes more electrical current.
How frequently does the dSLB20 flash?
Both 5J and 15J variants flash approximately 60 times per minute at a frequency of 1Hz.
Can the dSLB20 be installed outdoors?
Yes. Its IP66/IP67 enclosure is suitable for indoor and outdoor installation when correctly installed with suitable cable-entry equipment.
Which hazardous area zones are supported?
Certified variants are suitable for gas Zones 1 and 2 and combustible-dust Zones 21 and 22.
Is the dSLB20 LED page the same product?
No. This page covers the xenon strobe version with 5J and 15J flash-energy options. The dSLB20 LED uses LEDs and provides steady, blinking, strobe and electronically rotating modes.
Eaton FHF dSLB20 Xenon Downloads

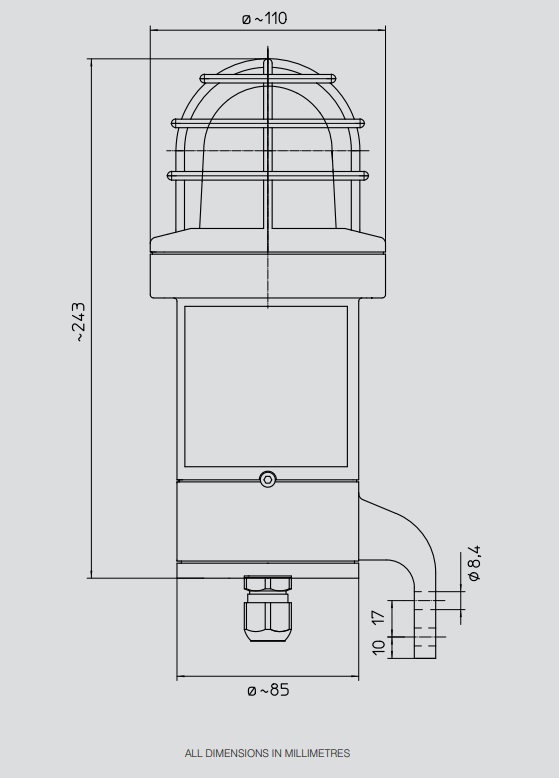

Download the current Eaton datasheet for flash-energy options, electrical data, certification, dimensions and ordering information.
Technical data, approvals and ordering references can be revised. Confirm the current product documentation and equipment marking when placing an order.
Request an Eaton FHF dSLB20 Xenon Quotation
Contact Thorne & Derrick with the required flash energy, operating voltage, lens colour, hazardous area classification, temperature class and installation conditions.
