MEDC XB11 Hazardous Area Beacons

MEDC XB11 | ATEX BEACONS

ZONE 1 & ZONE 2 HAZARDOUS AREAS

MEDC XB11 are ATEX Beacons that have been designed for use in potentially Explosive Atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous areas.

The glass reinforced polyester enclosures are suitable for use offshore or onshore, where light weight combined with corrosion resistance is required and can be ordered from Thorne & Derrick with MEDC call points for integration into fire detection systems in the explosive atmosphere industries.

The beacon housing of the ATEX beacon is manufactured completely from a UV stable, glass reinforced polyester. Stainless steel screws and mounting bracket are incorporated ensuring a totally corrosion free product.

The high output hazardous area Xenon beacon with explosion protection concept Ex d can be painted to customer specification and supplied with identification labels.

Contact Thorne & Derrick for customer service, competitive quotations and availability from stock for the MEDC range of sounders, including MEDC XB11, for safe use in hazardous areas with explosive atmospheres.

ORDERING DETAILS

MEDC XB11 | EX D 5 JOULE XENON BEACON

The MEDC XB11 hazardous area beacon is available in a choice of variants with mounting options for weatherproof and ordinary locations.

• XB11AU (ATEX & UL)
• XB11B (Ex d)
• XB11UL (UL)
• XB11UW (Ordinary locations)
• XB11W (Weatherproof only)

MEDC

The MEDC range of sounders and beacons from the Crouse Hinds series of Signalling & Alarms – a comprehensive range of Explosion Proof call points are also available with ATEX & IECEx certification and explosion protection to both Ex d (flameproof) and Ex ia (Intrinsically Safe) applications.

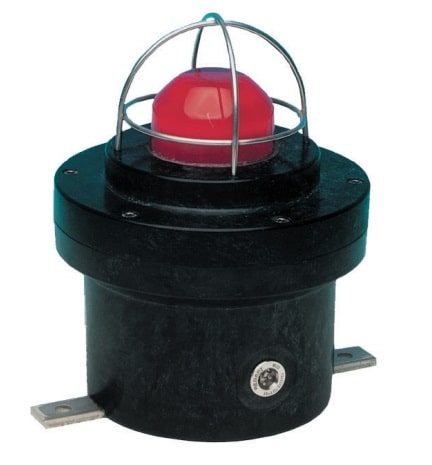

Eaton MEDC XB11

ATEX Beacons Zone 1 & Zone 2

ATEX Certified & Approved

Features

• Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) Hazardous Areas
• UL Listed for USA and Canada
  • – Hazardous Locations with Explosive Atmospheres
  • Class I, Div 2, Groups C & D.
  • Class I, Zones 1 & 2, AExd IIB T4/T5.
  • Ordinary locations: Visual-Signal Device.
• Explosion Protection | Exd IIB T4, T5 & T6.
• ATEX approved, Ex II 2GD.
• BASEEFA certified.
• TR CU certified.
• Chinese (CQST) certified.
• Brazilian (Inmetro) certified.
• IP66 & IP67 Ingress Protection
• Certified temperature: –55°C to +70°C.
• Corrosion resistant GRP.
• Optional stainless steel backstrap.
• Various lens colours for ATEX beacons
• Optional lens guard.
• Optional telephone initiation.
• 2 x M20 cable entries or 2 x 1/2″ NPT*.
• Earth continuity option (model dependent).
• Filament version (20W) available†.
• Fluorescent version (10W) available†.
• Beacon/Sounder Combination Units for hazardous area beacons are available.

*Model dependent.

†See FL11, FB11, FL12, FB12 datasheet.

Eaton MEDC XB11 – Dimensions

ATEX Beacons Zone 1 & Zone 2

Nominal Voltage

Thorne & Derrick distribute intrinsically safe, flameproof and explosion proof loudspeakers, beacons and strobes, status lights and call points for warning signal systems in the hazardous area industries to suit all voltage requirements.

Note: The Cd figures are for a clear lens @ 1Hz flash rate

MEDC XB11 Hazardous Area Beacon

Technical Specification

Should you require any further information to enable the selection or specification of explosion proof beacons and sounders with LED light source for use in potentially explosive atmospheres please contact us.

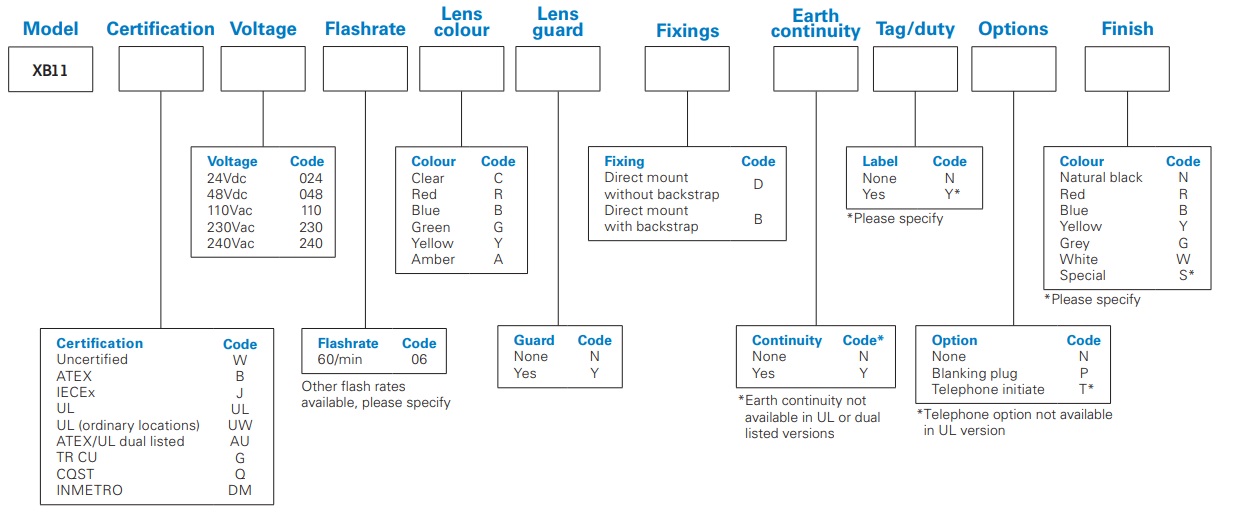

Eaton MEDC XB11 – Ordering Requirements

The following code is designed to help in selection of the correct MEDC hazardous area beacon with ATEX approval and certification. Build up the part number by inserting the code for each component into the appropriate box – contact our sales team for support and advice covering an extensive range of standard and innovative ATEX & IECEx equipment for use in explosive atmospheres.

Eaton MEDC XB11 – Ordering Information
