Hazardous Area Push Control Station – ATEX Certified

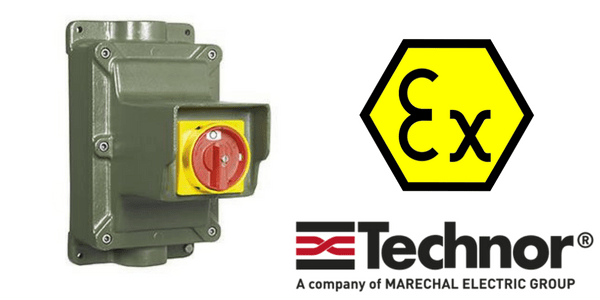

Technor EPKZM (Aluminium)
ATEX Zone 2 Control Stations
- Control Station Material: Aluminium with low content of copper
- IP Rating: IP66/IP67 with flanged joint coated with silicone grease
- Ambient Temperature Range: -30°C to +55°C
- Approvals: INERIS 02ATEX0027X
TR CU
- Surface Treatment: Painted by green colour polyurethane painting cycle RAL6003 (other colour available upon request)
- Thread: N° 2 entries Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125
- Standard Certificate Label: Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory.
- Accessories Available: Internal anticondensate painting
Traffolyte/Stainless steel certificate labelHot deep galvanized steel or Stainless Steel AISI316 stand / canopy.
ATEX Certification Code
- II 2 GD
- Ex d IIB T6 Gb
- Ex tb IIIC T85°C Db IP66/IP67
Hazardous area control station is designed to meet the requirements for use in industrial plants for indoor and outdoor applications and are used to house motor protector circuit breakers up to 63A.

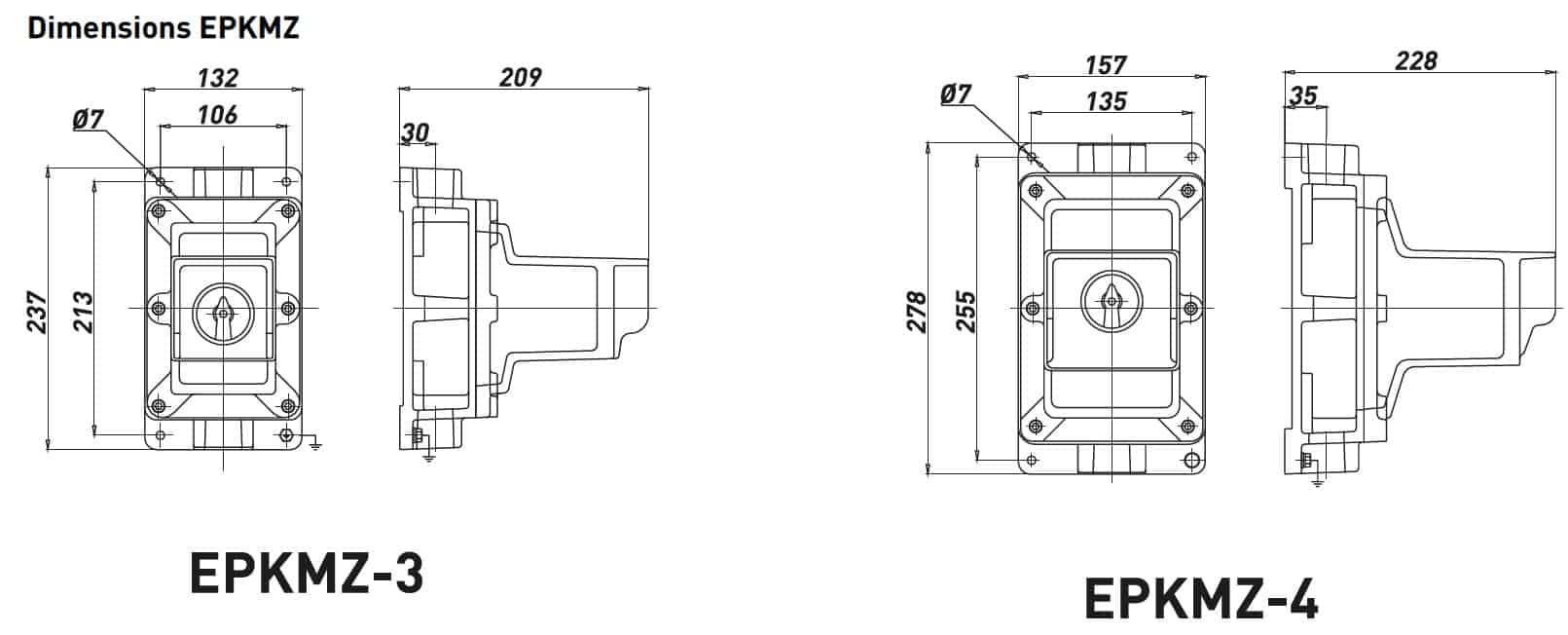

Technor EPKZM Push Button Control Stations – Dimensions
| Technor Part Number | Code | Entries | Weight (kg) |
| EPKSM-3 – Red/Yellow Handle 55X55 | B010332100023 | 1″ UNI-6125 | 3.25 |
| EPKSM-3 – Black Handle | B010331100023 | 1″ UNI-6125 | 3.25 |
| EPKSM-3 – Red/Yellow Handle 55X55 | B010332100022 | 1″ NPT | 3.25 |
| EPKSM-3 – Black Handle | B010331100022 | 1″ NPT | 3.25 |
| EPKSM-3 – Red/Yellow Handle 55X55 | B010332100021 | M32X1.5 | 3.25 |
| EPKSM-3 – Black Handle | B010331100021 | M32X1.5 | 3.25 |
| EPKSM-4 – Red/Yellow Handle 72X72 | B010343100023 | 1″ UNI-6125 | 4.60 |
| EPKSM-4 – Black Handle | B010341100023 | 1″ UNI-6125 | 4.60 |
| EPKSM-4 – Red/Yellow Handle 72X72 | B010343100022 | 1″ NPT | 4.60 |
| EPKSM-4 – Black Handle | B010341100022 | 1″ NPT | 4.60 |
| EPKSM-4 – Red/Yellow Handle 72X72 | B010343100021 | M32X1.5 | 4.60 |
| EPKSM-4 – Black Handle | B010341100021 | M32X1.5 | 4.60 |
