Rotronic Hygrolog HL-1D Humidity & Temperature Measurement Data Logger

Rotronic Hygolog HL-1D Data Logger

Rotronic Hygrolog HL-1D Data Logger

Rotronic Hygrolog HL-1D Data Logger is a compact, dependable and inexpensive humidity and temperature measurement data logger.

Based on Airchip 3000 technology, the unique features of the Rotronic Hygrolog HL-1D such as the two interchangeable HygroClip digital or analog probe inputs.

Typical applications and industries include HVAC, food industry, building services equipment, paper, textile and pharmaceutical.

Rotronic Hygrolog HL-1D Humidity & Temperature Measurement data logger

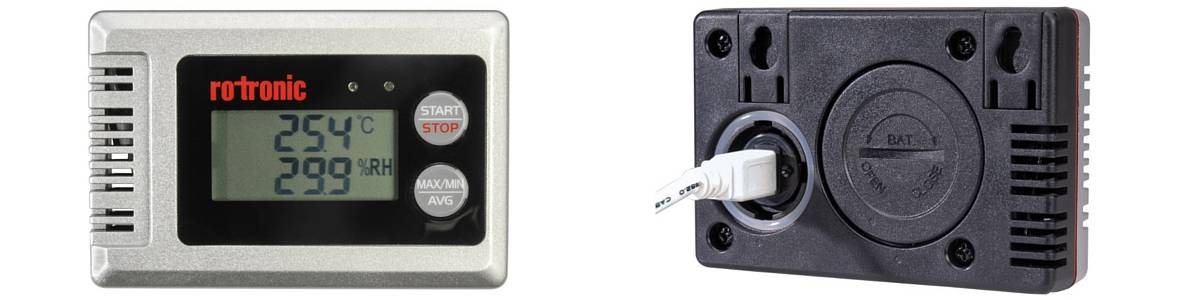

Rotronic Hygrolog HL-1D Humidity And Temperature Data Logger

Rotronic Hygrolog HL-1D Humidity And Temperature Data Logger



Rotronic Hygrolog HL-1D Humidity And Temperature Data Logger – Logging Intervals
Log-IntervalStorage Capacity Reached After
30 sec11 days 2 hours
5 min111 days
30 min1 year 301 days
45 min2 years 270 days
60 min>3 years

Key user functions of the Rotronic Hygroflex8 HF8 humidity and temperature transmitter include:

  • 2 interchangeable HC2 or analog probes
  • Range of application electronics: -40…60 °C / 0…100 %rh
    -10…60 °C with LCD
  • Digital outputs, also combinable with analog outputs
  • Analog inputs (U/I)
  • Data logging, up to 10‘000 measured values
  • Relay outputs
  • Use as simulator for system validation *
  • Service interface

Rotronic Hygrolog HL-1D Humidity And Temperature data logger

Product Specifications

Probe AccuracyMeasurement RangeWeightBattery LifeDisplay TypeCurrent ConsumptionBettery Indicator
±0.8 %rh / 0.1 C (typically value-20…70 °C / 0…100 %rh85g3 yearsLCD, 2 lines, resolution 1 decimal1 x CR2 batteryYes

Storage CapacityIP RatingComms InterfaceHumidity SensorAdjustment Accuracy At 23±5°C
32,000 data point memory (RH & T)IP67Mini USBRotronic Hygromer IN-1Humidty 1-Point±3.0 % RH ± 0.3°c

ROTRONIC – HUMIDITY MEASUREMENT IN THE PHARMACEUTICAL INDUSTRY

The pharmaceutical industry is one of the largest users of humidity measurement equipment. Most drugs are sensitive to variations in humidity and moisture levels, so these need to be considered and controlled using measurement instruments, probes and sensors for the final products to be consistent in quality and performance.

Humidity Measurement Applications

Humidity instruments are used to both control (transmitters) and monitor (transmitters or data loggers) these conditions during “accelerated conditions” drug testing.

Production machines, driers, tableters, and coaters are all sensitive to humidity – quality control requires machine monitoring, area monitoring and final product Equilibrium Relative Humidity (ERH) measurement.

Clean room environments are humidity critical – environmental monitoring system (EMS) and measurement is validated to conform with regulatory requirements.
