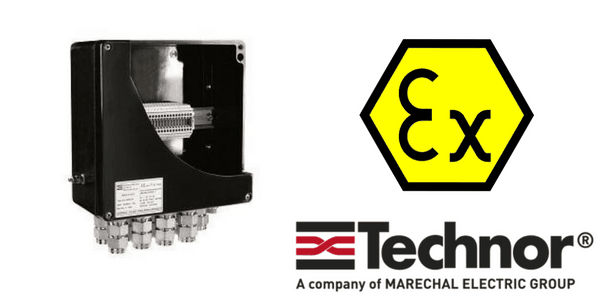

Technor AQ-AR GRP is a hazardous area junction box which offers Ex-e IIC mode of protection and is suitable for use in hazardous areas and chemical agents environments, sea water corrosion resistance and extreme low and high temperatures.
Technor AQ-AR GRP are classified to international hazardous area classifications with ATEX & IECex certification, with ingress protection IP66 and an operational ambient temperature range of -50°C to +60°C.
AQ-AR GRP junction boxes are used to house Ex e and Ex i terminals and the maximum number of terminals change on the base of the terminals section, enclosure operating temperature and the required temperature class.
The EFE prefix is used for Ex de push button station execution and enclosure can be equipped with:
- Standard and emergency push buttons;
- Selector switches;
- Pilot lights;
- Measurement instruments;
- Electric and electronic equipment Ex de certified.
Technor AQ-AR GRP Junction Box – Technical Features
| Material | GRP (Glassfiber reinforced polyester) |
| IP Rating | IP66 |
| Ambient Temperature Range | -50°C to +60°C (ATEX) -50ºC to +60ºC (IECEx – up to +95ºC for some special models) |
| Approvals |
IMQ 08 ATEX 028X, IMQ 16 ATEX 004U
IECEx IMQ 15.0002X, IECEx IMQ 15.0010U
TR CU
|
| Standard Certificate Label | Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory. |
| Accessories Available Upon Request |
Hinges
Drain/breather valve
Traffolyte/Stainless steel certificate label
Internal mounting plate
Earth continuity plates
Passing through earth bolt.
|
Technor AQ-AR GRP Junction Box – GRP
| Technor Part Number | Dimensions | Weight (kg) | ||||
| A | B | C | D | E | ||
| AQ-080806P | 75 | 80 | 55 | 45 | 48 | 0.23 |
| AQ-081106P | 75 | 110 | 55 | 45 | 98 | 0.295 |
| AQ-121209P | 120 | 122 | 90 | 82 | 106 | 0.75 |
| AQ-122209P | 120 | 220 | 90 | 82 | 204 | 1.06 |
| AQ-161609P | 160 | 160 | 90 | 110 | 140 | 1.29 |
| AQ-162609P | 160 | 260 | 90 | 110 | 240 | 1.71 |
| AQ-163609P | 160 | 360 | 90 | 110 | 340 | 2.15 |
| AQ-252612P | 250 | 255 | 120 | 200 | 235 | 2.65 |
| AQ-254012P | 250 | 400 | 120 | 200 | 380 | 3.65 |
| AQ-256012P | 250 | 600 | 120 | 200 | 580 | 5.235 |
| AQ-414012P | 405 | 400 | 120 | 355 | 380 | 5.58 |
| AQ-414020P | 405 | 400 | 200 | 355 | 380 | – |
| AQ-406025P* | 400 | 600 | 250 | – | – | – |
*The standard enclosure is complete with hinges on the long side.

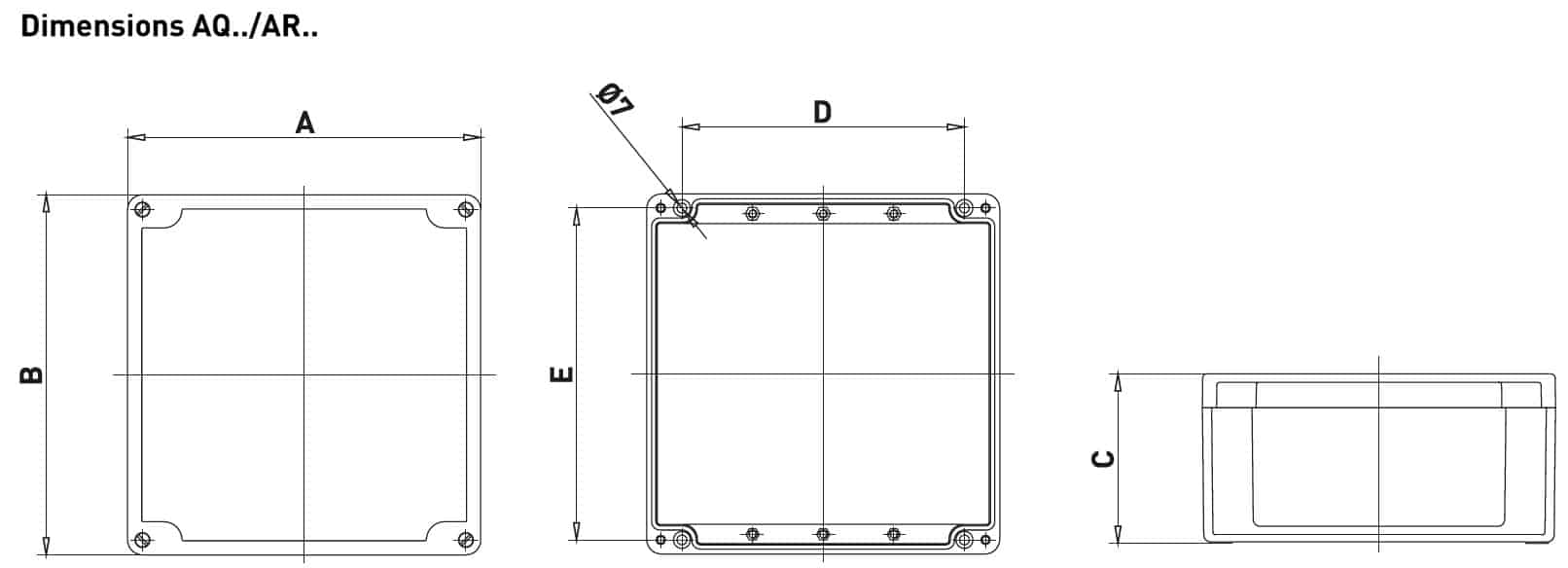

Increased Safety Hazardous Area Technor AQ-AR GRP Junction Boxes – Dimensions
HAZARDOUS AREA CERTIFICATION & MARKING FOR ENCLOSURES
II 2 GD
- Ex e IIC Gb / Ex ia Ga IIC T(**)
- Ex tb IIIC T(**) Db IP66
- ** T6/T85°C, T5/T100°C, T4/T135°C
under IEC Ex directive, junction boxes and enclosures are suitable for IIC group of gases/dusts only
