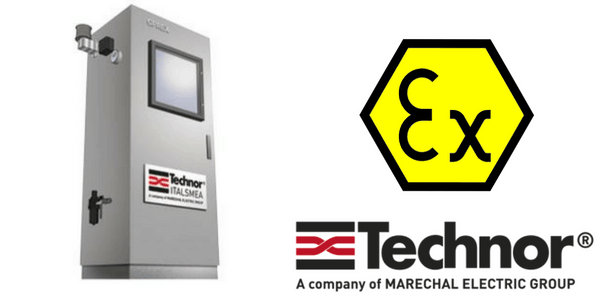

Explosion Proof Hazardous Area Technor QPREX Pressurised Cabinet
Explosion Proof Hazardous Area Technor QPREX Pressurised Cabinet
Technor QPREX is a hazardous area pressurised cabinet which is a modular building system which allows for customised volume up to 10m³ and is suitable for use in hazardous areas.
Technor QPREX is classified to international hazardous area classifications with ATEX, IECex and TRCU certification, with ingress protection IP65 and an operational ambient temperature range of -50°C to +60°C.
QPREX pressurised panels prevent the build up of heat and moisture from a continuous influx of purging gas ensuring a greater life cycle of the equipment and new gasket technology minimises the dispersion of inactive gas, increasing the efficiency of the pressurised system and reducing operating costs.
The QPREX pressurised cabinet has quick and easy access for opening and maintenance and when the doors are open the system disconnects. After the washing cycle, the system will start again automatically.
Technor QPREX Pressurised Cabinet – Technical Features
| Material | AISI 316 L, AISI 304 or painted sendzimir steel |
| IP Rating | IP65 |
| Ambient Temperature Range | -50°C to +60°C |
| Approvals |
TÜV 15 ATEX 158015 (pxb type of protection)
TÜV 15 ATEX 158016 (pzc type of protection)
IECEx TUN 15.0019 (pxb and pzc types of protection)
|
| Gaskets | EPDM or Silicone |
| Dimensions | From 0.6m³ to 10m³ |
| Tension | Up to 24kVAC / 1500VDC |
| Frequency | Up to 1000Hz |
| Pressurisation System | Technor Italsmea TEX1 (zone 1- SIL2 *) or TEX 2 (Zone 2) . Available with component certificate |
| Climatisation | Vortex, Air conditioner, Cooling/heating water systems, Anticondensate heater. |

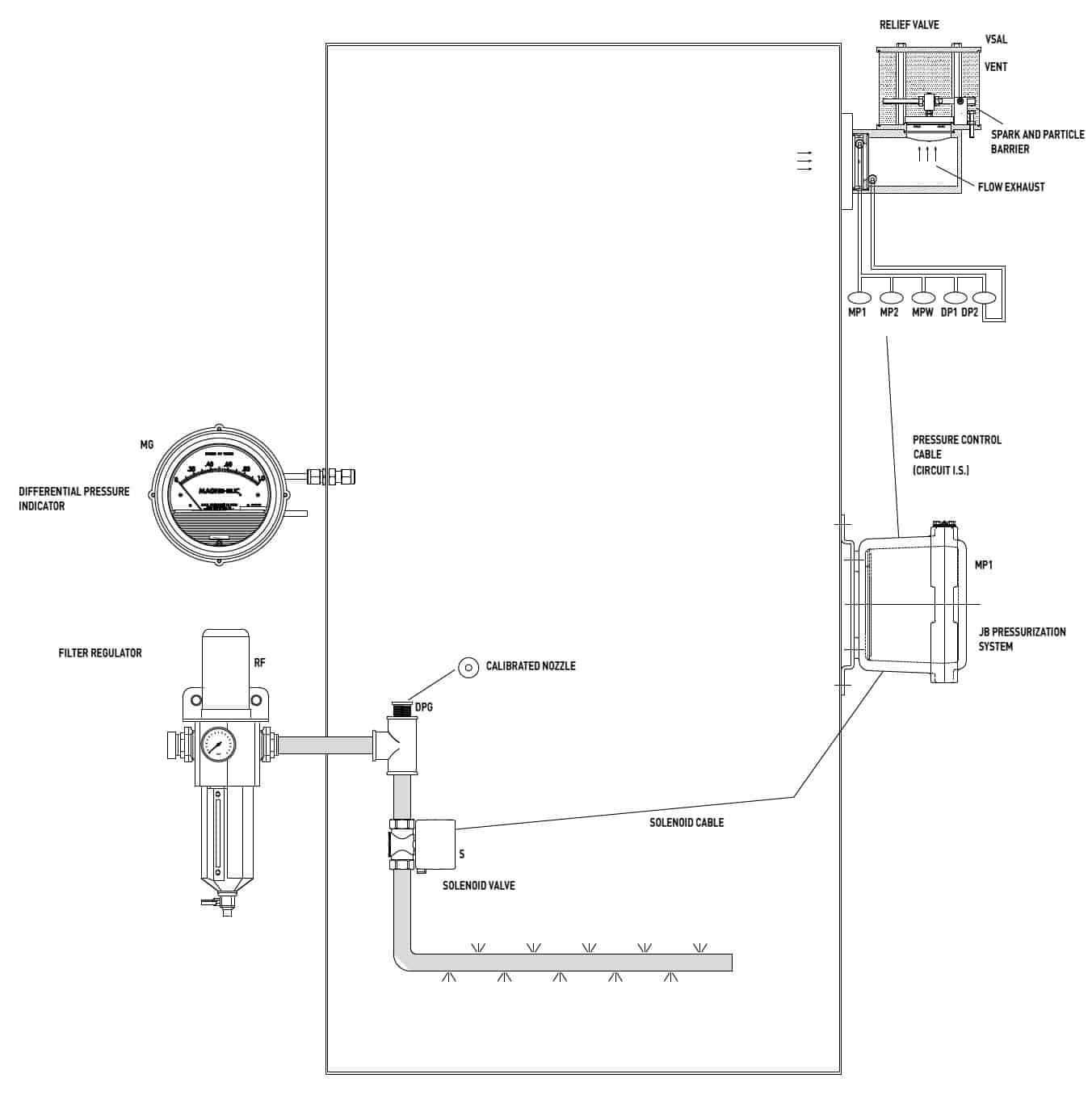

Explosion Proof Hazardous Area Technor QPREX Pressurised Cabinet – Illustration
HAZARDOUS AREA CERTIFICATION & MARKING FOR ENCLOSURES
ATEX
- Ex px/pz [ia Ga] IIC T6 or T5 or T4 Gb/Gc
- Ex px/pz [ia Ga] IIIC T85°C or T135°C Db/Dc
IECEx
- Ex pxb/pzc [ia Ga] IIC T6 or T5 or T4 Gb/Gc
- Ex pxb/pzc [ia Ga] IIIC T85°C or T100°C or T135°C Db/Dc
Explosion Proof Hazardous Area Technor QPREX Pressurised Cabinet
Download
