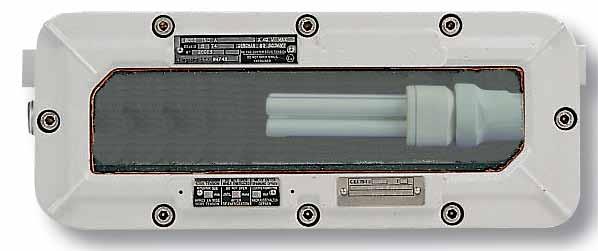

Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires Flameproof – Appleton HBDA

Appleton HBDA is part of the Zone 1 and Zone 2 (21/22) hazardous area bullkhead ATEX lighting range and have a compact rectangular design and have a flameproof rating and are ideal for the illumination of stairways, small areas and emergency exits.

The ATEX certified bulkhead luminaires are available in incandescent and fluorescent versions.

Zone 1 and Zone 2 (21/22) Hazardous Area Bulkhead Lighting ATEX

Features & Benefits

• Lamps (not supplied):
  – Incandescent 2 x 40 W
  – Compact fluorescent 1 x 18/20 W
• E27 lampholder
• Luminaire operates in any position
• Fixing by 2 brackets for the hazardous area lighting
• Connection on two terminals 1 x 4 mm2 (0.002 x 0.006 in2)
• Internal earth 1 x 4 mm2 (0.002 x 0.006 in2)
• External earth 1 x 4 mm2 (0.002 x 0.006 in2)
• Two M20 threaded entries
  – Supplied with one aluminum blanking plug

Zone 1 and Zone 2 (21/22) Hazardous Area Bulkhead Lighting ATEX

Appleton HBDA

Technical Data

Lamp	Cable Entries	Weight (kg)	Volume dm³	Appleton Catalog Number	Old Catalog Number	Pack
1 x 18/20W Compact Fluorescent	M20	5.7	9	HBDAF118	094749	1
2 x 40W Incandescent	M20	5.7	9	HBDAI240	094748	1



ATEX/IECEx Certifications for hazardous areas

• ATEX / IECEx:
  – Zone 1 & 2 – 21 & 22
  – II 2 GD
  – IP66 – IK09

Data Sheets

• Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires Flameproof – Appleton HBDA
  Download
