Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires Flameproof – Appleton HBDC

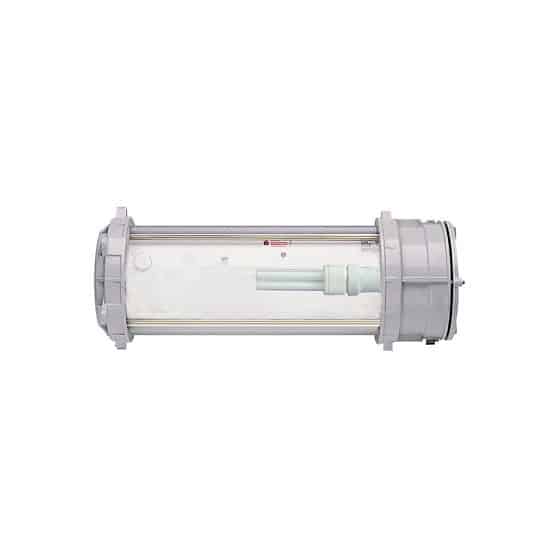

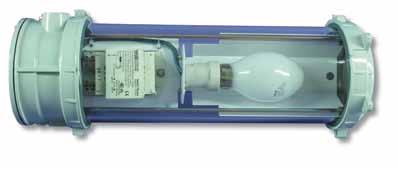

Appleton HBDC is part of the Zone 1 and Zone 2 (21/22) hazardous area bullkhead ATEX lighting range and have a compact cylindrical design and have a flameproof rating and are ideal for the illumination of stairways, small areas and emergency exits.

The ATEX certified bulkhead luminaire’s end cap and cover are anticorrosion treated Zamak with gray paint. Sealed tube is toughened glass with a white painted galvanized steel external reflector, and zinc plated steel guard

Zone 1 and Zone 2 (21/22) Hazardous Area Bulkhead Lighting ATEX

Features & Benefits

• Lamps (not supplied):
  – Incandescent 2 x 40 W
  – Compact fluorescent 1 x 18/20 W
• E27 lampholder.
• Luminaire operates in any position.
• Hazardous area lighting with fixing by 2 brackets.
• Connection on two terminals 1 x 4 mm² (0.002 x 0.006 in²).
• Internal earth 1 x 4 mm² (0.002 x 0.006 in²).
• External earth 1 x 4 mm² (0.002 x 0.006 in²).
• Two M20 threaded entries.
  – Supplied with one aluminum blanking plug.

Zone 1 and Zone 2 (21/22) Hazardous Area Bulkhead Lighting ATEX

Appleton HBDC

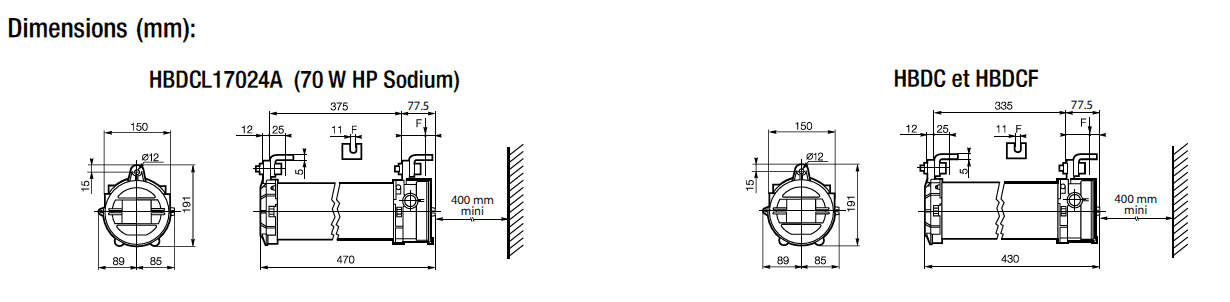

Technical Data

Lamp	Lampholder	Voltage	Weight (kg)	Volume dm³	Appleton Catalog Number	Old Catalog Number	Pack
2 x 40W Inc (lamp not supplied)	E27	N/A	7.1	31	HBDCI240	094716	1
70W HP Sodium (lamp not supplied)	E27	230/240 Vac 50Hz	7.1	33	HBDCL17024A	094717	1
1 x 8W Fluo	G5	24Vdc	8.3	31	HBDCF10802D	094730	1
1 x 8W Fluo	G5	48Vdc	8.3	31	HBDCF10804D	094731	1
1 x 8W Fluo	G5	110Vdc	8.3	31	HBDCF10811D	094732	1
1 x 8W Fluo	G5	230/240 Vac 50/60Hz 198/254 VDC	8.3	31	HBDCF10824B	094733	1
2 x 8W Fluo	G5	230/240 Vac 50/60Hz 198/254 VDC	8.3	31	HBDCF20824B	094734	1
1 x 18/20W Compact Fluo (lamp not supplied)	E27	N/A	7.1	33	HBDCF118	094718	1



ATEX/IECEx Certifications for hazardous areas

• ATEX / IECEx:
  – Zone 1 & 2 – 21 & 22
  – II 2 GD
  – IP66/68 (10M)
  – IK08

GOST also available.
