Guide To Selecting The Correct Raytec Spartan ATEX Lighting | Zone 1 & Zone 2

Published 24 Sep 2019

Raytec

Raytec Spartan ATEX Lighting | Hazardous Area Lighting Zone 1 & Zone 2

Raytec Spartan

Stocked & Distributed by Thorne & Derrick International

Even though every application is different, for the ease of monitoring and specification each hazardous area is classified as a particular level or “zone”. As a result, all hazardous area lighting must be designed with hazardous area zones in mind, as the “zone” governs the level of protection and precaution required.

It is imperative to know which zone you are working in, so that you can specify the most appropriate equipment.

The Raytec SPARTAN range includes dedicated luminaires for both Zone 1 and Zone 2 areas as well as industrial applications. SPARTAN is a full range of Ex LED lighting approved for all ATEX and IEC Ex Zone 1 and Zone 2 hazardous area environments, including UL /CSA C1D2 installations. Now also UKCA approved with UKEX rating.

Using Raytec’s product colour identifiers and part code identifiers you can select the appropriate SPARTAN product for your application.

➡ More information Flood Emergency Luminaires & Hazardous Area Light Fittings

Hazardous Area Classification Overview SPARTAN Product Colour Identifier SPARTAN Part Code Identifier Image
Zone 0 Explosive atmosphere is present continuously for long periods of time or will frequently occur. N/A N/A N/A
Zone 1 Explosive atmosphere is likely to occur occasionally in normal operation. It may exist because of repair, maintenance operations, or leakage. Silver SPX Standard variant Raytec SPX Standard Variant
Emergency variant

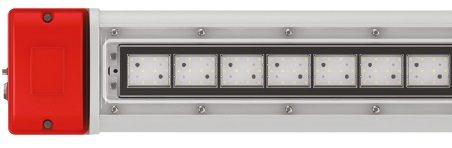

Raytec SPX Emergency Variant
Zone 2 Explosive atmosphere is not likely to occur in normal operation but, if it does occur, will persist for a short period only Grey SPZ Standard variant

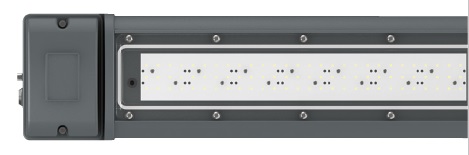

Raytec SPZ Standard Variant
Emergency variant

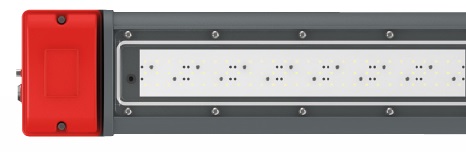

Raytec SPZ Emergency Variant
Industrial No explosive atmosphere White SPI Standard variant

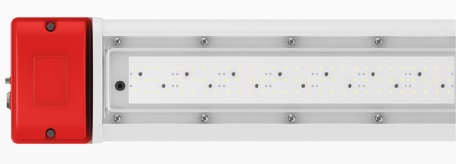

Raytec SPI Emergency Variant
Emergency variant

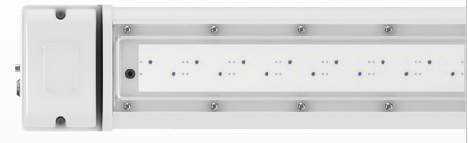

Raytec SPI Emergency Variant

Hazardous Area Zone 1 Zone 2 ATEX
