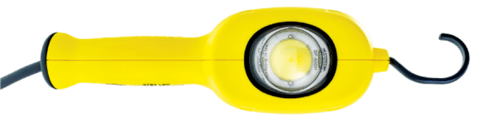

Wolf SP-600 ATEX LED Inspection Leadlamp
Hazardous Area Lighting
Wolf SP-600
ATEX LED Inspection Leadlamp | Hazardous Areas Zone 1 & 2, Zone 21 & 22
The SP-600 ATEX LED Inspection Leadlamp from Wolf is a cable-powered, versatile and lightweight handheld light with an impressive LED light output, making it ideal for inspections and work activities within ATEX certified hazardous areas.
Suitable for use in hazardous area Zone 1 & 2 as well as Zone 21 & 22, it has an exceptional, even, ultra-wide angle light which minimises shadows and enhances visibility to provide optimum illumination when working in close proximity. With a 360° swivel hook, the Wolf SP-600 can be suspended for hands-free use or magnet mounted using optional accessories.
This ATEX leadlamp is extremely robust and durable, with an impact resistant anti-static enclosure. It has an impact resistance rating of IP67 and has a scratch and chemical resistant polycarbonate hardcoat lens which means the LED lamp can withstand the rigours of heavy industrial use. Further protection is possible by fitting a fully certified stainless steel cage guard for enhanced mechanical protection, making it ideal for use in the most demanding conditions.
Handlamps | Torches | Headtorches | Floodlites | Tank Lighting | Transformers | Splitter Boxes | Cable Reels
Wolf SP-600 ATEX LED Inspection Leadlamp
technical Specification
The Wolf SP-600 leadlamp range is CE marked to the ATEX directive and IECEx certified safe for use in Zone 1 potentially explosive gas atmospheres, where a T4 temperature class permits, and Zone 21 potentially explosive dust atmospheres, with a maximum surface temperature of 95°c, as well as Group I mining applications.
A ‘fitted for life’ high power LED light source produces a forward facing, high efficiency output of up to 470 lumens – The large diffused light source minimises eye discomfort when viewed directly.
Lightweight, compact and ergonomically friendly, these Inspection Leadlamps are designed for handheld use, with an “easy-grip” handle for user comfort and all lamps are fitted with 10m HOFR cable as standard.
The Leadlamp is available in three voltage input ranges:
- Wolf SP-600H – High 90-264VAC for general applications,
- Wolf SP-600L – Low 18-54VAC/20-54VDC,
- Wolf SP-600EL – Extra low 9-16VAC/DC for use in confined space applications, such as metal tanks.
| Product Reference |
SP-600H | SP-600L | SP-600EL | |
|---|---|---|---|---|
| Product Description |
ATEX LED Inspection Leadlamp | |||
| High (H) | Low (L) | Extra Low (EL) | ||
| Hazardous Area Code |
I M2 Ex eb mb I Mb (-30°C to +55°C) II 2G Ex eb mb IIC T4 Gb IP67 II 2D Ex mb tb IIIC T95°C Db |
|||
| Type of Protection |
‘eb’ Increased Safety, ‘mb’ Encapsulation,’tb’ Dust Ignition Protection by Enclosure | |||
| Area of Classification (Gas) |
Zones 1 & 2 Gas Groups IIA, IIB & IIC | |||
| Temperature Classification (Gas) |
T4 | |||
| Area of Classification (Dust) |
Zones 21 & 22 Dust Groups IIIA, IIIB & IIIC | |||
| Max Surface Temperature (Dust) |
T95°C | |||
| Ambient Temperature |
-30°C to +55°C | |||
| Certificate |
SIRA15ATEX3317X IECEx SIR15.0115X |
|||
| Enclosure |
High Impact, Anti-Static Polypropylene | |||
| Lens |
Polycarbonate, Scratch and Chemical Resistant Hardcoat | |||
| Light Source |
Type | High Power LED | ||
| Output | Â 470 lumens (at source) / 403 lumens (from leadlamp) | |||
| Life |
60,000 hrs |
|||
| Power Source |
Voltage | 90-264VAC | 18-54VAC20-54VDC | 9-16VAC/DC |
| Plug | No plug supplied as standard | |||
| Cable | 10m HOFR 2 core x 1.5 mm² | |||
| Weight |
1.785 kg | |||
| Ingress Protection |
IP67 | |||
Wolf Sp-600 Accessories – Mounting & Protection
Wolf SP-600 range of accessories includes cages and magnets for the SP-600 ATEX LED Inspection Leadlamp and gives operators a wide range of flexible temporary installation solutions and added equipment protection for using temporary lighting in ATEX & IECEx certified hazardous areas.
Mounting Magnet
With a 66mm Diameter Magnet (SP-624) the leadlamp can be positioned to grip on a flat ferrous metal surface for secure mounting almost anywhere – putting the leadlamp exactly where it is needed.

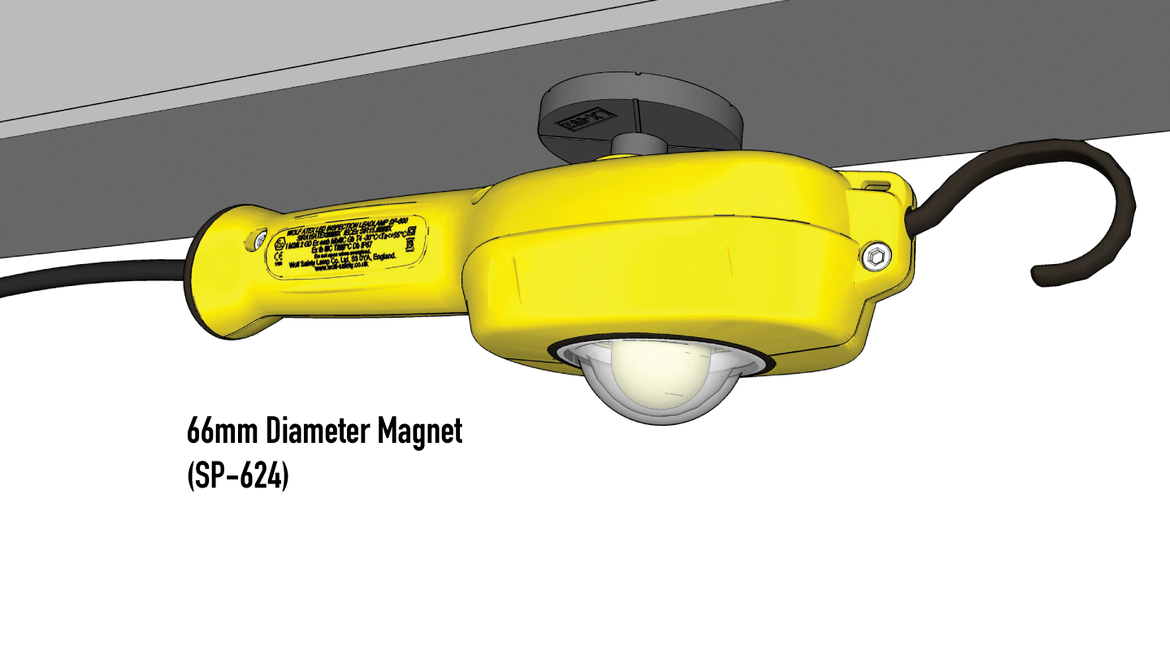

Wolf SP-600 Accessories | 66mmm Diameter Mounting Magnet (SP-624)
Cage Guard
The stainless steel Cage guard offers enhanced mechanical protection to the leadlamp when fitted to ensure its longevity in harsh working conditions. The Cage is supplied in two forms:
- Cage with Fixing Bolt (SP-620)
- Cage with 88m Diameter Magnet (SP-626)
The 88mm diameter magnet has a greater clamp force than the 66mm diameter magnet and will offer higher levels of retention on surfaces with poor finishes and must only be used with the cage accessory.

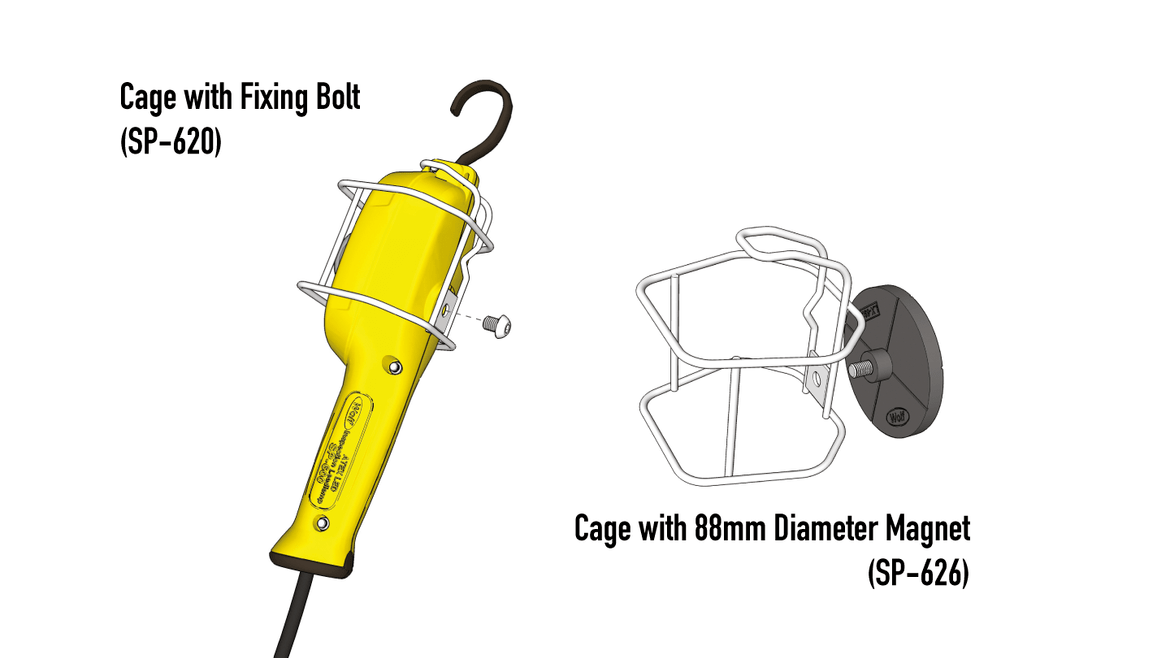

Wolf SP-600 Accessories | Steel Cage Guard (SP-620 SP-626)
âž¡ All accessories have been assessed safe for use in hazardous area locations with potentially explosive atmospheres, and are covered within the SP-600 ATEX (CML 19ATEX3021X) and IECEx (IECEx CML19.0005X) certificates. Only genuine Wolf accessories will maintain ATEX/IECEx compliance of the product.
âž¡ For further information, technical specifications and hazardous area ATEX certificates, please see the Wolf Handheld Leadlamps product sections below. Visit portable and temporary lighting for more information about the full range of Wolf Lighting products.
