Fire Resistant Enclosures PH120 Pre-Assembled With Ceramic Terminal Blocks

Published 24 Jun 2019

Fire Rated – NEW enclosures ensuring building services systems remain operating in fire conditions, protecting property and saving lives.

• By Chris Dodds : estimated reading time 3 minutes

Enclosures

Thorne & Derrick International, the UK Specialist Distributor for Abtech, a leading manufacturer of hazardous area enclosures and junction boxes, announce the launch of an enhancement to their established range of Fire Resistant Enclosures & Junction Boxes.

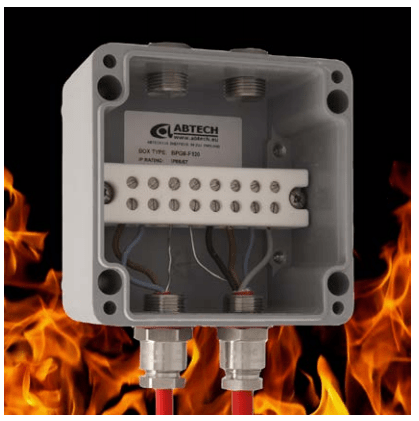

The new Abtech BPGF Fire Resistant Enclosures are available in 2 sizes and the junction boxes are pre-assembled with fire rated ceramic terminal blocks – faster installation, site error reductions, ready-to-fit.

The fire rated enclosures are complete with four M20 threaded entries, two stainless steel plugs and two transit plugs providing increased fire survivability for safety critical electronic and electrical circuits including power, lighting and emergency circuits – satisfying fire safety requirements according to PH120 (BS EN 50200 and BS 8434-2)

• BS EN 50200:2015 Method Of Test For Resistance To Fire Of Unprotected Small Cables For Use In Emergency Circuits
• BS 8434-2:2003+A2:2009 Methods Of Test For Assessment Of The Fire Integrity Of Electric Cables. Test For Unprotected Small Cables For Use In Emergency Circuits. BS EN 50200 With A 930° Flame & Water Spray

Fire Resistance Testing enclosures

Fire rated enclosures assembled with 8-way or 12-way ceramic terminals

PH120

Insulation integrity (120-minute exposure) in accordance with BS EN 50200 & BS 8434-2 (>9300 C) with exposure to fire with water spray & mechanical shock. Rated voltage 600V rms.

IEC 331

Insulation integrity (180-minute exposure) in accordance with IEC (>7500 C) with exposure to fire with water spray & mechanical shock. Electrical system fully functional before, during and after test.

Enclosure Specification

• Enclosure Type: Pre-assembled Fire Resistant GRP
• Ingress Protection: IP66 to EN60529
• Impact Resistance: >7Nm
• Ambient Temperature Rating: -650 C to +1300 C (for normal operation)
• Enclosure Material: Glass reinforced polyester in grey (RAL 7001). Captive 316 stainless steel fasteners and inserts. Ceramic terminal block.
• Oxygen Density: 41.8%
• Smoke Density: 0.0328
• Toxicity: CITNLP = 0.05 ‘R’ Value to BS6853 Annex B.1 = 0.23
• Electrical Connector Size: Up to 6sqmm

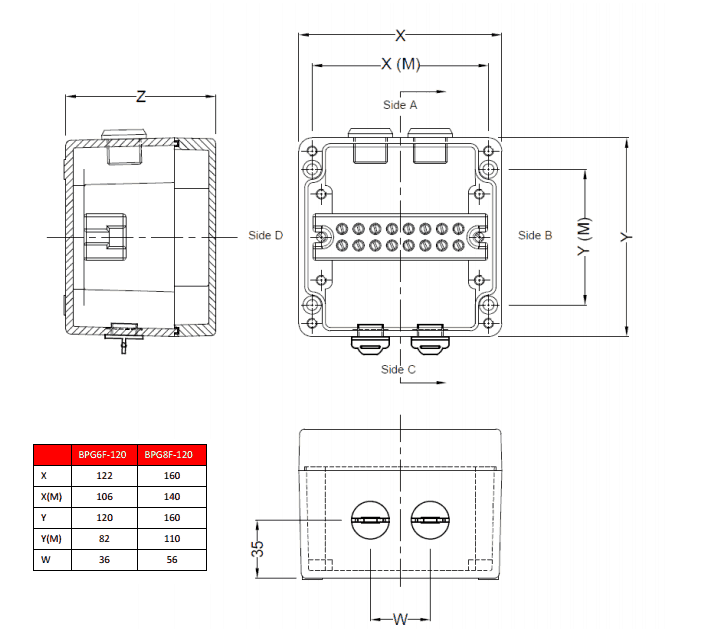

Dimensions

Abtech – Hazardous Area Enclosures, Lighting, Junction Boxes & Control Stations

More Reading

Hazardous Area Enclosures

• ATEX Solenoid Valves – ASCO Valves for International Hazardous Area Installations
• ASCO Valves – Selecting & Ordering The Correct Valve
• Zone 1 Fire Rated Enclosures & Junction Boxes (IEC311 BS6387)

Fire resistant  isolators

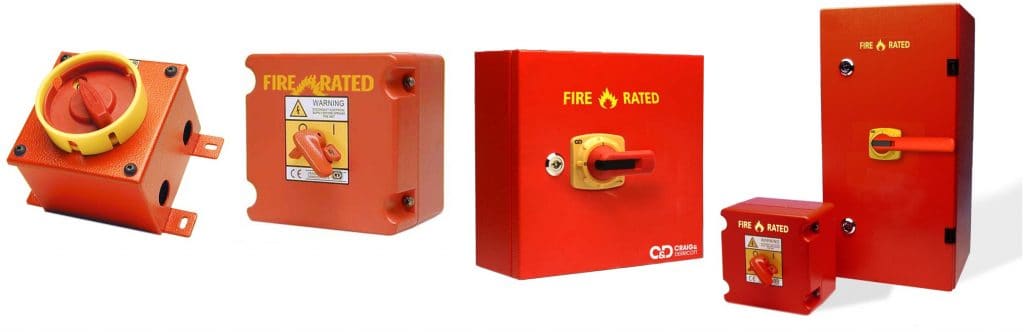

T&D distribute hazardous area isolators and fire resistant isolators rated from 20A-630A with F400 Fire Rated classification designed specifically for installations where the electrical power supply must be maintained for 2 hours at 400°C.
