Abtech SXCS3

Abtech SXCS3 hazardous area control stations are ATEX Certified for use in Zone 1 and Zone 21 hazardous areas.

    • ATEX, IECEx & InMetro

      zone 1 and 2 hazardous areas

    • Ex e II T4 (Ammeter only) or Ex ed IIC T4

Stainless steel Control Stations

Zone 1 & Zone 21 Hazardous Areas Application

Abtech SXCS3 control stations are suitable for both industrial and hazardous areas and are manufactured from Stainless Steel 316L (1.4404). – also available in Glass Reinforced Polyester and Plastic.

➡ View the complete range of Stainless Steel Control Stations suitable for Zone 1 hazardous area installations.

Protection Degree: IP66.

Temperature Rating – Max ambient range: -20°C to +55°C

Abtech SXCS3 Control Stations

Configuration Options

Part Reference Control Station

Dimensions HxWxD (mm)

Max. Power Dissipation (W) Maximum Populations
Operators Only Ammeters Only Operators & Ammeters
Abtech SXCS3 372x448x140 12 12 x Op** 12 x Am 6 x Op,2 x Am

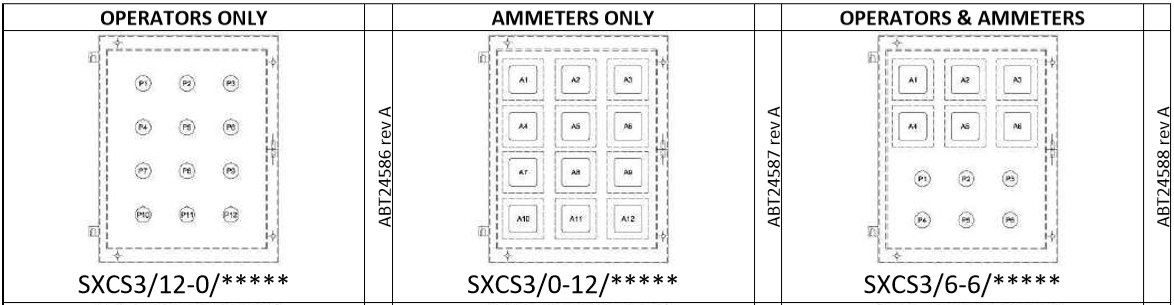

Layout Drawings sxcs3 stainless steel control stations

sxcs3 stainless steel control stations



Op = Operator (Push Button, E-Stop, Indicator Lamp or Selector Switch) – Allow 1W power dissipation per operator Am = Ammeter – Allow 0.5W power dissipation per ammeter

** When fitted with maximum number of operators, NO additional terminals may be fitted due to max. power dissipation limit See Data Sheet for typical layout drawings

Abtech SXCS3 control stations, manufactured from stainless steel are suitable for Zone 1 and Zone 21 hazardous areas according to the ATEX Directive – the SXCS3 is available with a selection of different manufacturers operators and indicators.

Control Stations – Zone 1 & Zone 21 Hazardous Area ATEX

Control Stations – Zone 1 & Zone 21 Hazardous Area ATEX

Maximum Cable Entries

Abtech  Control Station Top Face c/w removable gland plate Control Station Bottom Face c/w removable gland plate
M20 M25 M32 M40 M20 M25 M32 M40
SXCS3 12 7 5 4 12 7 5 4

Available Operator, Ammeter and terminal types

Push Button Momentary, 1NC/1NO, 2NC or 2NO contacts. Coloured/marked inserts as required
Emergency Stop Push-Pull, 1NC/1NO, 2NC or 2NO contacts. Red/yellow mushroom head
Mushroom Head Push-Pull, 1NC/1NO, 2NC or 2NO contacts. Colour: black. Optional key release
Key Release Push Button 1NC/1NO, 2NC or 2NO contacts. Colour: black
Indicator Lamp Red/green/yellow/blue or white available
Illuminated Push Button Red/green/yellow/blue or white available. Available with 1NC or 1NO contacts
Selector Switch 2 or 3 position. 2-pole contact configurations and label inserts to suit application Small switch handle (39mm dia) as standard. Large handle (60mm dia) also available
Ammeter Direct measuring with x2 overload scale (max scale: 0-15A/30A)1A or 5A current transformer with x2 or x5 overload scale (max scale: 0-600A/3000A)
Terminals Direct termination as standard, 2.5/4mm2 Ex screw terminals fitted where requested

ATEX Hazardous Area Stainless Steel Control Stations Zone 1 & 21 - Abtech SXCS

ATEX Hazardous Area Stainless Steel Control Stations Zone 1 & 21 – Abtech SXCS

Electrical Data

Push Button Utilization category (per BS EN 60947-1) AC12 AC15 DC13 DC13
Emergency Stop Rated voltage 250V 250V 110V 24V
Mushroom Head Rated current 16A 10A 0.5A 1A
Key Release Push Button Maximum ambient temperature +40°C +55°C +55°C +55°C
Indicator Lamp Suitable for 24-240Vac / 24-36Vdc supply. Alternative supply option: 220-380Vac
Illuminated Push Button Utilization category (per BS EN 60947-1) AC15 DC13
Rated voltage 250V 24V
Rated current 6A 1A
Maximum ambient temperature +55°C +55°C
Lamp suitable for 24-240Vac / 24-36Vdc supply
Terminals



Terminal type AKZ 2.5 AKZ 4 SAK 2.5 SAK 4
Maximum cable size 2.5mm² 4mm² 2.5mm² 4mm²
Maximum voltage 176V 275V 550V 550V
Maximum current 15A* 28A 15A* 28A

*limited as per hazardous area certificate
