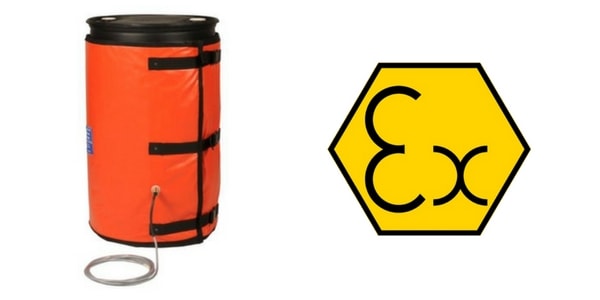

ATEX 205L Drum Heating Jacket – Inteliheat 2D/Z1
ATEX Drum Heating Jacket – Inteliheat 2D/Z1
The Inteliheat 2D/Z1 ATEX drum heating jacket is ideal for drum heating applications within Zone 1 & Zone 2 hazardous area applications for plastic or steel 205 litre drums.

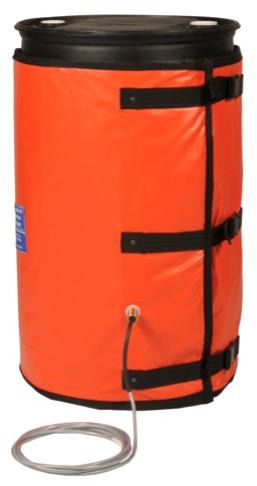

The Inteliheat 2D/Z1 heating jacket is constructed from custom elastomer and silicone coated glass cloth with a high density fibreglass insulation with a heating element within the jacket. Inteliheat drum heating jackets utilise a patented technology of carbon rich semi-conducting positive temperature coefficient membranes.
The ATEX drum heating jacket ensures safe operating conditions are maintained even in the presence of potentially explosive gases and no transformers are required as the Inteliheat 2D/Z1 operates using standard AC supply voltages up to 240V.
The Inteliheat 2D/Z1 is ideal for frost protection and temperature maintenance, the efficiency of the heating jacket can be improved by using an insulated lid to reduce heat loss from the container and improve heating times. For faster heat up times and to be able to melt solids which require high temperature the Thermosafe ATEX Induction Heater is recommended.
Inteliheat 2D/Z1 HAZARDOUS AREA ATEX Drum Heating Jacket CERTIFICATION
Hazardous Area Drum Heating For Zone 1 Zone 2 Hazardous Areas
Certification: ATEX Certified II 2G Ex e IIC T3 (T150ºC) Zone 1 & Zone 2
Class II appliance
EN 60079-0:2004, EN 60079-7:2003
Sira 07ATEX3293X
IECEx Certified SIR 07.0101X
| When used with 205L steel drums | ||
| Nominal Voltage | Ambient Temperature Range | Certified Temperature Rating |
| Up to 240V | -20ºC to +40ºC | T3 150ºC |
| Up to 230V | -20ºC to +30ºC | T4 135ºC |
| Up to 195V | -20ºC to +40ºC | T4 135ºC |
| Up to 120V | -20ºC to +40ºC | T5 100ºC |
| Up to 95V | -20ºC to +40ºC | T6 85ºC |
| When used with a flexible insulated lid around 205L steel drums | ||
| Up to 240V | -20ºC to +30ºC | T3 150ºC |
| When used with 205L plastic drums | ||
| Up to 240V | -20ºC to +40ºC | T3 150ºC |
| Up to 230V | -20ºC to +30ºC | T4 135ºC |
| Up to 195V | -20ºC to +40ºC | T4 135ºC |
| Up to 120V | -20ºC to +40ºC | T5 100ºC |
| Up to 95V | -20ºC to +40ºC | T6 85ºC |
| Nominal Voltage | Ambient Temperature | Approximate Temperature of Jacket when around a Steel Drum (Measured at Inner Surface) |
| 240V | 20ºC | 80ºC |
| 110V | 20ºC | 40ºC |
INTELIHEAT 2D/Z1 HAZARDOUS AREA ATEX DRUM HEATING JACKET – Technical Specification
| Voltage | Single Phase up to 240V, 50/60Hz AC |
| Current / Power Consumption | Up to 3A / 720W |
| Overall Length | 1950mm |
| Overall Height | 850mm |
| Weight | 9kg |
| Ingress Protection | IP44 |
