Constant Wattage heat tracing cables

ATEX Heat Tracing Cable | Eltherm ELKM-A

Eltherm ELKM-A constant wattage resistance heat tracing cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 260° Celsius.

Eltherm resistance heating cables are manufactured from a high-resistance heating conductor, PTFE insulated with protective braid and fluoropolymer outer jacket. Powered at specific voltage the resistance heat generated by the conductors provides electrical trace heating to pipes and vessels. Resistance heating cables will “burn-out” if overlapped unlike self-regulating trace heating cables.

These heat tracing cables manufactured by Eltherm offer flexibility in use as they can easily be cut to the required length off the roll, with the assurance of constant power output. There is no need for connecting cable and input can be unilateral. The constant wattage heat tracing cable is quick and easy to assemble, saving time and reducing operating costs.

Since the heat tracing cable output of up to 30 W/m is possible for lengths laid to piping, Eltherm ELKM-A heat tracing cables are particularly suited for piping with high output requirements such as in industrial process technology. The following are applications are below:

Pipelines
Valves, pumps
Tank container
Silos, vessels, tanks
Automotive
Industrial Applications
Varnishes
IBCs

Heat Tracing Cables

Eltherm ELKM-A SPECIFICATION

Eltherm ELKM-A heater cable wattages per metre – 30 watts

Nominal Supply Voltage : 750V
Maximum Output : 30 w/m
Maximum Operating Temperature : 260ºC
Minimum Installation Temperature : -60° Celsius
Minimum Heater Cable Bend Radius : 2.5mm x outer diameter
Insulation : PTFE
Heat Conductor : Stranded, spirally wound for nominal resistance > 8,000Ω/km
Moisture Proof : Yes
Manufactured According To : DIN VDE 0253
Heating Cable Type : Resistance heating cables

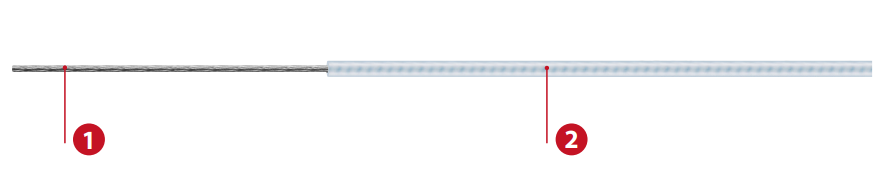

Eltherm ELKM-A Heat Tracing Cable

Heating conductor: stranded or spirally wound
Insulation: Fluoropolymer

ELTHERM ELKM-A HEATING CABLE BENEFITS

Highly flexible
Small bending radius
High operating temperature
High chemical resistance
Moisture proof

HEAT TRACING CABLE SELECTION TABLE – ELTHERM ELKM

Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.

Resistance heating cables application : frost protection and process heating.
