Eltherm ELKM-AE Constant Wattage Heat Tracing Cable

Constant Wattage heat tracing cables

ATEX Heat Tracing Cable | Eltherm ELKM-AE

Eltherm ELKM-AE constant wattage heat tracing cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 260° Celsius.

These heat tracing cables manufactured by Eltherm offer flexibility in use as they can easily be cut to the required length off the roll, with the assurance of constant power output. There is no need for connecting cable and input can be unilateral. The constant wattage heat tracing cable is quick and easy to assemble, saving time and reducing operating costs.

Eltherm resistance heating cables are manufactured from a high-resistance heating conductor, PTFE insulated with protective braid and fluoropolymer outer jacket. Powered at specific voltage the resistance heat generated by the conductors provides electrical trace heating to pipes and vessels. Resistance heating cables will “burn-out” if overlapped unlike self-regulating trace heating cables.

Since the heat tracing cable output of up to 30 W/m is possible for lengths laid to piping, Eltherm ELKM-AE heat tracing cables are particularly suited for piping with high output requirements such as in industrial process technology. The following are applications are below:

  • Pipelines
  • Valves, pumps
  • Tank container
  • Silos, vessels, tanks
  • Automotive
  • Industrial Applications
  • Varnishes
  • IBCs

Eltherm ELKM-AE resistance heating cables and tapes provide process temperature maintenance and frost protection to vessels, pipes, valves and small components up to 260° Celsius.

HEAT TRACING Resistance CABLES

ELTHERM ELKM-AE SPECIFICATION

  • Nominal Supply Voltage : 750V
  • Maximum Output : 30 w/m
  • Maximum Operating Temperature : 260ºC
  • Minimum Installation Temperature : -60° Celsius
  • Minimum Heater Cable Bend Radius : 2.5mm x outer diameter
  • Insulation : PTFE
  • Protective Braid: VA 1.4401 / SS 316
  • Heat Conductor : Stranded, spirally wound for nominal resistance > 8,000Ω/km
  • Moisture Proof : Yes
  • Manufactured According To : DIN VDE 0253
  • Heating Cable Type : Resistance heating cables

Eltherm ELKM-AE Heat Tracing Cable

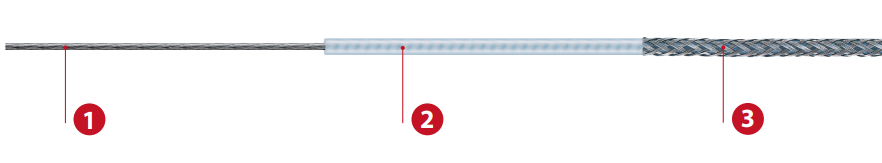

  1. Heating conductor: Heating conductor stranded or spirally wound
  2. Insulation: Fluoropolymer
  3. Protective braid: VA 1.4401 / SS 316

Eltherm ELKM-AE Heating cable Benefits

  • Highly flexible
  • Small bending radius
  • High operating temperature
  • High chemical resistance
  • Moisture proof

ELKM-AE

resistance Heat Tracing Cables – Eltherm ELKM-AE

SELECTION TABLE

Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.

Resistance heating cable application : frost protection and process heating.

Nominal Resistance Ω/km Cable Outer Diameter Approx (mm) Weight Approx (g/m) Temperature Coefficient (x 10-3/K) Eltherm Order Code
1.95 (Cu 10mm²) 6.97 130 4.30 0137001
2.90 (Cu 6mm²) 5.83 100 4.30 0137003
4.40 (Cu 4mm²) 4.57 70 4.30 0137005
7.20 (Cu 2.5mm²) 3.73 50 4.30 0137006
10.00 3.46 30 4.30 0137008
11.70 (Cu 1.5mm²) 3.37 30 4.30 0137011
15.00 3.04 30 4.30 0137013
25.00 2.99 30 3.00 0137017
31.50 3.39 30 1.60 0137021
50.00 2.90 22.2 1.60 0137031
65.00 2.88 19.6 1.60 0137033
80.00 3.16 25.4 0.90 0137039
100.00 2.95 22.0 0.90 0137043
157.00 2.94 22.1 0.45 0137044
180.00 2.68 17.0 0.90 0137053
200.00 2.82 19.3 0.45 0137055
260.00 2.71 17.4 0.45 0137059
280.00 2.60 15.6 0.38 0137230
328.00 2.97 21.5 0.18 0137231
360.00 2.55 14.9 0.45 0137065
430.00 2.80 18.7 0.18 0137067
480.00 2.78 17.9 0.18 0137068
600.00 2.64 16.1 0.18 0137232
800.00 2.53 14.5 0.18 0137081
1000.00 2.65 16.2 0.04 0137083
1470.00 2.48 13.9 0.04 0137233
1750.00 2.50 13.6 0.04 0137234
1900.00 2.68 11.6 0.40 0137235
2900.00 2.52 14.4 0.40 0137104
4000.00 2.45 13.3 0.40 0137115
4700.00 2.39 12.6 0.15 0137119
6000.00 2.33 12.0 0.20 0137236
7000.00 2.27 11.4 0.15 0137127
8000.00 2.25 11.1 0.15 0137121
