Marechal DS6 Plugs & Sockets 90A 1000V Decontactors (AC22 AC23)
Marechal DS6 Plugs & Sockets
plugs & sockets 90A
marechal ds6
Marechal DS6 plugs and sockets have a rated current of 90A and a maximum voltage of 1000V. DS6 plugs and sockets are IP54 when the plug is connected and IP55 protected when the lid is closed.
Marechal DS plugs & sockets have an incorporated breaking capacity of AC-22 / AC-23 and have either an impact resistant GRP or metal casing. The DS6 also features a safety shutter (socket IP4X/IPXXD), silver-nickel butt contacts and metallic braid to comply with international standards.

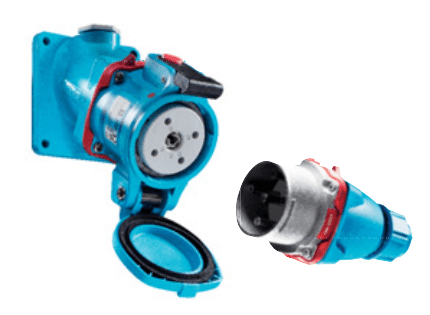

Marechal DS6 Decontactors – Metal Casing
Marechal DS6 Plugs
Technical Specification
| Rated Current (with wiring according to standard) | 90A |
| Maximum Voltage | 1000V |
| IP Protection Lid Closed | IP55 |
| IP Protection Connected Plug | IP54 |
| Shock Resistance (poly casing) | IK08 |
| Shock Resistance (metal casing) | IK09 |
| Ambient Temperature | -40ºC to +60ºC |
| Flexible Wiring (Min-Max) | 10 mm² – 25 mm² |
| Stranded Wiring (Min-Max) | 10 mm² – 35 mm² |
| Other Wiring | On Request |
| Keying Positions | 24 |
Load Break Capability Of Decontactor – GRP Casing
- Comply with IEC EN 60309-1 and IEC EN 60309-4 standards – (90 A / 690 V) or (63 A / 1000 V)
- Load-break capability according to IEC EN 60947-3 / AC-22A – 63 A / 690 V
- Load-break capability according to IEC EN 60947-3 / AC-23A – 90 A / 400 V
- Short-circuit current Icc – 10 kA
- Power kW AC-22/AC-23 – 45 kW
Load Break Capability of Decontactor – Metal Casing
- Comply with IEC EN 60309-1 and IEC EN 60309-4 standards – (90 A / 690 V) or (63 A / 1000 V)
- Load-break capability according to IEC EN 60947-3 / AC-22A – 63 A / 690 V
- Load-break capability according to IEC EN 60947-3 / AC-23A – 90 A / 400 V
- Short-circuit current Icc – 10 kA
- Power kW AC-22/AC-23 – 45 kW
Marechal DS6 Plug Assembly manufactured from GRP with IP55 protection and 90amp current supply is configured using associated wall mounting socket, plug, wall box, outlet, inlet and handles.
Marechal DS6 – Socket Outlets & Inlets
A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal’s DS range of plugs and sockets are suitable for rated currents from 30A up to 400A and maximum voltages from 690V up to 1000V.
| Voltage 50Hz |
Polarity |
Marechal Socket Outlet (Female) DS6 90A |
Marechal Inlet (Male) DS6 90A | ||
| GRP Casing | Metal Casing | GRP Casing | Metal Casing | ||
| 220-250V AC | 1P+N+E | 3164015 | 3964015 | 3168015 | 3968015 |
| 380-440V AC | 3P+E | 3164013 | 3964013 | 3168013 | 3968013 |
| 220-250V AC/ 380-440V AC* | 3P+N+E | 3164017 | 3164017 | 3168017 | 3168017 |
| 660-690V AC | 3P+E | 3164193 | 3164193 | 3168193 | 3168193 |
| 380-440V AC/ 660-690V AC* | 3P+N+E | 3164197 | 3164197 | 3168197 | 3168197 |
| 1000V AC | 3P+E | 3164223 | 3164223 | 3168223 | 3168223 |
*Dual-voltage socket outlet
