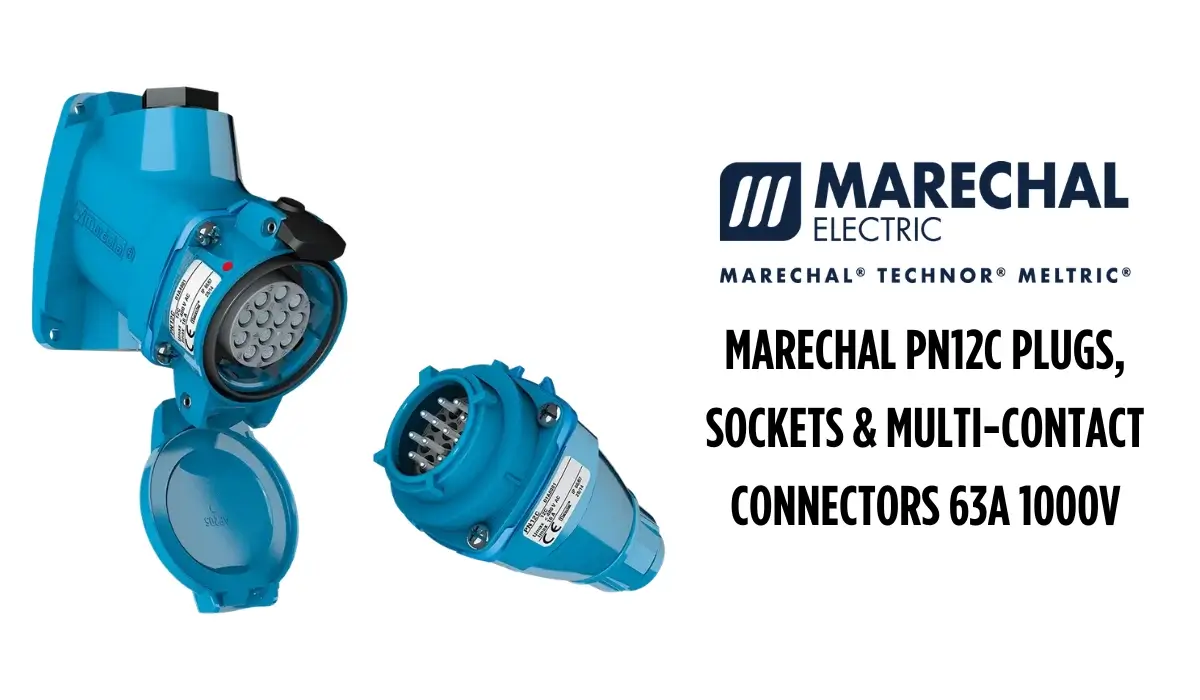

Marechal PN12C Plugs, Sockets & Multi-Contact Connectors | 12 Contacts 16A 500V IP66/67

Marechal PN12C Plug, Sockets & Multi-Contact Connectors 16A 500V 12 Contacts

Marechal PN12C Multi-Contact Connectors | Plugs & Sockets 16A 500V

Marechal PN12C Plugs, Sockets & Multi-Contact Connectors are designed to be compact and waterproof, with an integrated switch for use in industrial applications. The Marechal PN12C Plugs, Sockets & Connectors offer a rated current of 16A and a maximum voltage of 500V, as well as 12 contacts (13 contacts provided in the bag). PN12C Plugs & Sockets are compliant with IP66 & IP67 and IK08 & IK09 protection ratings when connected, purposed for protection of electrical equipment against external mechanical impacts. The female socket outlet is also watertight sealed when the lid is closed.

Also available in the Marechal Multi-Contact Connectors range ➡

The PN12C is available in GRP or metal, with 12 contacts for use with a maximum of 480V for both female socket outlets and male inlet plugs, configured using associated wall mounting socket, plug, wall box, outlet, inlet and handles. A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied upon request. Marechal PN12C Multi-Contact Connectors are part of the signal and control plugs range.

GET A QUOTEMarechal Plugs, Sockets & Decontactors

Marechal PN12C Plugs & Sockets Technical Specifications

Marechal PN12C Plugs, Sockets & Multi-Contact Connectors 16A 500V
PN12C Electrical Features
Maximum rated voltage 480V
Impulse withstand voltage 5kV / Pollution degree 3
Contact Resistance ‹ 2mΩ
Permitted current range 4-20mA / 16A
Rated current percontact (max) 16A
Total current carried ≤ 110 A
Flexible wiring (min-max) 1 – 2,5 mm2
Wiring (terminals) Crimp type terminals (tool optional) or directly soldered
Keying positions 2
PN12C Climatic Features
Ambient temperature -40 °C to +60 °C
IP protection connected plug IP66/IP67
IP protection lid closed IP66/IP67
Salt, fog performance 200 hrs minimum connected
Resistance to fluids Motor oils, petrol, fats, detergents…
PN12C Mechanical Features
Butt contacts Female contacts: copper alloy silver plated / Male contacts: Silver-nickel tips
Contact protection Silvering
Load cycles More than 5000 cycles
Shock resistance (poly casing) IK08
Shock resistance (metal casing) IK09
Vibration Frequency 5-1000 Hz, 1g / (90 minutes on each critical frequency) according to IEC 6068-2-6

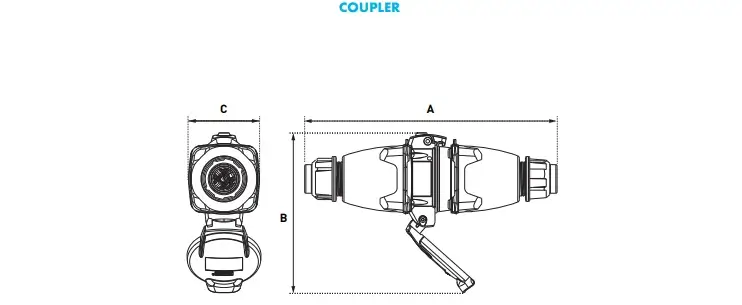

Marechal Coupler - Technical Drawing

A B C E
PN12C Straight Handle 127mm 140mm 58mm 42mm
PN12C Angled Handle 117mm 138mm 61mm 42mm

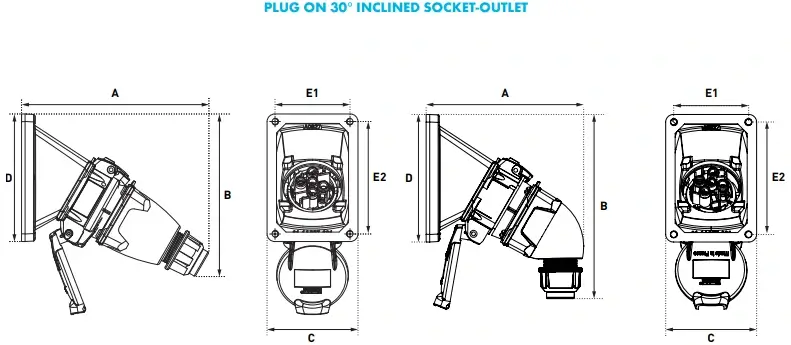

Marechal Plug on Inclined Socket Outlet 30 - Technical Drawing

A B C D E1 E2
PN12C Straight Handle 178mm 176mm 68mm 90mm 36/56mm 78mm
PN12C Angled Handle 153mm 176mm 68mm 90mm 36/56mm 78mm

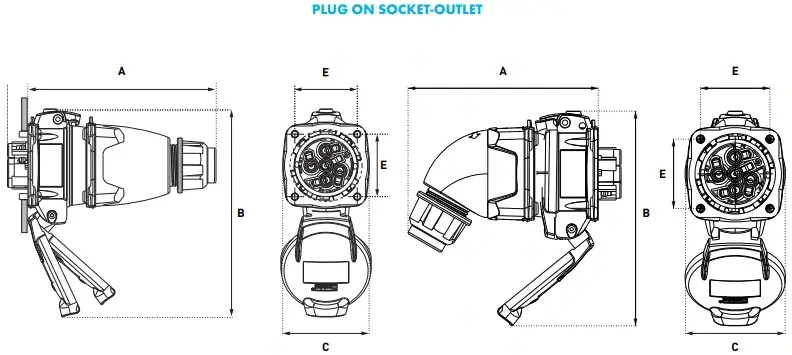

Marechal Plug on Socket Outlet - Technical Drawing

A B C D E1 E2
PN12C Straight Handle 160mm 170mm 77mm 108mm 63mm 95mm
PN12C Angled Handle 133mm 165mm 77mm 108mm 63mm 95mm

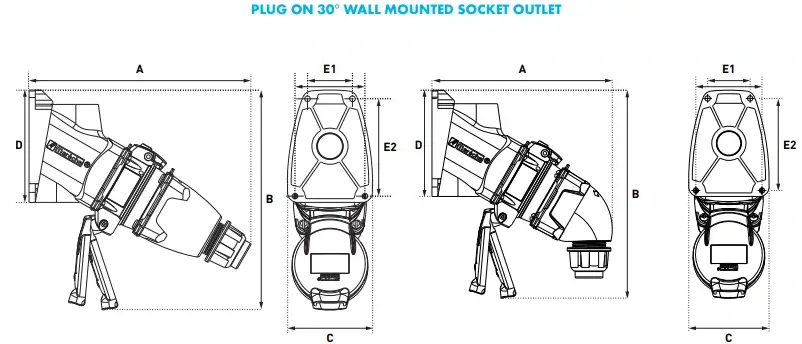

Marechal Plug on Wall Mounted Socket Outlet 30 - Technical Drawing

A B C
PN12C Straight Handle 208mm 132mm 58mm

MARECHAL PN12C Multi-Contact Connectors | SOCKET OUTLETs & INLETs

The following table provides a further insight on the Marechal PN12C Socket Outlet (female) & Inlet (male) selection:

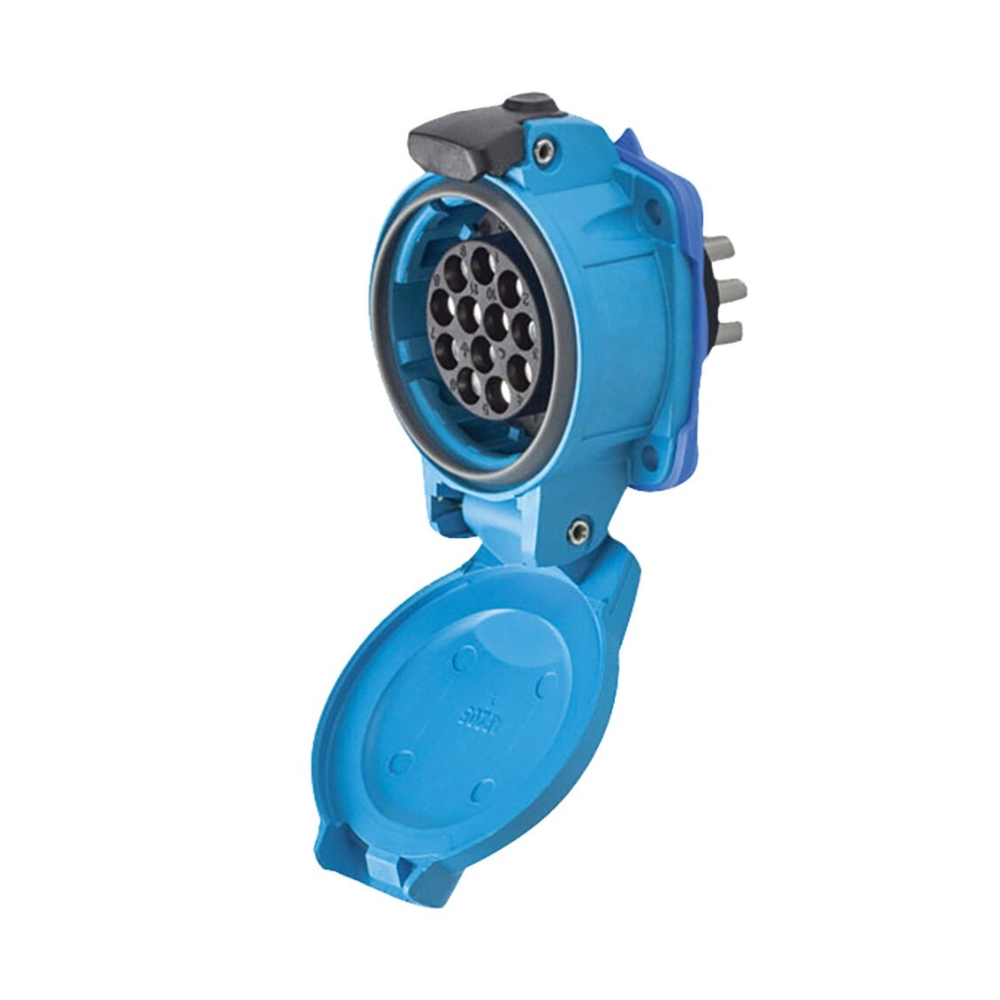

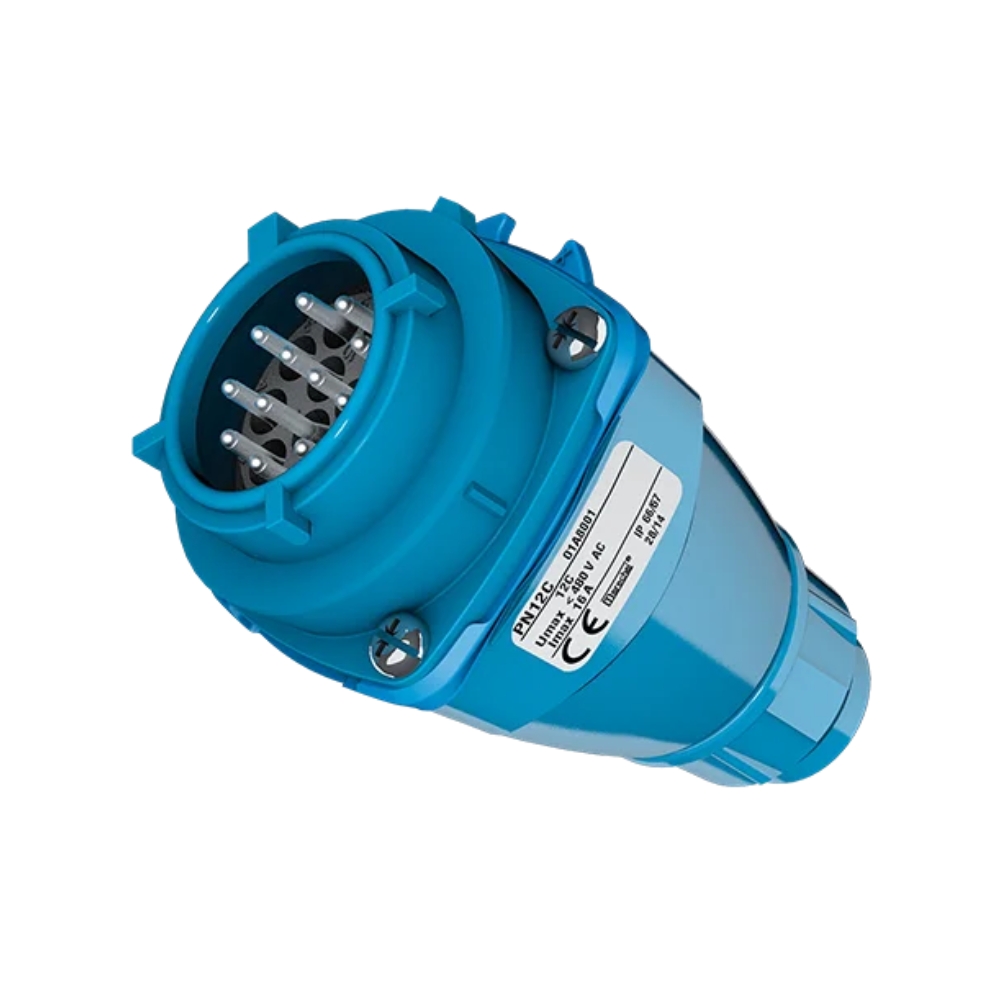

Umax Contacts Marechal PN12C Socket Outlet (Female) Marechal PN12C Inlet (Male)
480V AC 12 Contacts Marechal 01P4050 Marechal 01P8050
480V AC 12 Contacts Marechal 09A4001 Marechal 09A8001
Each product is supplied with 1 bag of 13 contacts, supplied with insulation sleeves and ferrules.



Marechal PN12C Multi-Contact Connectors (plug and socket outlets with integral power switch) are supported by an ancillary range of wall mounting sockets, wall boxes, socket outlets, sleeves, inlets and handles.

Marechal PN12C Plugs & Sockets Boxes

PN12C Plug Box Variants Angle Input Product Reference

Poly Box


 0° (Straight) M20 Marechal 511B0M20
0° (Straight) M25 Marechal 511B3M25
30° M20 Marechal 511B3M20
30° M25 Marechal 511B3M25
Poly Box & Poly Sleeve

 70° Without hole Marechal 511C7000
70° Hole Ø 20 Marechal 511C7M20
70° Hole Ø 25 Marechal 511C7M25
70° Hole Ø 32 Marechal 511C7M32
Metal Box (+ Earthing Wire) + Poly Sleeve
 30° M20 Marechal 511C3M20

Metal Box (+ Earthing Wire) + Metal Sleeve

 45° M20 Marechal 591C4M20
45° M25 Marechal 591C4M25
45° M32 Marechal 591C4M32

Marechal PN12C Plugs & Sockets Handles

PN12C Plug Handle Variants Input/
Cable outer Ø		 Product Reference
Poly Handle with Gland
 9mm-18mm Marechal 511P0D18
5mm-21mm Marechal 511P0D21
9mm-18mm Marechal 511P6D18
Poly Handle & Poly Cable Gland
 5mm-12mm Marechal 511P020P
9mm-18mm Marechal 511P025P
14mm-25mm Marechal 511P032P

Metal Handle with Metal Gland (+ Earthing Wire)

 7mm-13mm Marechal 591P020M
8mm-16mm Marechal 591P025M
16mm-24mm Marechal 591P032M
Poly Handle (Without cable gland)
 M20 Marechal 511P0M20
M25 Marechal 511P0M25
M32 Marechal 511P0M32

Metal Handle Metric Thread Entry (Without Cable Gland)

 M20 Marechal 591P0M20
M25 Marechal 591P0M25
M32 Marechal 591P0M32

Marechal PN12C Plugs & Sockets Sleeves

PN12C Sleeve Variants Angle Product Reference
Poly Sleeve 30° Marechal 511M3
70° Marechal 511M7
Metal Sleeve
 0° (Straight) Marechal 591M0
30° Marechal 591M3
45° Marechal 591M4

Marechal PN12C Socket & Plug Typical Configuration

iNSTALL & OPERATION Guidelines
  • Remove an adequate length of cable outer sheath according to the accessory used.
  • Strip conductor insulation of the indicated length (see Table T1).
  • For inlets, affix the CE sticker either on the handle or on the box, or near the inlet if semi-flush mounted.
  • Insert the colour-coded rings between the inlet/plug top or socket-outlet and its rear accessory.
  • The two protrusions of the rings must be positioned on the hinge side for the socket-outlet/connector and on the catch side for the plug/appliance inlet. These rings act as seals.

PN12C Operation

  • The socket-outlet is shielded by a protective lid held in the closed position by a latch. Depress the latch to release the lid.
  • To be connected, the Marechal PN12C plug and the socket-outlet must have similar ratings (voltage, current …), and compatible contact configurations.
  • To connect, align the plug bayonets with the hollow parts of the socket-outlet (if any, use the two red marks as a visual indication), push the plug in and turn anticlockwise: the circuit is closed.
  • To disconnect, push the plug and turn it clockwise to withdraw it. Close the lid. See Figure F1.
