Push Button Control Station (GRP) Hazardous Area Zone 2 ATEX – Technor EFE

Hazardous Area Push Control Station – ATEX Certified

Technor EFE (GRP)

• Control Station Material: GRP (Glassfiber reinforced polyester)
• IP Rating: IP66/IP67
• Ambient Temperature Range: -50°C to +60°C (ATEX), -50°C to +95°C (IECEx)
• Approvals: IMQ 08 ATEX 028X
  IECEx IMQ 15.0002X
  TR CU
• Standard Certificate Label: Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory
• Accessories Available: Hinges
  Drain/breather valve
  Traffolyte/Stinless steel certificate label
  Internal mounting plate
  Earth continuity plates
  Passing through earth bolt

ATEX Certification Code

• ATEX II 2 GD Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
• ATEX Ex tb IIIC T(**) Db IP66/67
  ** T6/T85°C, T5/T100°C, T4/T135°C

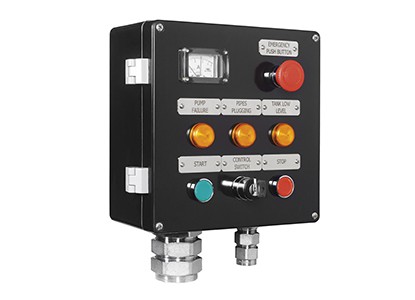

Hazardous area control station is designed to meet the requirements for use on and offshore, in petrochemical and marine applications and can be equipped with Ex de certified standard and emergency push buttons, rotating switches, signalling lamps and measurement instruments.

Technor Control Station Part Number	Dimensions (mm)					Weight (kg)
	A	B	C	D	E
EFE-1212	120	122	90	82	106	0.75
EFE-1222	120	220	90	82	204	1.06
EFE-1616	160	160	90	110	140	1.29
EFE-1626	160	260	90	110	240	1.71
EFE-1636	160	360	90	110	340	2.15
EFE-2526	250	255	120	200	235	2.65
EFE-2540	250	400	120	200	380	3.65
EFE-2560	250	600	120	200	580	5.235
EFE-4140	405	400	120	355	380	5.58

Technor Control Station Part Number	M20 / 1/2″		M25 / 3/4″		M32 / 1″		M40 / 1″ 1/4		M50 / 1″ 1/2		M63 / 2″		Cover Entries
	A	B	A	B	A	B	A	B	A	B	A	B
EFE-1212	2	2	1	2	1	1	1	1	–	–	–	–	2
EFE-1222	2	5	1	4	1	3	1	3	–	–	–	–	6
EFE-1616	3	3	2	3	1	2	1	1	–	–	–	–	4
EFE-1626	3	5	2	5	1	4	1	3	–	3	–	–	8
EFE-1636	3	8	2	7	1	6	1	5	–	4	–	–	10
EFE-2526	8	10	8	10	3	7	3	4	2	3	2	2	16
EFE-2540	8	18	8	16	3	5	3	5	3	5	2	4	24
EFE-2560	8	25	8	24	3	10	3	8	2	6	2	6	40
EFE-4140	16	18	6	14	5	6	5	5	4	5	3	6	42
