Ex d Junction Boxes – Explosion Proof Hazardous Area Technor CP/CPS Aluminium Junction Boxes
Ex d Junction Boxes – Explosion Proof Hazardous Area Technor CP/CPS Aluminium Junction Boxes
Technor CP/CPS is a hazardous area junction box which offers Ex-d IIC mode of protection and is suitable for use in hazardous areas of industrial plants for indoor and outdoor applications.
Technor CP/CPS are classified to international hazardous area classifications with ATEX & IECex certification, with ingress protection IP66 and an operational ambient temperature range of -60°C to +60°C.
CP/CPS junction boxes are used for terminals wiring and grants Ex d or Ex e mode of protection and comes with threaded hubs for cable glands or conduit. Connection does not affect the internal void which remains available for terminals wiring and internal & external screws are made from AISI 316 stainless steel.
Technor CP/CPS Aluminium Junction Box – Technical Features
| Material | Aluminium with low content of copper |
| IP Rating | IP66 |
| Ambient Temperature Range | -50°C to +60°C (ATEX) -60ºC to +60ºC (IECEx) |
| Approvals |
INERIS 03ATEX0009
IECEx BKI 15.0002
TR CU
|
| Standard Certificate Label | Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory. |
| Surface Treatment | Painted by green colour polyurethane painting cycle RAL6003 (other colour available upon request) |
| Thread | Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125 |
| Accessories Available Upon Request |
Internal anticondensate painting
Traffolyte/Stainless steel certificate label
Terminals
|
| Maximum Number of Terminals |
15 x 2,5 mm² / 12 x 4 mm² / 8 x 6 mm²
|

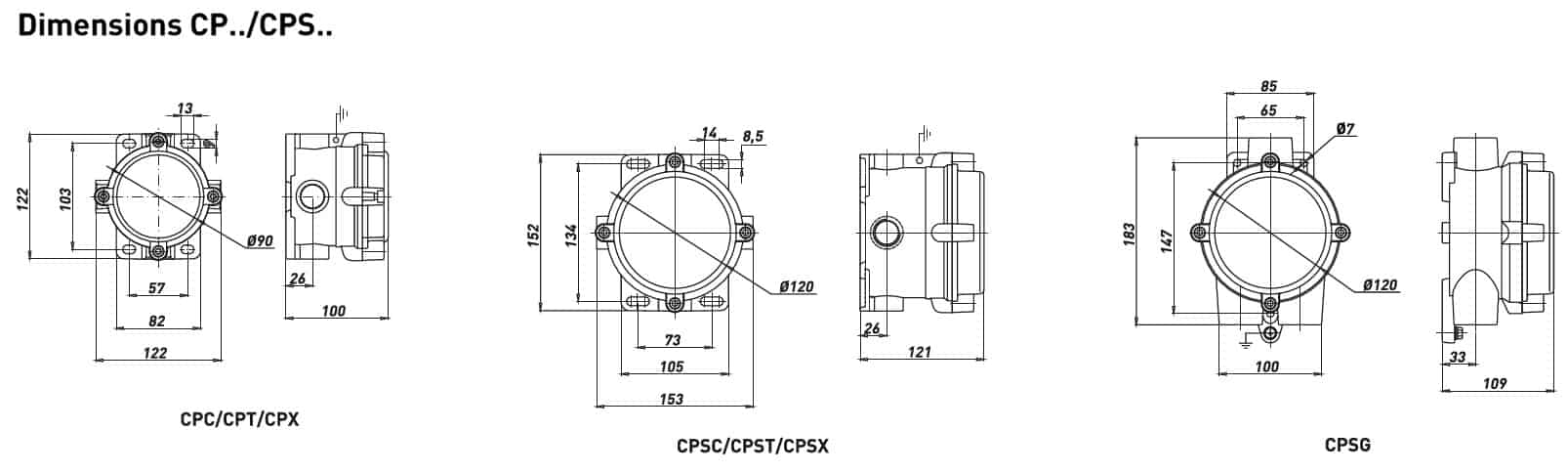

Explosion Proof Hazardous Area Technor CP/CPS Aluminium Junction Boxes – Dimensions
HAZARDOUS AREA CERTIFICATION & MARKING FOR ENCLOSURES
Standard II 2 GD
- Ex d IIC T(*) Gb
- Ex tb IIIC T(*) Db IP66
- Ex db IIC T6/T5/T4
- * T6/T85°C, T5/T100°C, T4/T135°C
II 2 GD
- Ex e IIC T(*) Gb
- Ex t IIIC T(*) Db IP66
- * T6/T85°C, T5/T100°C
under IEC Ex directive, junction boxes and enclosures are suitable for IIC group of gases/dusts only
