Zone 1 Bulkhead – Hazardous Area Lighting
ATEX Classification – Ex de II 2GD IIC T3 – T6 Protection IP 66

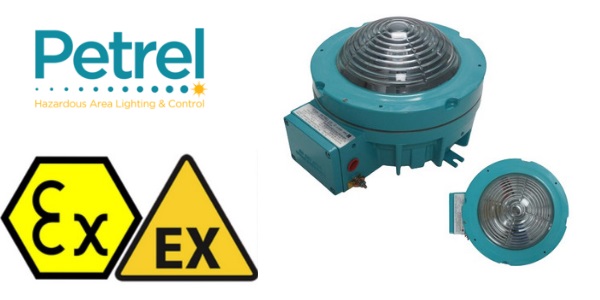

Petrel 621 Zone 1 bulkhead light fittings are suitable for Zone 1 hazardous area lighting applications and can be supplied with a range of light sources from GLS to SON and halogen lamps with wattages up to 2 x 70W may be installed in the equipment.
Zone 1 bulkhead light fittings provide hazardous area lighting and feature an integral terminal chamber, external earthing and fixed or pivoting mounting brackets. Optionally, the Petrel 621 bulkhead can be supplied with internal or external reflectors or coloured glass versions.
➡ See Zone 2 Hazardous Area Lighting for fluorescent, LED, floodlight and bulkhead type light fittings for potentially explosive atmospheres with ATEX certification.
➡ View full range of hazardous area lighting.
Zone 1 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations
ZONE 1 Bulkhead
ATEX – Zone 1 Fluorescent
Hazardous area & atex approved
- Certification and Hazardous Area Approval Certification Code: Ex d e IIC Gb T* Ex tb IIIC Db T*
- Certification Number: SIRA 00 ATEX 1047. IECEx SIR 09.0028
- Certification Standard: EN 60079, EN 61241, IEC 60079, IEC 61241
- Protection: IP 66
Zone 1 Bulkhead Light Fitting ATEX
Benefits & Options
- Hazardous area Group IIC – suitable for all Zone 1 gas environments
- Virtually indestructible marine grade construction bulkhead light fitting
- Low installation costs with integral ‘e’ terminal chamber (inexpensive glanding, loop in loop out cabling)
Hazardous Area Zone 1 Lighting Stockists & Suppliers Shipping Worldwide
- 240v 50Hz check for alternative voltages
- -20°C to +40°C standard supply For operation up to 100°C consult sales office prior to ordering
- Certified with elliptical lamps (lamps not provided) Petrel 50w or 70w SON 50w, 80w or 125w HPMV/MBF Up to 200w GLS, Single and twin halogen versions
- Coloured glass
- Internal or external reflectors
- High ambient temperature versions

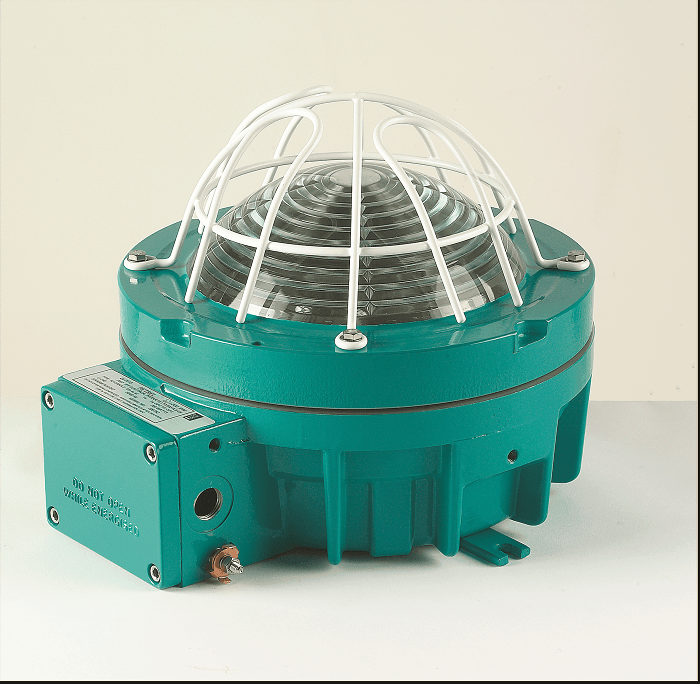

- Bulkhead fitted with wire guard
- Pendant mount
- Shallow profile for confined spaces lighting in Zone 1 hazardous areas
Zone 1 Bulkhead – Hazardous Area Light Fitting – Petrel 621
ZONE 1 Bulkhead Light Fitting ATEX
PETREL 621 Technical Data
| Supply Voltage | 240V 50Hz. Check for alternative voltages |
| Operating Temperature | -20ºC to +40ºC standard supply. For operation up to 90ºC consult sales office prior to ordering |
| Control Gear (When Fitted) | Ballast, ignitor and capacitor can be fitted within the lighting |
| Bulkhead Lamp Options | Zone 1 hazardous area certified with elliptical lamps (lamps not provided) 50W or 70W SON 50W, 80W or 125W HPMV/MBF Up to 200W GLS |
| Cable Entries | 2 x M20 – ISO (1 plugged as standard). Other threads available |
| Terminals | 4 (4mm) wire and earth with looping facility. Cable crimping required at installation when looping |
| Mounting Facility | Back mounted fixing strap |
| Access | Terminals accessed via terminal cover retained by cap screws. Lamp and gear accessed via removable glass dome |
| Material | Corrosion resistant marine grade aluminium body and bezel. Toughened Borosilicate glass dome |
| Finish | 2 Pack epoxy paint on primed surface. Standard colour – Aqua. Additional costs for non standard colours |
| Accessories | Internal or external reflector Pivot bracket for directional control Pendant mount Wire guard |
| Weight | 12kg to 16kg lamp dependent |
| Dimensions | 334mm x 287mm x 194mm |
| Bulkhead Features | High ambient temperature option available. Group IIC hazardous area class as standard Heavy duty construction Glass colouring available |

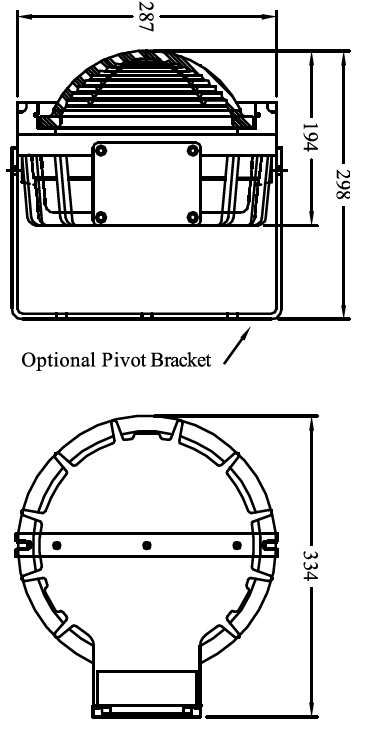

Zone 1 Hazardous Area Bulkhead Light Fitting ATEX Ex de- Petrel 621 – Dimensions
Ordering Information
621 IIC Bulkhead Fittings
| Part Number | Light Description | Light Source | Power Consumption |
| 621C/Halogen/Lamps/Wattage | Halogen version | Halogen / Twin Halogen | Halogen 1 x 70watt, 2 x 70watt |
| 621C/70W/SON-E/240/50 | 70W SON-E | SON – Elliptical | 70 Watt |
| 621/C/SL/25 | 25W SL | SL | 25 Watt |
| 621/C/PLCE/20 | 20W PLCE | 20W PLCE compact lamp | 20 Watt |
621 IIC High Temperature Bulkhead Fittings
| Part Number | Light Description | Light Source | Power Consumption |
| 620C/Halogen/Lamps/Wattage | Halogen version | Halogen/Twin Halogen | Halogen. 1 x 70 Watt 2 x 70 Watt |
| 621/C/70W/SON-E/240/50 | 70W SON-E | SON-Elliptical | 70 Watt SON-E |
Zone 1
T&D distribute an extensive range of Zone 1 Hazardous Area Equipment including plugs/sockets, junction boxes/enclosures, isolators and control panels with ATEX certification for both Zone 1 and Zone 2 potentially explosive atmospheres.
Zone 1 Hazardous Area Bulkhead Light Fitting ATEX Ex de – Petrel 621 Coloured Glass Options
Zone 1: Petrel Bulkhead, Fluorescent Fitting, Wellglass, Floodlights & LED Luminaires – all ATEX Certified for hazardous area Zone 1 lighting.
