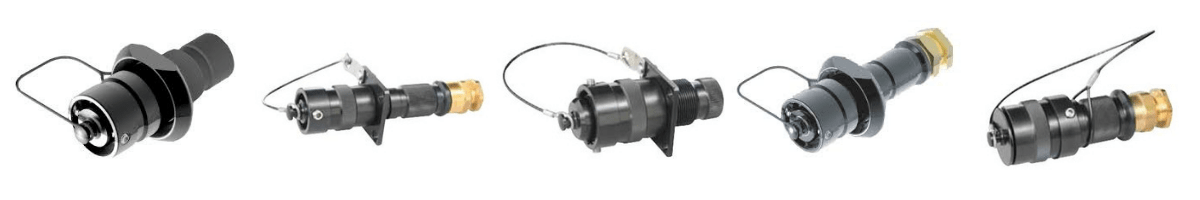

The Amphe-EX range of hazardous area connectors suitable for explosive atmosphere applications are manufactured by Amphenol – several connector shell variations are available for power and signal applications in Zoned hazardous areas and potentially explosive atmospheres.

Connector Shell Size/ArrangementService RatingTotal ContactsContact Size
22D20161212 (coax)10 (power)8 (coax)8†† (Twinax)
9-35M66
9-94M22
9-98I33
11-2I22
11-5I55
11-35M1313
11-98I66
11-99I77
13-4I44
13-8I88
13-13I, Fibre Optic42*2
13-35M2222
13-98I1010
13-71I22
15-2I22
15-5II55
15-15I15141
15-18I1818
15-19I1919
15-35M3737
15-97I1284
15-ACM26242
17-2M39381
17-6I66
17-8II88
17-22NA422
17-26I2626
17-31M194114
17-35M5555
17-99I23212
19-11II1111
19-31M151212
19-32I3232
19-35M6666
19-RJCAT 5/6
21-11I1111
21-16II1616
21-35M7979
21-39I39372
21-41I4141
21-75M42

STANDARD CONTACTS & SEALING PLUGS FOR AMPHE-EX SERIES

Connector ContactsSealing Plugs
Contact SizePin Part NumberSocket Part NumberContact SizeProprietary Number
8 (Coax)21-33102-2121-33101-218 (Coax)10-482099-8
8 (Twinax)21-33190-52921-33190-5308 (Twinax)T3-4008-59P
10 (Power)10-597448-10510-597449-10510 (Power)10-576225
1210-597448-12510-597449-1251210-405996-121
1610-597448-16510-597449-1651610-405996-161
2010-597448-20510-597449-2052010-405996-201
22D10-597448-72510-597449-45222D10-405996-221



The above Amphenol part numbers include standard 500 cycle finish designation – gold plating over suitable underplate in accordance with MIL-C-39029.
