ATEX 240V Induction Drum Heater – Thermosafe Type A

ATEX Induction Drum Heater – Thermosafe Type A

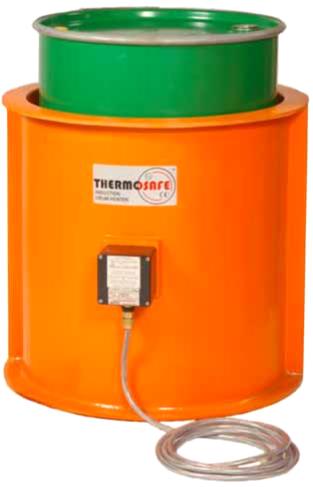

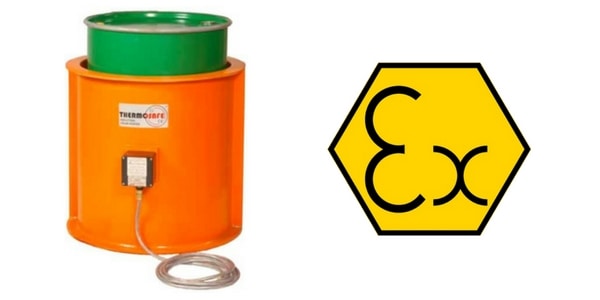

The Thermosafe Type A ATEX induction drum heater is ideal for drum heating applications within Zone 1 & Zone 2 hazardous area applications for 205 litre steel drums.

The Thermosafe Type A uses induction heating technology to heat up the drum container directly and uniformly in the drum wall by alternating magnetic fields. Unlike conventional heating methods of radiation or convection there are no hot elements so the Thermosafe Type A heater remains much cooler than the drum being heated ensuring a high level of safety.

The induction drum heater coil is wholly encapsulated within a glass reinforced resin cylinder which is designed specifically to be suitable for use within chemical plants.

Typical heat up times of an organic liquid can be around 15ºC per hour without hot spots along the drum wall which could result in product degradation. The Thermosafe Type A is ideal for clean environments and has an Ingress Protection rating to IP66 with simple, smooth surfaces and no moving parts allowing it to be hosed down even during use if required.

The ATEX induction drum heater ensures safe operating conditions are maintained even in the presence of potentially explosive gases and no transformers are required as the Thermosafe Type A operates using standard AC supply voltages up to 240V.

Thermosafe Type A HAZARDOUS AREA ATEX Induction Drum Heater CERTIFICATION

Hazardous Area Drum Heating For Zone 1 Zone 2 Hazardous Areas

Hazardous Area Induction Drum Heater For Zone 1 Zone 2 Hazardous Areas

Certification: ATEX Certified II 2GD Exe II 170ºC (T3) Ex tD II A21 T 170ºC Zone 1 & Zone 2
Class II appliance
EN 60079-0, EN 60079-7, EN61241-0, EN61241-1
Sira 08ATEX3101X
IECEx Certified SIR 08.0037X
Certified to Increased Safety Exe

ATEX Induction Drum Heater – Thermosafe Type A

Nominal Drum Wall Temperature at 20ºC Ambient	Nominal Supply Voltage 50/60Hz Single Phase (Volts)	Temperature Classification
Nominal Drum Wall Temperature at 20ºC Ambient	Nominal Supply Voltage 50/60Hz Single Phase (Volts)	Gases, Vapours & Mists	Dusts
123	240	T3 170ºC	T170ºC
120	231	T3 165ºC	T165ºC
115	223	T3 160ºC	T160ºC
110	216	T3 150ºC	T150ºC
105	208	T3 145ºC	T145ºC
100	199	T3 140ºC	T140ºC
95	190	T4	T135ºC
90	180	T4 125ºC	T125ºC
85	170	T4 120ºC	T120ºC
80	161	T4 115ºC	T115ºC
70	142	T4 105ºC	T105ºC
60	126	T5 95ºC	T95ºC
55	119	T5 90ºC	T90ºC
50	113	T6	T85ºC
40	102	T6 75ºC	T75ºC

Thermosafe Type A HAZARDOUS AREA ATEX Induction DRUM HEATer – Technical Specification

Voltage	Single Phase up to 240V, 50Hz AC
Current / Power Consumption	Switch On – 21A, 2750W Running – 18A, 2250W (Note Inductive Power Factor)
Overall Diameter	743mm
Internal Diameter	613mm
Overall Height	711mm
Weight	48kg
Ingress Protection	IP66
