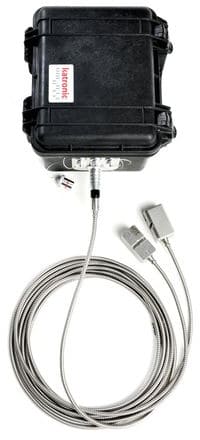

Katronic’s KATflow 210 is a portable flowmeter which utilises ultrasonic technology to measure the flow rate of liquids within pipes without entering the pipe. The KATflow 210 has advanced battery technology and durable waterproof housing allowing the flowmeter to be used for long term installation in remote areas where power is limited and the area may be subject to harsh environmental conditions.

KATflow 210 flowmeters are suitable for pipe diameters ranging from 25mm up to 2,500mm and have an integrated IP67 portabe enclosure and has a selectable three-line LCD display and full keypad.

Stainless steel sensors, cables and connectors are supplied as standard for temperature ranges from -30ºC to +250ºC and a large data logger and software are also supplied for sampling and data transfer.

Katronic KATflow 210 Ultrasonic Clamp-On Flowmeter (Portable)

Katronic KATflow 210 Ultrasonic Clamp-On Flowmeter (Portable)

Katronic KATflow 210 Ultrasonic Clamp-On Flowmeter (Portable) – Features

Katronic KATflow 210 Flow Meter

Katronic KATflow 210 Flow Meter

  • Pipe diameter range 25mm to 2,500mm
  • Temperature range for sensors – -30ºC to +250ºC (-22ºF to +482ºF)
  • Weight 6kg
  • Rugged integrated IP67 enclosure portable design
  • Selectable three-line LCD display and full keypad
  • Battery life up to 100 days with rapid charging
  • Three different operating modes to maximise battery life
  • Process output options including current, open-collector, relay
  • Compact housing 260mm (h) x 280mm (w) x 200mm (d)
  • IP68 stainless steel sensors, cable and connectors as standard
  • Innovative installation wizard for quick and intuitive programming
  • Large data logger and software for sampling and data transfer
  • Optional – Wireless data transmission
  • Optional – KATdata+ software for data evaluation
  • Optional – Optional pipe wall thickness gauge

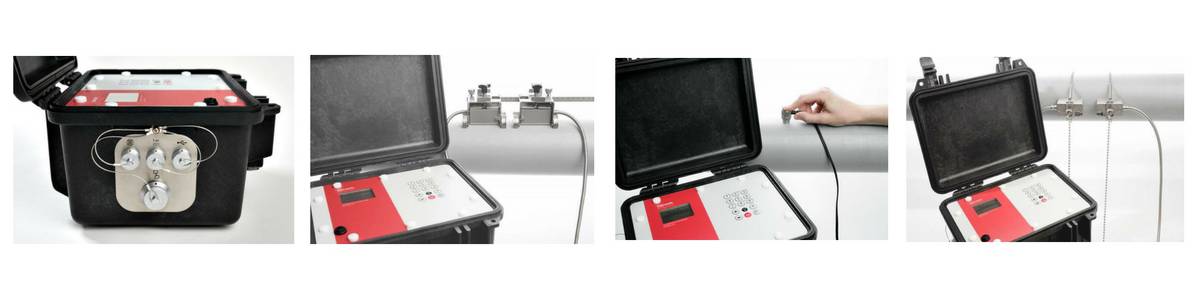

Katronic KATflow 210 Ultrasonic Clamp-On Flowmeter (Portable) - In Operation

Katronic KATflow 210 Ultrasonic Clamp-On Flowmeter (Portable) – In Operation

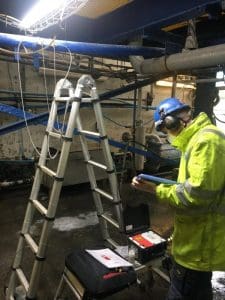

The KATflow 210 is an ideal flowmeter solution for applications including long term leakage surveys, metering in pits, wells and areas where flooding is likely, in-line flowmeter inspection verification, metering of pipes in exposed locations, temporary replacement of conventional in-line flowmeters and more.

Katronic KATflow 210 Ultrasonic Clamp-On Flowmeter (Portable) – Technical Specification

Flowmeter Performance
Flowmeter Measuring Principle Ultrasonic transit time difference
Flow Velocity Range ±0.01 to 25m/s
Resolution 0.25mm/s
Repeatability 0.15% of measured value, ±0.015m/s
Accuracy Volume Flow: ±1 to 3% of measured value depending on application
±0.5% of measured value with process calibration
Flow Velocity (Mean): ±0.5% of measured value
Turn Down Ratio 1/100 (Equivalent to 0.25 to 25m/s)
Measurement Rate 100 Hz (Standard)
Response Time 1s
Damping of Display Value 0 to 99s (Selectable by user)
Gaseous and Solid Content of Liquid Media <10% of volume
General
Enclosure Type Portable
Degree of Protection IP67 according to EN 60529
Operating Temperature -10 to +60ºC (+14 to +140ºF)
Housing Material Polyproylene Copolymer
Measurement Channels 1 Standard (2 On Request)
Calculation Functions Average, Difference, Sum, Maximum (Dual Channel Use Only)
Power Supply 1, 2 or 3 x LiFePo4 12.4AH
Power Adapter: 100 to 240V AC input, 9V DC output
Operating Time 1 Battery Pack – Up to 7 days continuous operation, 30 days in saver mode
2 Battery Packs – Up to 14 days continuous operation, 60 days in saver mode
3 Battery Packs – Up to 21 days continuous operation, 100 days in saver mode
(Based on normal operating conditions, with no process outputs enabled)
Display LCD graphic display, 128 x 64 dots, backlit
Dimensions 260mm (H) x 280mm (W) x 200mm (D)
Weight Approx 6kg
Power Consumption <3W
Operating Languages English, French, German, Dutch, Spanish, Italian, Russian, Czech, Turkish, Romanian (Others on request)
Communication
Type USB cable
Transmitted Data Measured and totalised value, parameter set and configuration, logged data
Internal Data Logger
Storage Capacity Approx 30,000 measurements (each comprising up to 10 selectable measurement units), logger size 5MB
Approx 1000,000 measurements (each comprising up to 10 selectable measurement units), logger size 16MB
Logged Data All measured and totalised values, parameter sets
KATdata+ Software
Functionality Download of measured values/parameter sets, graphical presentation, list format, export to third party software, online transfer of measured data
Operating Systems Windows 8, 7, Vista, XP, NT, 2000
Linux
Quantity and Units of Measurement
Volumetric Flow Rate m³/h, m³/min, m³/s, l/h, l/min, l/s
USgal/h (US gallons per hour), USgal/min, USgal/s
bbl/d (Barrels per day), bbl/h, bbl/min
Flow Velocity m/s, ft/s, inch/s
Mass Flow Rate g/s, t/h, kg/h, kg/min
Volume m³, l, gal (US gallons), bbl
Mass g, kg, t
Heat Flow W, kW, MW (with heat quantity measurement option)
Heat Quantity J, kJ, kWh (with heat quantity measurement option)
Temperature ºC (with heat quantity measurement option)
Process Outputs (Galvanically Isolated)
Current 0/4 to 20mA active (R Load < 500Ω), 16 bit resolution, U = 30V, Accuracy 0.1%
Digital Open Collector Value: 0.01 to 1000/unit, width: 1 to 990ms
U = 24V, I max = 4mA
Digital Relay Form A SPST (NO), U = 48V, I max = 250mA

Visit Katronic KATflow 170 for hazardous area flowmeters with ATEX Certification for metering the flow in Zone 1 and Zone 2 explosive atmospheres.
