Ex d Enclosures
Junction Boxes & Enclosures Exd Flameproof Explosion Protection
Explosion Protection Group IIC Hazardous Areas

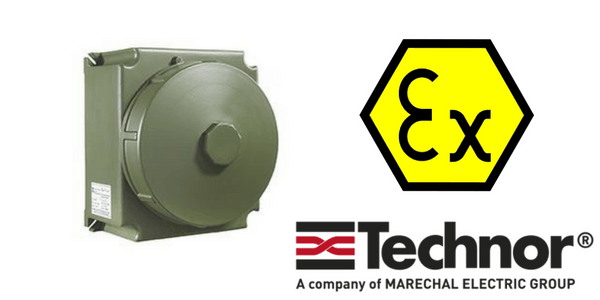

Technor GUB Aluminium Enclosure is an Ex d enclosure which offers Ex-d IIC mode of protection – the flameproof enclosures are suitable for use in hazardous areas of industrial plants for indoor and outdoor applications.
Technor GUB enclosures are classified to international hazardous area classifications with ATEX, IECex and TRCU certification, with ingress protection IP66 and an operational ambient temperature range of -60°C to +60°C.
Ex d enclosures are used for the following typical applications: push button stations, instrument housing, lighting distribution panels, power distribution panels, motor protection and panels for trace heating systems.
Technor GUB Aluminium Enclosure – Technical Features
| Material | Aluminium with low content of copper Stainless Steel AISI 316 L (upon request) The sides A, B & C can be increased or decreased by 10% |
| IP Rating | IP66 |
| Ambient Temperature Range | -50°C to +55°C (ATEX) -60ºC to +60ºC (IECEx) |
| Approvals | Certified 00ATEX0033X TR CU IECEx INE 15.0003 |
| Surface Treatment | Green colour polyurethane painting cycle RAL6003 (other colour available upon request) |
| Entries | Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125 |
| Hardware & Screws | AISI316 Stainless steel external screws |
| Standard Certificate Label | Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory. |
| Accessories Available Upon Request | Drain/breather valve Internal anticondensate painting Traffolyte/Stainless steel certificate label Stainless steel construction |
Technor GUB enclosures – Aluminium
The following table enables the correct specification and selection of Exd Flameproof Enclosures manufactured from aluminium from the Technor GUB range:
| Technor Part Number | Dimensions | Weight (kg) | ||||||||||
| A | B | C | D | E | F | G | ØH | I | L | M | ||
| GUB-01 | 169 | 169 | 152 | 139 | 139 | 62 | 105 | 125 | 150 | 150 | 7 | 3.60 |
| GUB-02 | 190 | 190 | 164 | 160 | 160 | 63 | 113 | 144 | 170 | 170 | 8 | 4.70 |
| GUB-03 | 210 | 210 | 179 | 180 | 180 | 78 | 127 | 167 | 190 | 190 | 8 | 6.00 |
| GUB-04 | 232 | 281 | 206 | 202 | 251 | 97 | 152 | 183 | 210 | 260 | 8 | 8.90 |
| GUB-05 | 257 | 298 | 222 | 227 | 268 | 106 | 163 | 206 | 235 | 275 | 8 | 11.90 |
| GUB-06 | 295 | 330 | 248 | 259 | 295 | 140 | 203 | 242 | 270 | 305 | 10 | 15.80 |

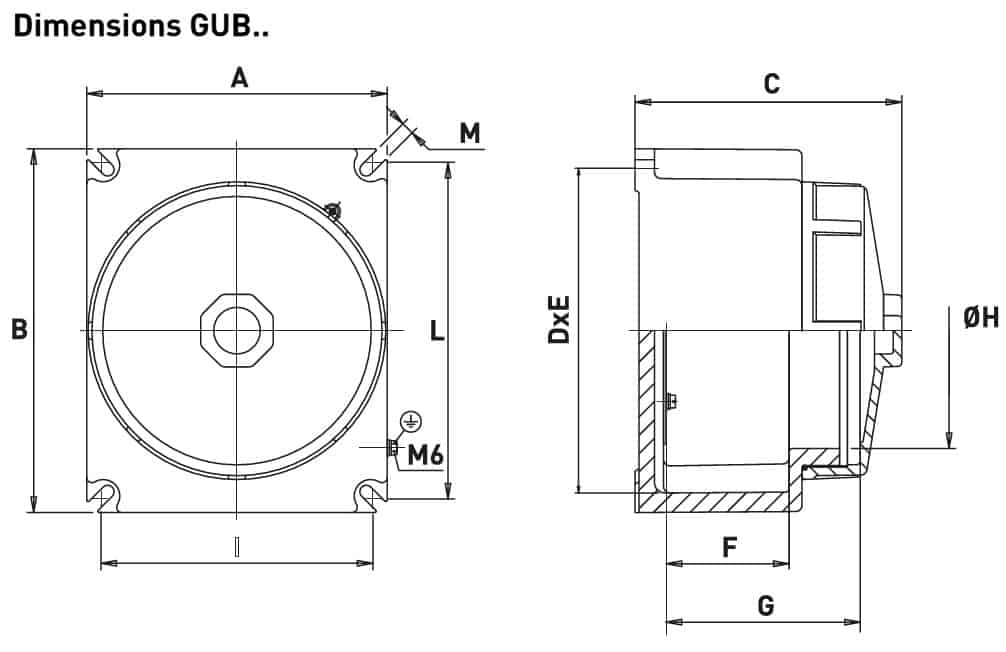

Explosion Proof Hazardous Area Technor GUB Aluminium Enclosure – Dimensions
HAZARDOUS AREA CERTIFICATION & MARKING FOR ENCLOSURES
II 2 GD
- Ex d IIC T(*) Gb
- Ex tb IIIC T(*) Db IP66
- * T6/T85°C, T5/T100°C, T4/T135°C
II 2(1) GD
- Ex d [ia Ga] IIC T6 Gb
- Ex tb [ia Da] IIIC T85°C Db IP66
II 2(2) GD
- Ex d [ib] IIC T6 Gb
- Ex tb [ib] IIIC T85°C Db IP66
under IEC Ex directive, junction boxes and enclosures are suitable for IIC group of gases/dusts only
