Zone 1 Wellglass Hazardous Area Lighting ATEX Ex de – Petrel 610
Zone 1 Wellglass Hazardous Area Light Fitting ATEX Ex de – Petrel 610
Zone 1 Wellglass Hazardous Area Lighting
ATEX Classification – Ex ed II 2GD IIC T3 – T4 Protection IP 66
Petrel 610 light fittings are heavy duty wellglasses suitable for Zone 1 hazardous area lighting applications and can be supplied for use as a wellglass or indicator beacon.
Zone 1 wellglass hazardous area light fittings are available with a wide variety of lamp options and high temperature options can be supplied on request. Rotating beacon and flashing xenon options are available for use as an indicator beacon.
➡ See Zone 2 Hazardous Area Lighting for fluorescent, LED, floodlight and bulkhead type light fittings for potentially explosive atmospheres with ATEX certification.
➡ View full range of hazardous area lighting.
Zone 1 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations
ZONE 1 WellGlass
ATEX – Zone 1 Wellglass
hazardous area & atex Approved
- Certification and Hazardous Area Approval Certification Code: Ex ed II 2GD IIC T3 – T4
- Certification Number: SIRA 00 ATEX 1048. IECEx SIR 09.0027
- Certification Standard: EN 60079, EN 61241, IEC 60079, IEC 61241
- Protection: IP 66
Zone 1 WellGlass Light Fitting ATEX
Benefits & Options
- Highly robust marine grade construction wellglass fitting
Hazardous Area Zone 1 Lighting Stockists & Suppliers Shipping Worldwide
- Integral terminal chamber for low installation costs
- External earthing
- Group IIC – wellglass suitable for nearly all Zone 1 gas environments as standard
- High ambient temperature versions up to 70°C
- Coloured body and glass options
- Internal or external reflectors

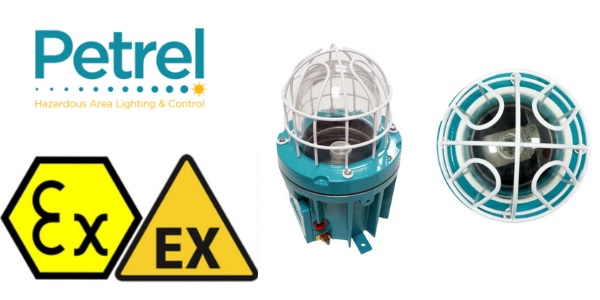

- Wire guard available
- Range of lamp sources available suitable for Zone 1 wellglass
- Range of fresnel colours / glass options
Zone 1
T&D distribute an extensive range of Zone 1 Hazardous Area Equipment including plugs/sockets, junction boxes/enclosures, isolators and control panels with ATEX certification for both Zone 1 and Zone 2 potentially explosive atmospheres.

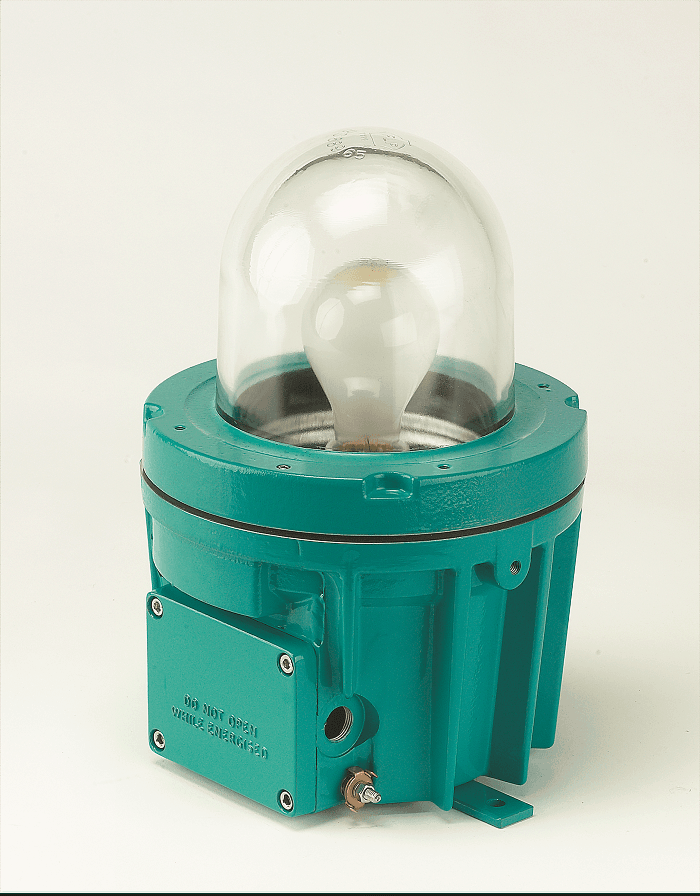

Zone 1 Wellglass – Hazardous Area Light Fitting – Petrel 610
ZONE 1 WellGlass
Light Fitting ATEX certified
PETREL 610 Technical Data
| Supply Voltage | Beacons 230V, Warning lights 24V, 110-120V Check for alternative voltages |
| Operating Temperature | -20ºC to +70ºC (Lamp dependant) |
| Control Gear (When Fitted) | Ballast, ignitor and capacitor can be fitted within the luminaire |
| Wellglass Lamp Options | Zone 1 certified with elliptical lamps (lamps not provided) 50W, 70W, 110W SON-E and 70W SON-R 50W, 80W, 125W HPMV/MBF 25W SL or 20W PLCE 150W GLS with ES (E27) lamp holder. BC holder also available |
| Cable Entries | 2 x M20 – ISO (1 plugged as standard). Other threads available |
| Terminals | 4 (4mm) wire and earth with looping facility. Cable crimping required at installation when looping |
| Mounting Facility | Back mounted fixing strap |
| Access | Terminals accessed via terminal cover retained by cap screws. Lamp and gear accessed via removable glass dome |
| Material | Corrosion resistant marine grade aluminium body and bezel. Toughened Borosilicate glass dome |
| Finish | 2 Pack epoxy paint on primed surface. Standard colour – Aqua. Additional costs for non standard colours |
| Wellglass Accessories | Internal or external reflector Pivot bracket for directional control Pendant mount Wire guard |
| Weight | 9kg to 12kg lamp dependant |
| Dimensions | 249mm x 328mm |
| Features | 70ºC ambient option available. Group IIC hazardous area as standard Heavy duty construction |
Zone 1 Hazardous Area Well Glass Light Fitting ATEX Ex de – Petrel 610 – Dimensions
Ordering Information
| Part Number | Description | Light Source | Powe Consumption |
| 610C/70WSON-E/240/50 | 610C/70WSON-E/240/50 | SON – Elliptical | 70 Watt SON-E |
| 610C/110WSON-E/240/50 | 610C/110WSON-E/240/50 | SON – Elliptical | 110 Watt SON-E |
| 610C/105W/HAL/240/50 | 610C/105W/HAL/240/50 | 105W Halogen Elliptical | 105W (Max) |
| 610C/20W/PLCE/240/50 | 610C/20W/PLCE/240/50 | PLCE | 20W (Max) |
| 610C/XEN/VOLTAGE/COLOUR | 610C/XEN/VOLTAGE/COLOUR | Xenon Flash | Various |

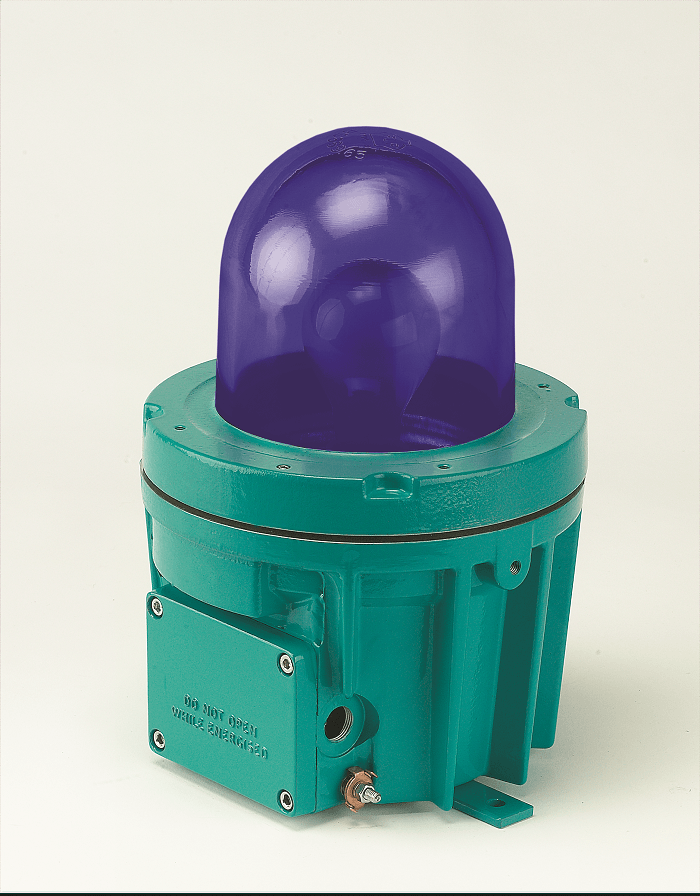

Zone 1 Wellglass – Hazardous Area Light Fitting ATEX Ex de – Petrel 610 – Blue Lens
