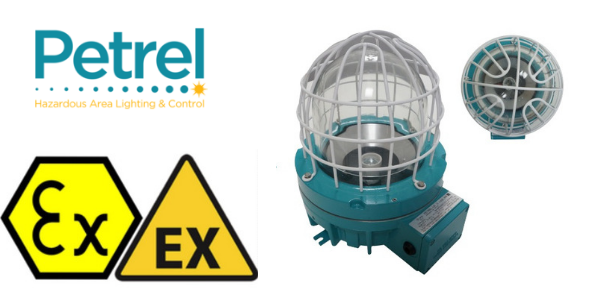

Zone 1 Wellglass – Hazardous Area Lighting
ATEX Classification – Ex de II 2GD IIC T2 – T6 Protection IP 66
Petrel 620 wellglass light fittings are heavy duty wellglasses suitable for Zone 1 hazardous area lighting applications and can be supplied with a range of light sources from GLS to SON and long life QL lamps with wattages up to 250W. Halogen lamps are also available to replace incandescent lamps.
Hazardous area Zone 1 wellglass light fittings feature an integral terminal chamber, external earthing and fixed or pivoting mounting brackets. Optionally the Petrel 620 wellglass can be supplied with internal or external reflectors or coloured glass versions – Zone 2 wellglass versions also available.
➡ See Zone 2 Hazardous Area Lighting for fluorescent, LED, floodlight and bulkhead type light fittings for potentially explosive atmospheres with ATEX certification.
➡ View full range of hazardous area lighting.
Zone 1 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations
ZONE 1 Well Glass
ATEX – Zone 1 Wellglass
Hazardous area & atex approved
- Certification and Hazardous Area Approval Certification Code: Ex de 2 GD IIC T3, T4, T5 dependent on lamp
- Certification Number: SIRA 00 ATEX 1047. IECEx SIR 09.0028
- Certification Standard: EN 60079, EN 61241, IEC 60079, IEC 61241
- Protection: IP 66
Zone 1 WellGlass Lighting Hazardous area
Benefits & Options
- Group IIC hazardous areas – suitable for all Zone 1 gas environments
- Virtually indestructible marine grade construction wellglass
- Low installation costs with integral ‘e’ terminal chamber (inexpensive glanding, loop in loop out cabling)
Hazardous Area Zone 1 Lighting Stockists & Suppliers Shipping Worldwide
- 240v 50Hz check for alternative voltages
- -20°C to +40°C standard supply For operation up to 110°C consult sales office prior to ordering
- Zone 1 hazardous area certified with elliptical lamps (lamps not provided) Petrel 150w SON-E and 250w SON-I 125w and 250w HPMV/MBF Up to 300w GLS, 25w SL or 20w PLCE, Single, twin and triple halogen versions
- Coloured glass
- Internal or external reflectors
- High ambient temperature versions
- Wire guard
- Halogen lamp versions to replace obsolete incandescent lamp versions
- Rapid relamping and gear access
- Large lamp option range for Zone 1 hazardous area lighting
Zone 1 Wellglass – Hazardous Area Light Fitting – Petrel 620
ZONE 1 WellGlass Light Fitting
PETREL 620 Technical Data
| Supply Voltage | 240V 50Hz. Check for alternative voltages |
| Operating Temperature | -20ºC to +40ºC standard supply. For operation at -45ºC or up to 90ºC consult sales office prior to ordering |
| Control Gear (When Fitted) | Ballast, ignitor and capacitor can be fitted within the luminaire |
| Wellglass Lamp Options | Certified with elliptical lamps (lamps not provided) 150W SON-E and 250W SON-I 125W and 250W HPMV/MBF 2 x 105W, 1 x 70W, 2 x 70W and 3 x 70W Halogen GLS Up to 300W GLS, 25W SL or PLCE |
| Cable Entries | 2 x M20 – ISO (1 plugged as standard). Other threads available |
| Terminals | 4 (4mm) wire and earth with looping facility. Cable crimping required at installation when looping |
| Mounting Facility | Back mounted fixing strap |
| Access | Terminals accessed via terminal cover retained by cap screws. Lamp and gear accessed via removable glass dome |
| Material | Corrosion resistant marine grade aluminium body and bezel. Toughened Borosilicate glass dome |
| Finish | 2 Pack epoxy paint on primed surface. Standard colour wellglass – Aqua. Additional costs for non standard colours |
| Accessories | Internal or external reflector Pivot bracket for directional control Pendant mount Wire guard |
| Weight | 12.5kg to 16kg lamp dependant |
| Wellglass Features | High ambient temperature option available. IIC as standard Heavy duty construction Glass colouring available |

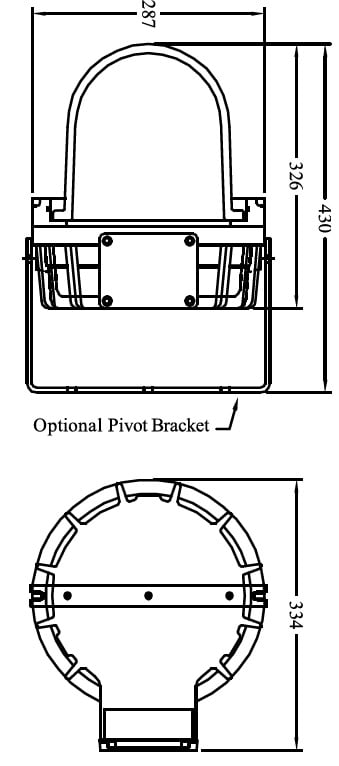

Zone 1 Hazardous Area Well Glass Light Fitting ATEX Ex de – Petrel 620 – Dimensions
Ordering Information
620 IIC Wellglasses
| Part Number | Light Description | Light Source | Power Consumption |
| 620C/Halogen/Lamps/Wattage | Halogen version | Halogen | Halogen GLS version. 1 x 70W. 2 x 70W. 3 x 70W. 1 x 105W. 2 x 105W |
| 620C/Halogen/H1/24V DC | Halogen version | Halogen | Halogen H1 version 2x70W |
| 620C/150W/SON-E/240/50 | 150W SON-E | SON-Elliptical | 150 Watt SON-E |
| 620C/250W/SON-I/240/50 | 250W SON-E | SON-Elliptical | 250 Watt SON-E |
| 620C/85W/QL | 85w QL induction lamp | QL | 85 Watt QL |
| Part Number | Light Description | Light Source | Power Consumption |
| 620C/Halogen/H1/24V DC | Halogen version | Halogen/Twin Halogen | Halogen GLS version. 1 x 70W. 2 x 70W. 3 x 70W. 1 x 105W. 2 x 105W |
| 620C/Halogen/H1/24V DC | Halogen version | Halogen | Halogen H1 version 2x70W |
| 620C/150W/SON-E/240/50 | 150W SON-E | SON-Elliptical | 150 Watt SON-E |
| 620C/250W/SON-E/240/50 | 250W SON-E | SON-Elliptical | 250 Watt SON-E |
Zone 1
T&D distribute an extensive range of Zone 1 Hazardous Area Equipment including plugs/sockets, junction boxes/enclosures, isolators and control panels with ATEX certification for both Zone 1 and Zone 2 potentially explosive atmospheres.

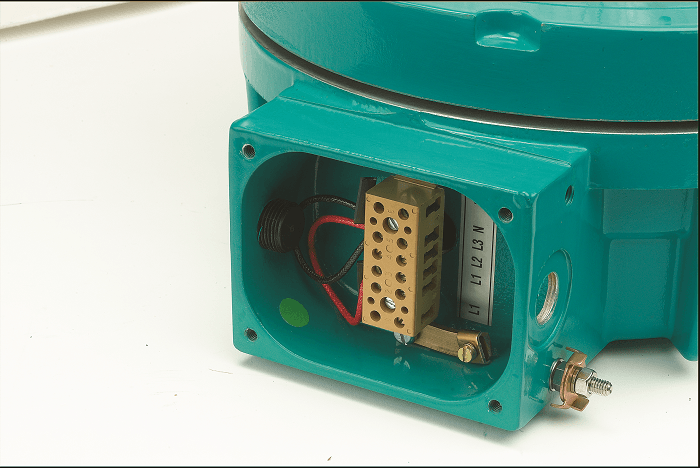

Zone 1 Wellglass – Hazardous Area Light Fitting ATEX Ex de – Petrel 620 Terminal Block Access

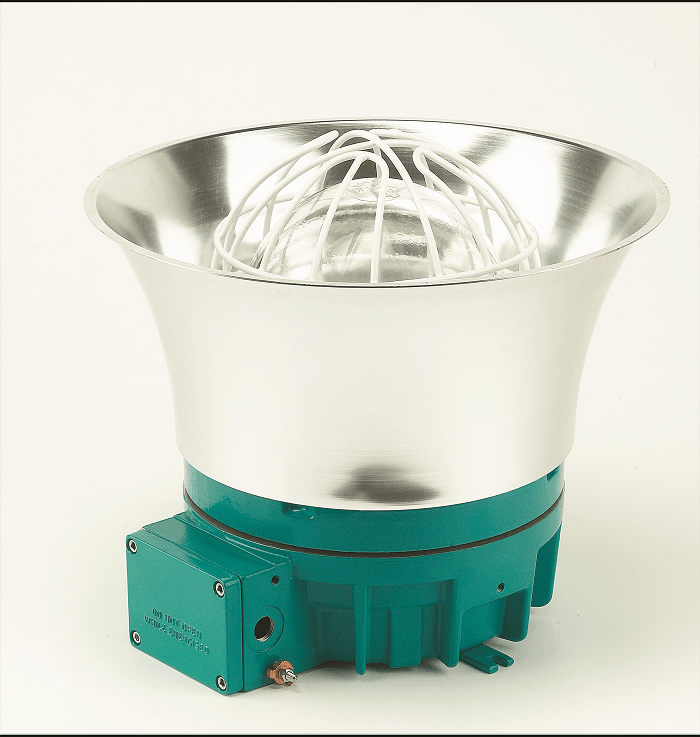

Zone 1 Wellglass – Hazardous Area Light Fitting ATEX Ex de – Petrel 620 External Reflector

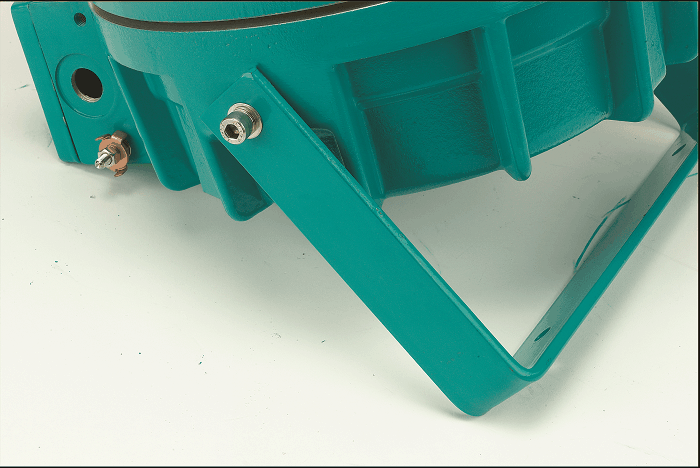

Zone 1 Wellglass – Hazardous Area Light Fitting ATEX Ex de – Petrel 620 Swivel Stirrup Mounting
