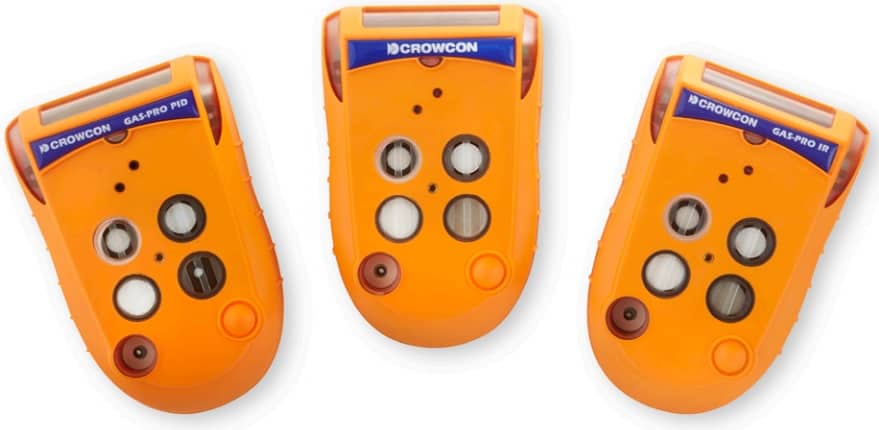

Crowcon Gas-Pro IR Gas Detector – Methane, Pentane, Propane Gas Detection
Crowcon Gas-Pro ir Gas Detector
Single Gas & Multi-gas Detectors | Portable Gas Detection & Safety | Industrial Locations & Hazardous Area Zones
Gas-Pro IR portable gas detector, manufactured by Crowcon,  is suitable for pentane, propane or methane gas detection using infrared sensor technology and is ideal for use in the offshore oil and gas industry.
The Crowcon Gas-Pro IR is designed specifically to detect potentially explosive gases where original catalytic sensors (known as pellistor) would have difficulty, particularly in environments where the oxygen level is low.
Crowcon Gas-Pro IR is part of the Gas-Pro gas detection range giving the range greater flexibility when it comes to selecting sensors. The 5-gas multi-gas detector uses infrared technology giving greater reliability and the ability to measure gas in two different wavelengths.
The Crowcon Gas-Pro IR is a safer and more cost effective solution as pellistor replacements are not required when the portable gas detector is used in harsh environments.
C-Test bump solution with configuration update keeps the Crowcon detectors correctly configured to ensure the product is consistently up-to-date without the need for a service or technician team so testing and calibration is very easy.
The Crowcon Gas-Pro IR gas detector is also water and dust resistant to IP65 and IP67.
âž¡ Read How To Correctly Sample Gases Using Pumped Instruments
Crowcon Gas-Pro IR Key Features
Should you require a quotation, check stock or technical customer service about the Crowcon Gas-Pro IR gas detector please do not hesitate to contact us.
- Simple Operation –Â The Crowcon Gas-Pro IR is operated by a single button for all functions (can be used whilst wearing gloves) and a top mounted display makes it easier to read at a glance
- Reliability –Â The lithium-ion battery provides continuous use for 14 hours from one charge and provides a clear warning when calibration is due
- Flexible Options – The Gas-Pro IR can monitor 5 gases from a range of options and has both pumped and diffusion solutions. The device has multiple languages, has an automatic fail safe flow plate recognition and has a specific and unique Pre-Entry Check mode making pre-entry testing a lot easier
- Adaptability –Â Infrared (IR) sensor for detection of flammable gases and CO2 , which guarantees fast response and fail-safe operation. IR sensor also requires little maintenance and provides reliable protection over many years
Crowcon Gas-Pro IR Gas Detector – ideal for use in the offshore oil and gas industry
Crowcon Gas-Pro IR Bump Testing And Calibration
Routine bump testing is recommended for the range of Crowcon portable gas detectors prior to each use. Bump testing is a brief application of a gas to the sensor to invoke a prescribed reaction, ensuring the gas detector reacts as expected.
Bump testing provides a quick, easy and direct method of verifying gas detectors are performing as required and takes a lot less time than ‘zeroing’ the device.
The bump test is widely accepted as a suitable method of testing gas detection equipment.
Crowcon offer bump test solutions with I-Test and Q-test.
Crowcon Gas-Pro IR Portable Gas Detector
Product Specifications
The Crowcon range of gas detectors provide detection and level monitoring of several harmful, flammable and toxic industrial gas types. The range includes ATEX and IECEx certified detectors for safe use in potentially explosive atmospheres and hazardous area zones with hydrocarbon gas detection capability – Thorne & Derrick distribute economical, reliable and innovative gas detection equipment.
- Also see more Innovations in hazardous area equipment
| Size | 43 x 130 x 84mm (1.7 x 5.1 x 3.3ins) |
| Weight | 309g 4 gas (10.8oz)/ 340g pumped (11.9oz) 333g 5 gas (11.7oz)/ 362g pumped (12.7oz) |
| Alarms | Audible >95dB @ 30cm (98dB @30cm in loud mode) Visual – all angle dual red/blue LEDs Vibrating alert |
| Display | Top mount for ease of view with dual colour backlight (green/red) |
| Data logging | 125hrs at 10 second intervals (45,000 logs) |
| Event log | Alarm, over range, calibration, bump, on/off, TWA, 1000 events |
| Battery | Rechargeable Li-ion, >14 hours (13 hours pumped operation) based on CH4, O2, H2S, CO Typical charge time 7.5 hours |
| Ingress Protection Rating | Independently tested to IP65 and IP67 |
| Humidity | 10 to 95% RH+ |
| Sampling | Internal pump as option |
| Operating temperature | -20º C to +55º C (-4º F to +131º F) |
| Storage | -25º C to +65º C (-13º F to +149º F) |
| Approvals | IECEx: Ex db ia IIC T4 Gb Tamb -20ºC to +55ºC ATEX: II 2 G Ex db ia IIC T4 Gb Tamb -20ºC to +55ºC UL: Class 1 Div. 1, Groups A, B, C, D, UL 913, UL 60079-0 and UL 60079-11 INMETRO: Ex db ia IIC T4 Gb Tamb -20ºC to +55ºC Marine Equipment Directive: MED 1500009/M1 |
| Compliance | EMC FCC CFR 47 Part 15, ICES-0003 |
| Interface | Data connection for gas test solutions and direct to PC |
| Charging | Direct connection to multiregional power supply Vehicle charger adaptor Desktop cradle USB power and communications lead |

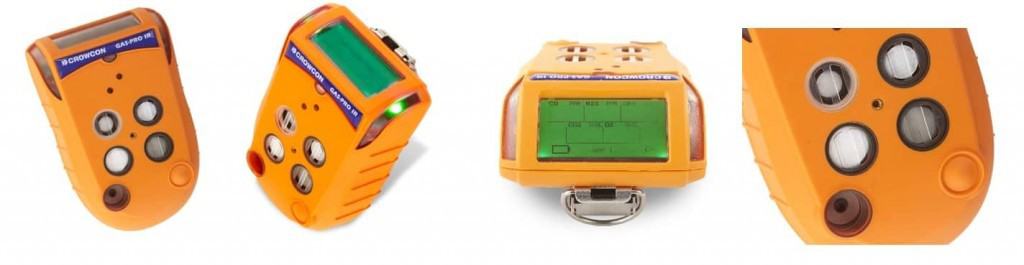

Crowcon Gas-Pro IR – Portable Gas Detector
Gases Detected & Ranges
Crowcon Gas-Pro IR measures gas levels in %LEL and has been certified for use in hazardous areas according to ATEX/IECEx and UL: Â the 5-gas detector can be used to measure gas in oxygen depleted applications such as fuel storage tanks, due to flushing with inert gas prior to maintenance or which still contain high levels of fuel vapour.
T&D provide competitive prices and delivery for all Crowcon Gas Detectors, including the Crowcon Gas-Pro IR.
| Gas Detection | Range | Typical Alarms | Resolution |
| Ammonia NH₃ | 0-100ppm | 25ppm |  1ppm |
| Carbon Dioxide COâ‚‚ IR | 0-5% vol | 0.5% vol. | Â 0.01% vol. |
| Carbon Monoxide CO | 0-2000ppm | 30ppm | Â 1ppm |
| Carbon Monoxide CO | 0-500ppm | 30ppm | Â 1ppm |
| CO (Hydrogen Filtered) | 0-2000ppm | 30ppm | Â 1ppm |
| Chlorine Clâ‚‚ | 0-5ppm | 0.5ppm | Â 0.1ppm |
| Carbon Monoxide Hydrogen Sulphide CO-Hâ‚‚S | H2 S 0-100ppm CO 0-500ppm |
5ppm 30ppm |
 1ppm 1ppm |
| Flammable Gas | 0-100% LEL | 20% LEL | Â 1% LEL |
| Flammable Gas  IR | 0-100% LEL | 20% LEL |  1% LEL |
| Hydrogen Sulphide Hâ‚‚S | 0-100ppm | 5ppm | 1ppm |
| Â Nitrogen Dioxide NOâ‚‚ | 0-20ppm | 1ppm | 0.5ppm |
| Oxygen Oâ‚‚ | 0-25% vol | 19%/ 23% vol. | 0.1% vol. |
| Ozone O₃ | 0-1ppm | 0.1ppm | 0.01ppm |
| Sulphur Dioxide SOâ‚‚ | 0-20ppm | 1ppm | 0.1ppm |
| Chlorine Dioxide ClOâ‚‚ | 0-1ppm | 0.1ppm | 0.1ppm |
| Nitric Oxide NO | 0-100ppm | 25ppm | 1ppm |
Crowcon Gas-Pro IR Gas Detector
Gas Detection In High Voltage Substations, SWITCHGEAR Â & Hazardous Area Battery Rooms
See how Crowcon F-Gas Detector is used in the electrical utility industry to provide safe gas detection of SF6 in high voltage substations and gas insulated switchgear.
Gas Detection In High Voltage Substations, Switchgear & Cable Chambers. Image : ABB.
 ➡  Did you know? T&D distribute Zone 1 Hazardous Area ATEX Certified Lighting, Heating, Power products – this includes hazardous area portable heaters, LED lighting, plugs and sockets, control panels, enclosures and junction boxes for Zone 1 use.
Crowcon Gas-Pro IR Portable Gas Detectors – Data Sheet
Download
