Hazardous Area Connectors | Amphe-EX Series | Standard Insert Alternate Positioning

Amphenol Hazardous Area Connectors Alternate Positioning

hazardous area Connectors

The Amphe-EX range of hazardous area connectors suitable for explosive atmosphere applications are manufactured by Amphenol – several connector shell variations are available for power and signal applications in Zoned hazardous areas and potentially explosive atmospheres.

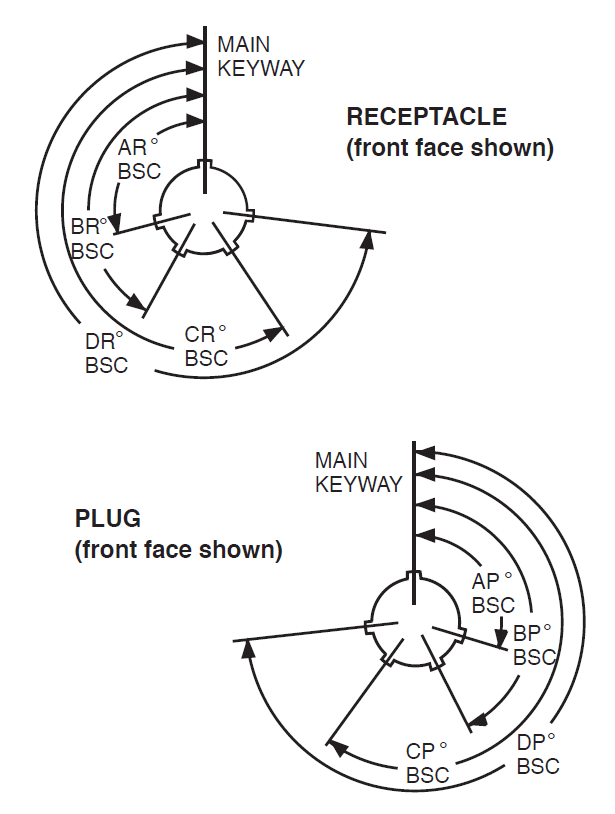

A plug or connector with a given rotation letter will mate with a receptacle with the same rotation letter. The angles for a given connector are the same whether it contains pins or sockets.

Inserts are not rotated in conjunction with the master key/keyway.

Connector Shell Size	Key & Keyway Arrangement Identification Letter	*AR or AP* BSC**	*BR or BP* BSC**	*CR or CP* BSC**	*DR or DP* BSC**
9	N 01 02 03 04 05	105 102 80 35 64 91	140 132 118 140 155 131	215 248 230 205 234 197	265 320 312 275 304 240
11, 13 and 15	N 01 02 03 04 05	95 113 90 53 119 51	141 156 145 156 146 141	208 182 195 220 176 184	236 292 252 255 298 242
17 and 19	N 01 02 03 04 05	80 135 49 66 62 79	142 170 169 140 145 153	196 200 200 200 180 197	293 310 244 257 280 272
21, 23 and 25	N 01 02 03 04 05	80 135 49 66 62 79	142 170 169 140 145 153	196 200 200 200 180 197	293 310 244 257 280 272
